Mixer : Configuring a Blank or Existing Mixer
10 - 277
Configuring a Blank or Existing Mixer
Configuration of the mixer control surface is accomplished via contextual menus. The precise options available
will depend on where you click on the mixer. If you wish to affect the entire mixer, right-click on the top bar of the
Mixer window. To change options for a Bus, right-click on a blank area of the Bus strip. Similarly, for a channel input
strip, right click on a blank area of the Strip. Right-clicking within a function block adds menu entries to the top of
the list, relevant to the specific block.
Adding Strips
Right-click anywhere on the Faders, choose Strip > Add and select the appropriate type of strip to add or right-
click anywhere on the Faders, choose Bus > Add and select the appropriate type of bus to add.
Removing Strips
To remove a given input strip, bus or group, right-click directly on it and choose Strip > Remove (Strip, Bus or
Group) as appropriate.
Mixer I/O Assignments
To or from physical I/O

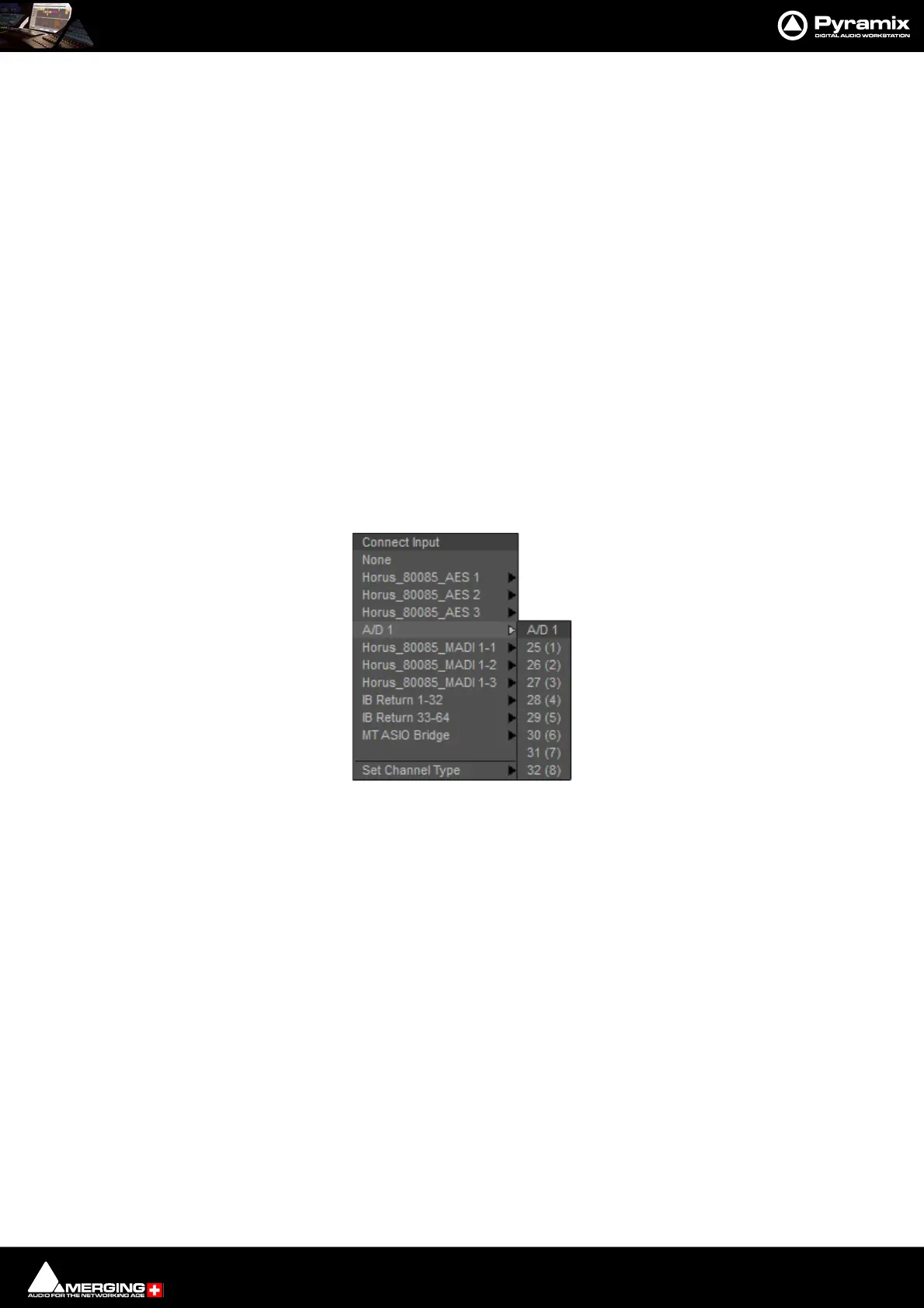

To change I/O assignments to or from physical I/O or the Internal Return Buses, click on the appropriate XLR
icon. Choose Connect Input or Connect Output from the pop-up menu and choose the desired connection.
When connecting a multichannel strip clicking on the header A/D1 in the above illustration) will connect all chan-
nels consecutively.
From Tracks
Note that several Tracks may be routed to the same mixer input strip. Tracks are assigned to mixer input strips
either automatically or manually from the Track Header. See: Track Header Panel on page 101
