Mixer : Audio Bridge
10 - 288
Secondary Audio Devices in Practice
RAVENNA Network
Background
Recorders
Secondary Audio Device
(Onboard Audio Card or USB external ASIO device)
Inputs:
Microphones
and other
recording
Sources
Outputs:
Cue sends to
artists on
stage/live
room
Monitoring Section Project Mixer
Busses
Buses
Buses
T
alkback Mic
(
s
)
Externals Inputs Stage Monitors Mic Inputs
Inputs:
Talkback Mic(s)
Outputs:
Control Room
Monitors
Pyramix Engine
MassCore
Cue Sends to Artists
Control Room Monitors

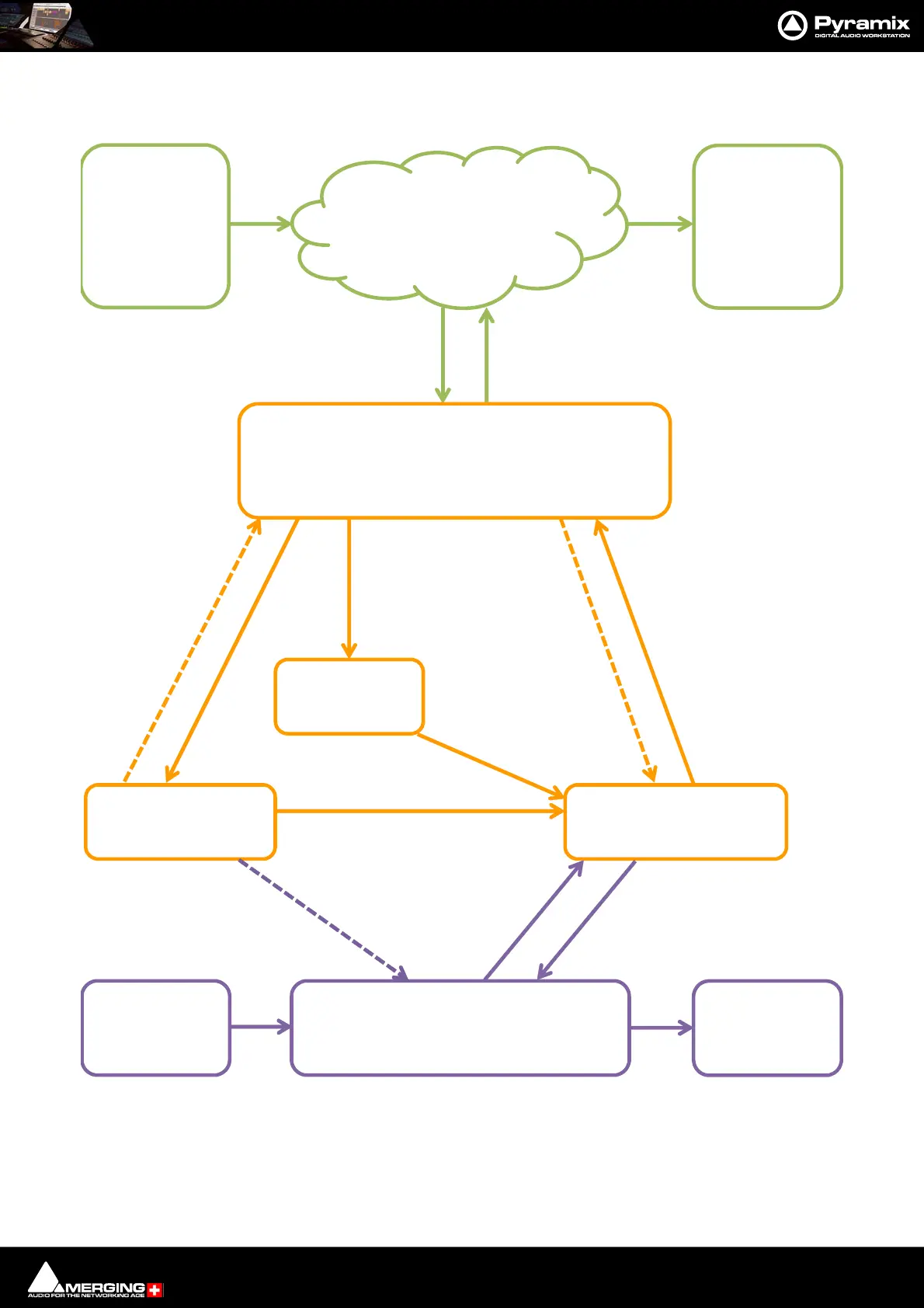

Secondary Audio Device Bridging schematic
