Scalar i6000 Installation Guide 117
7 Route the cable through the cable keepers and down the right side of the control module or expansion
module.
8 Insert the Fibre optical cable into the Fibre Channel connection on the drive.
9 Repeat Step 5
on page 116 through Step 8 on page 117 for each drive that will be installed.
The FC port and drive numbers will change according to Table 5 on page
114.

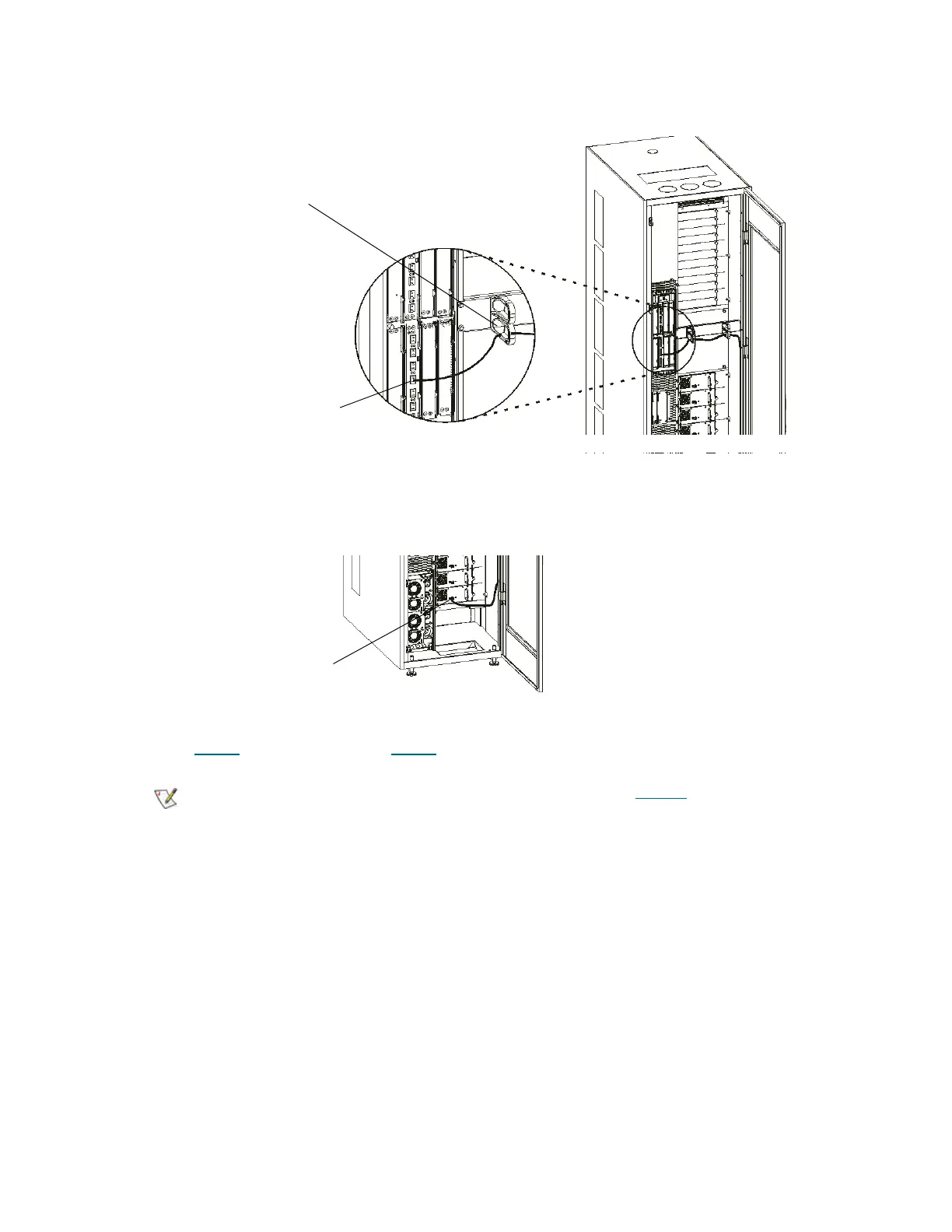

cable connected to FC 3 on
FC I/O blade in bay 3 of the
I/O management unit
Fibre optic cable routed
through cable keepers
Fibre optic cable connected
to drive in coordinate 1,1,1,1,1,1
