122 Cabling
7 Route the cable through the cable keepers and down the right side of the control module or expansion
module.
8 Insert the EEB cable into the EEB port connection on the drive.
9 Repeat Step 5
on page 121 through Step 8 on page 122 for each drive that will be installed and
connected to an EEB.
Note
The EEB port and drive numbers will change according to Table 6 on page
119.

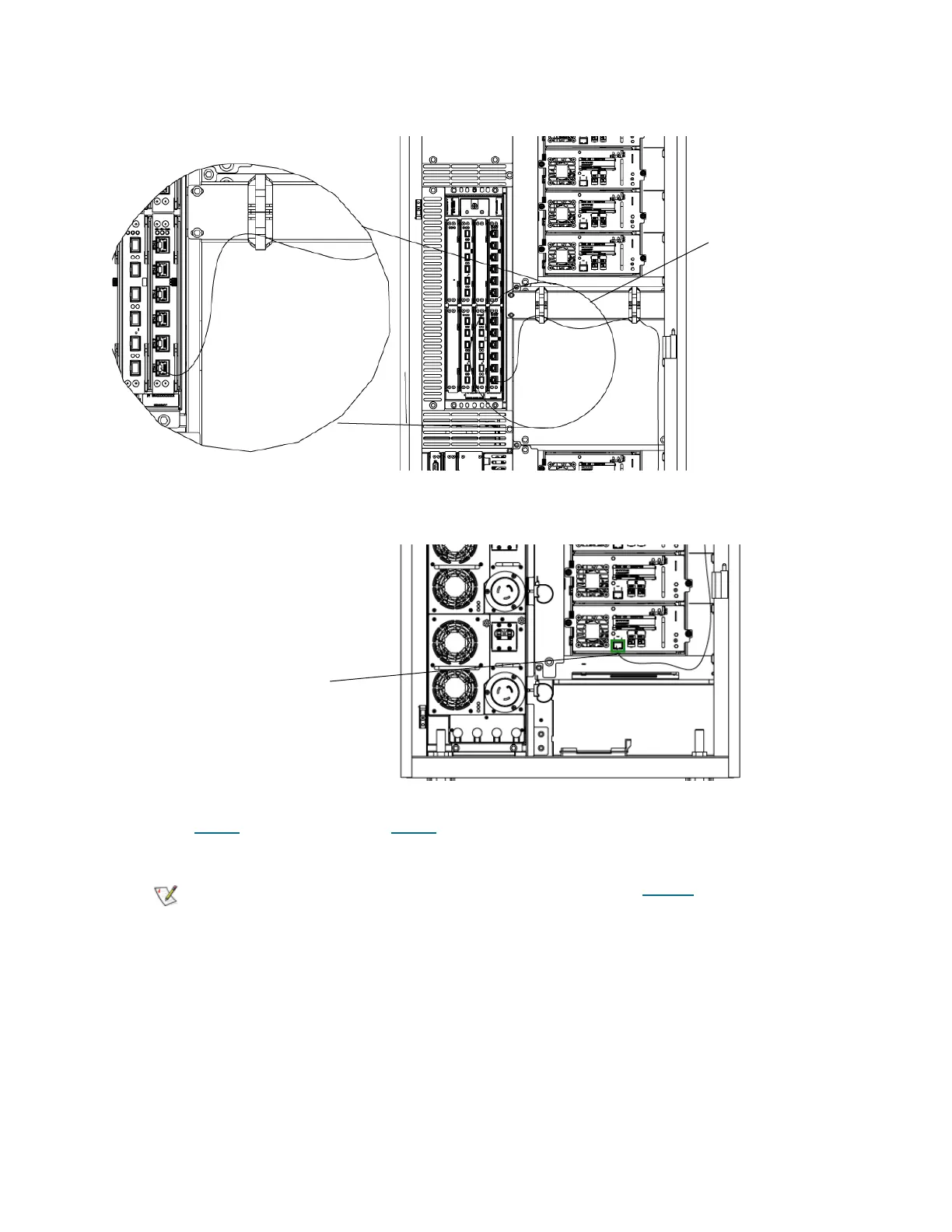

EEB cable routed
through cable
keepers
EEB cable connected
to drive coordinate
1,1,1,1,1,1
