Quantum Scalar i6000 - Use an Automated Media Pool

266 Adding Optional Hardware
11 Connect the cable to ETH 1 on the Ethernet Expansion blade that is installed in bay 7 of the I/O
management unit. See Cabling
on page 111 for information about the cable connection requirements.
12 Route the cable through the cable keepers and down the right side of the control module or expansion
module.

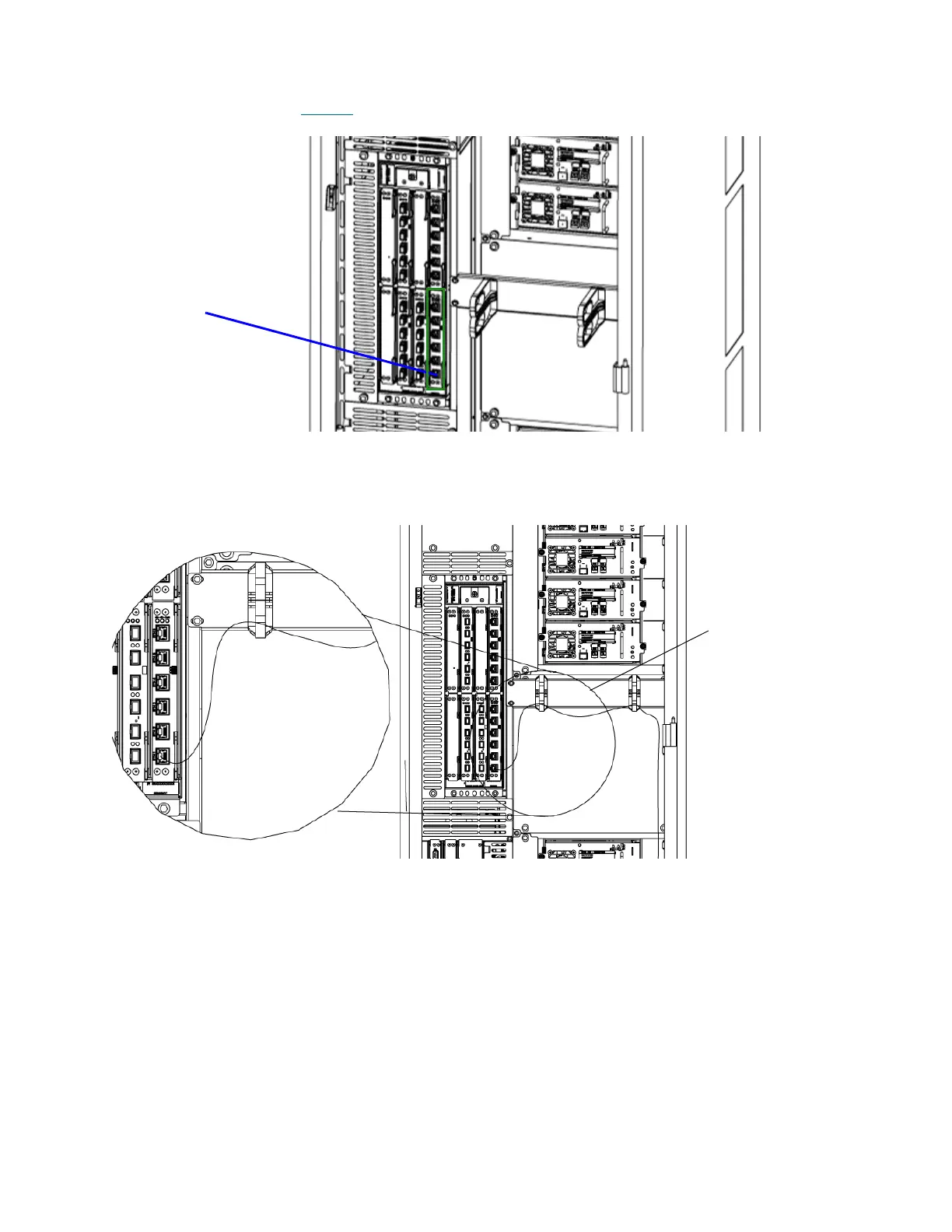

port 1 on the
EEB in
in bay 7
EEB cable routed
through cable
keepers
