Scalar i2000 Installation Guide 275

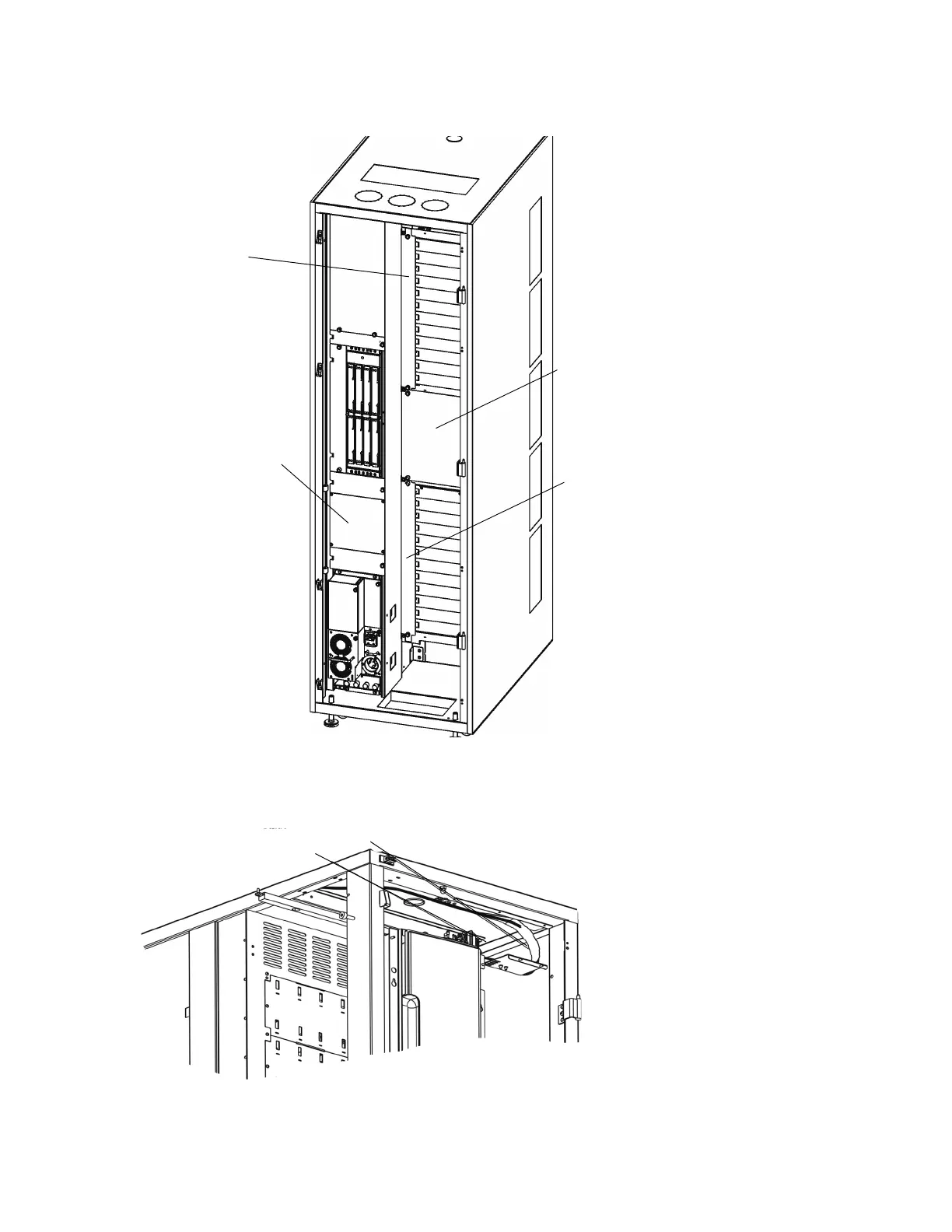

18 Use a #2 Phillips screwdriver to remove the top drive cluster cover plate, the mid-module cover plate,
the bottom drive cluster cover plate, and the LBX/IEX cover plate.
19 Connect cable W6 to the I/E station lock assembly and route the cable around the cable tray.
mid-module cover plate
bottom drive cluster
cover plate
LBX/IEX cover plate
top drive cluster
cover plate
I/E station lock
assembly
W6 cable
