Scalar i2000 Installation Guide 291
42 From inside the access door of the expansion module you are upgrading, position the I/E station so that
its bottom edge rests on the bottom of the opening in the access door.
43 Align the I/E station side flange mounting holes with those on the access door.
44 After testing the cable clearance, open the access door.
45 To initiate securing the I/E station to the door frame before mounting it to the door, use a 2.5 mm hex
wrench to insert (do not tighten) the eight screws in the door.
To avoid scratching or damaging the I/E stations handle them with care.

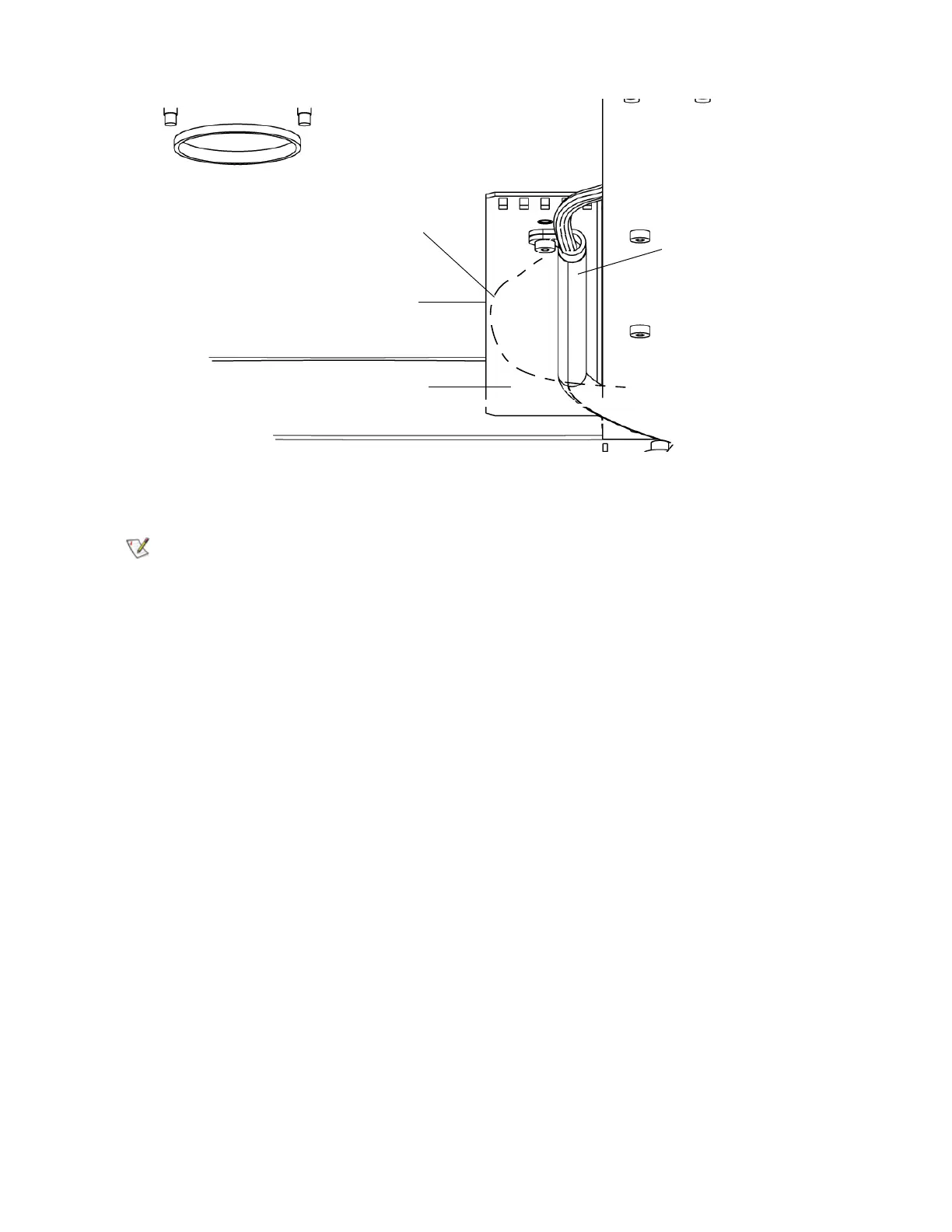

"U" protrusion
small amount of slack
cable bracket’s main surface
edge of frame cable bracket
