Scalar i2000 Installation Guide 295

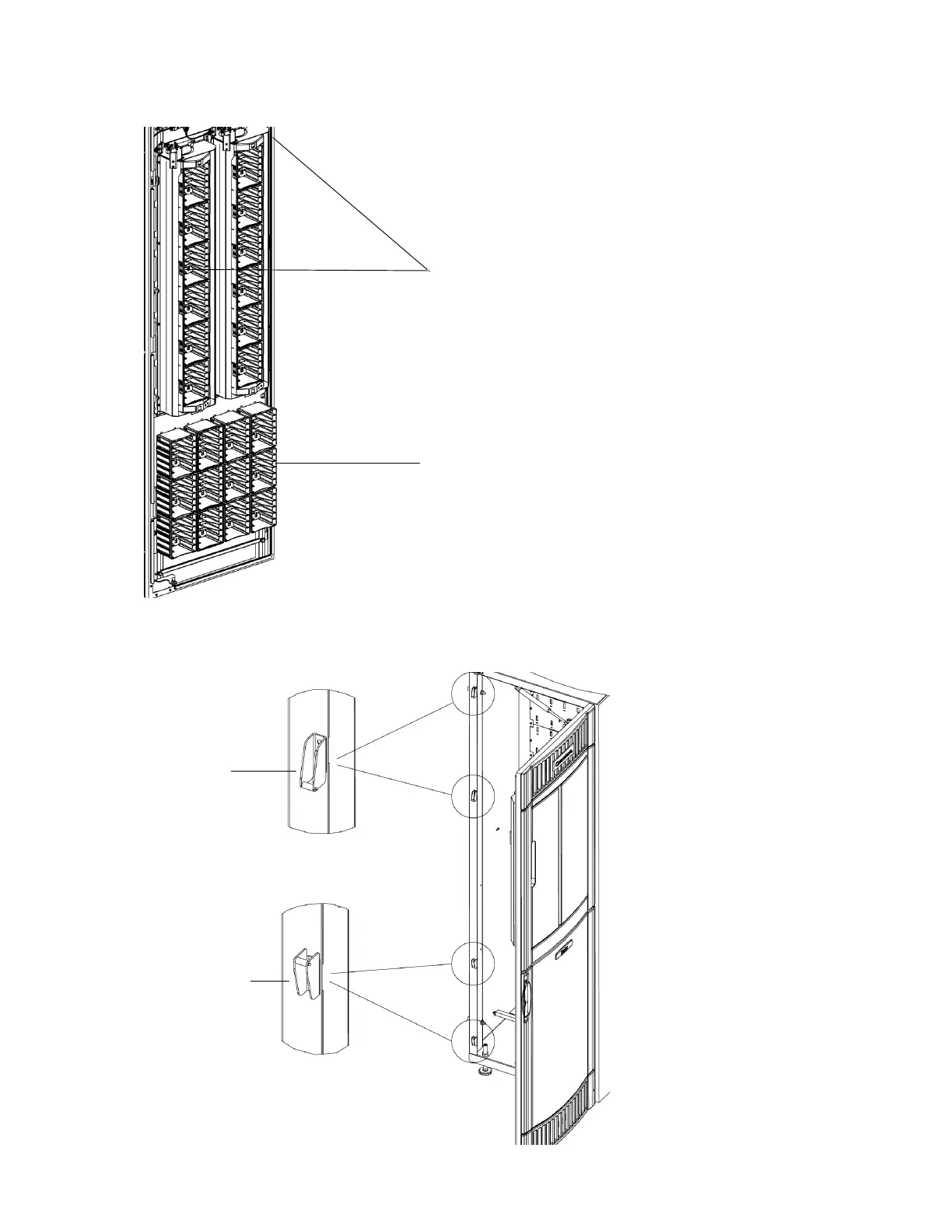

52 Install the supplied magazines into each of the I/E stations.
53 Using a 3 mm hex wrench to reinstall the access door latches of the expansion module to the right of
the new access door. Make certain the latches are positioned correctly.
storage
I/E station magazines
Top two
bottom 2 latches
latches have
rollers pointing
down
have rollers pointing
up
