Scalar i6000 Installation Guide 57
belt, making it possible to cut off excess. Remove only one tooth at a time as you adjust the belt for
length.
5 Use a 2.5 mm hex wrench to remove the belt from the left side of the X-axis belt clamp.
6 Cut off one tooth and then reinstall the belt to the left side of the X-axis belt clamp using the 2.5 mm hex
wrench.

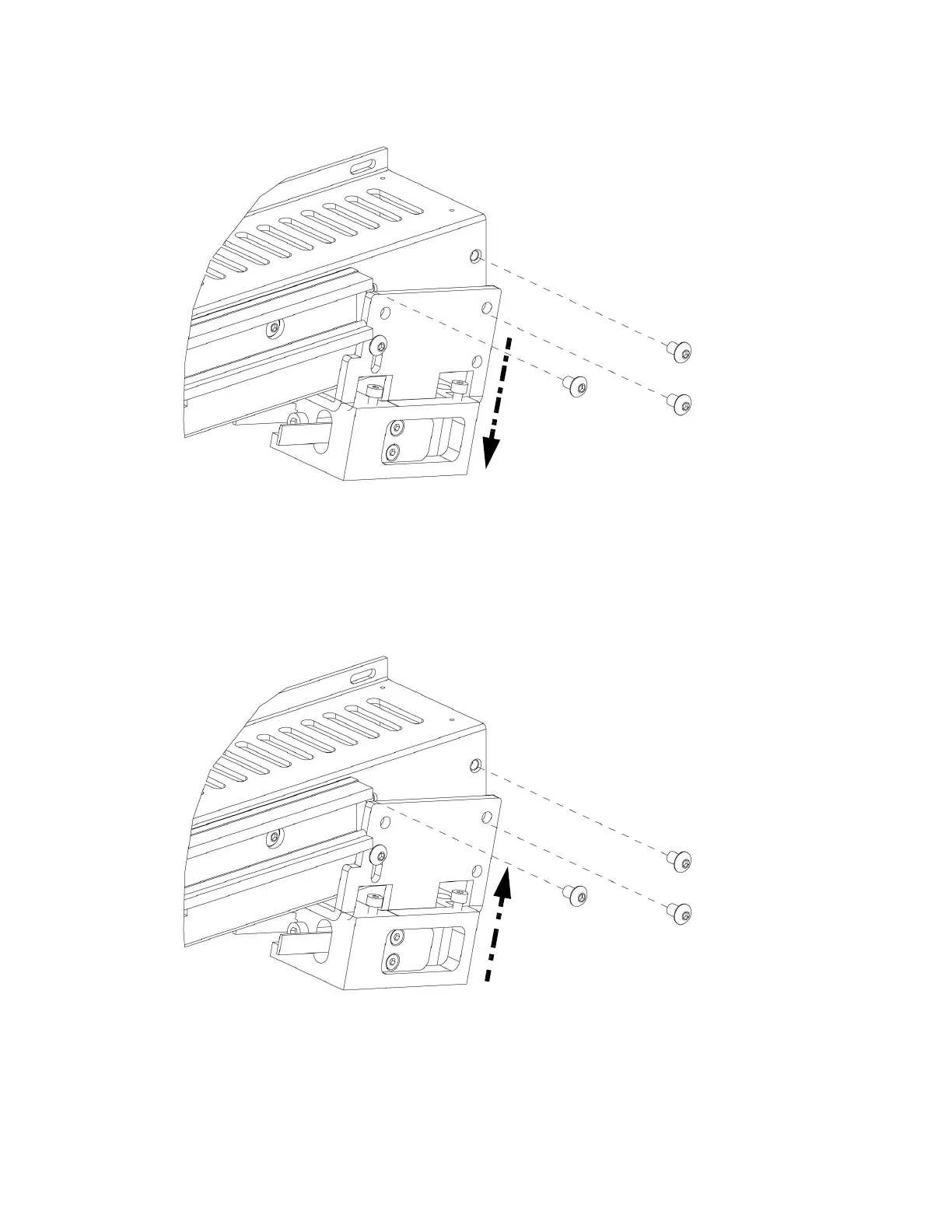

7 To reinstall the x-axis tensioner assembly, rotate it counter-clockwise and then push it upwards.
8 Use a 3mm hex wrench to install the remaining three screws and tighten the loosened screw in the
vertical slot.
9 Use the 4mm hex wrench to turn the spring-load screw counter clockwise to uncompress the tensioner.
10 Verify that the tensioner gap does not exceed 3.5mm
