Scalar i6000 Installation Guide 59

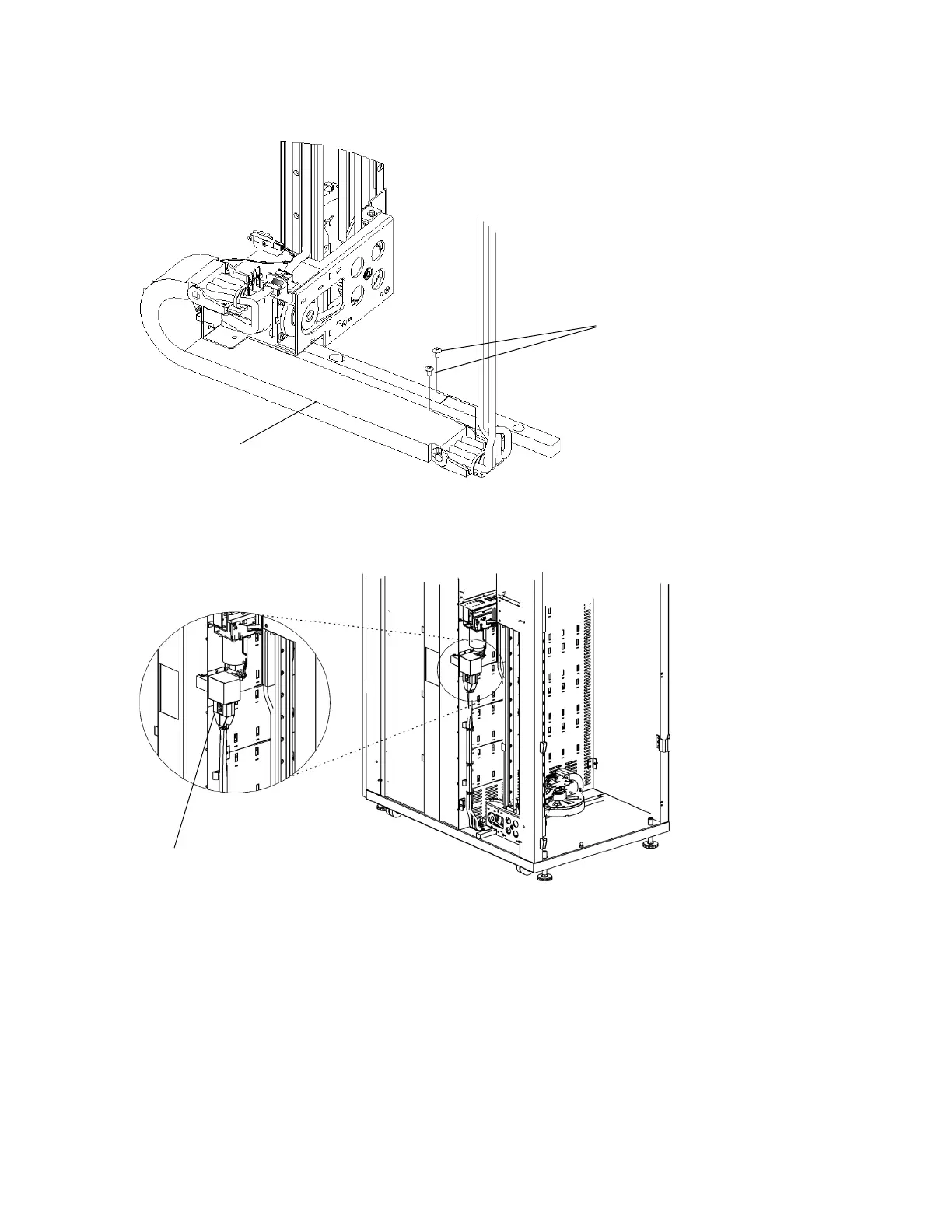

2 Using the 3 mm hex wrench, secure the X-axis chain assembly (W8) to the bottom of the control module

using two 3 mm screws.

3 Connect the X-axis chain (W8) connector from the control module bulkhead.

X-axis chain

assembly (W8)

3 mm screws

X-axis chain (W8) connection
