60 Installing a Multi-Module Library

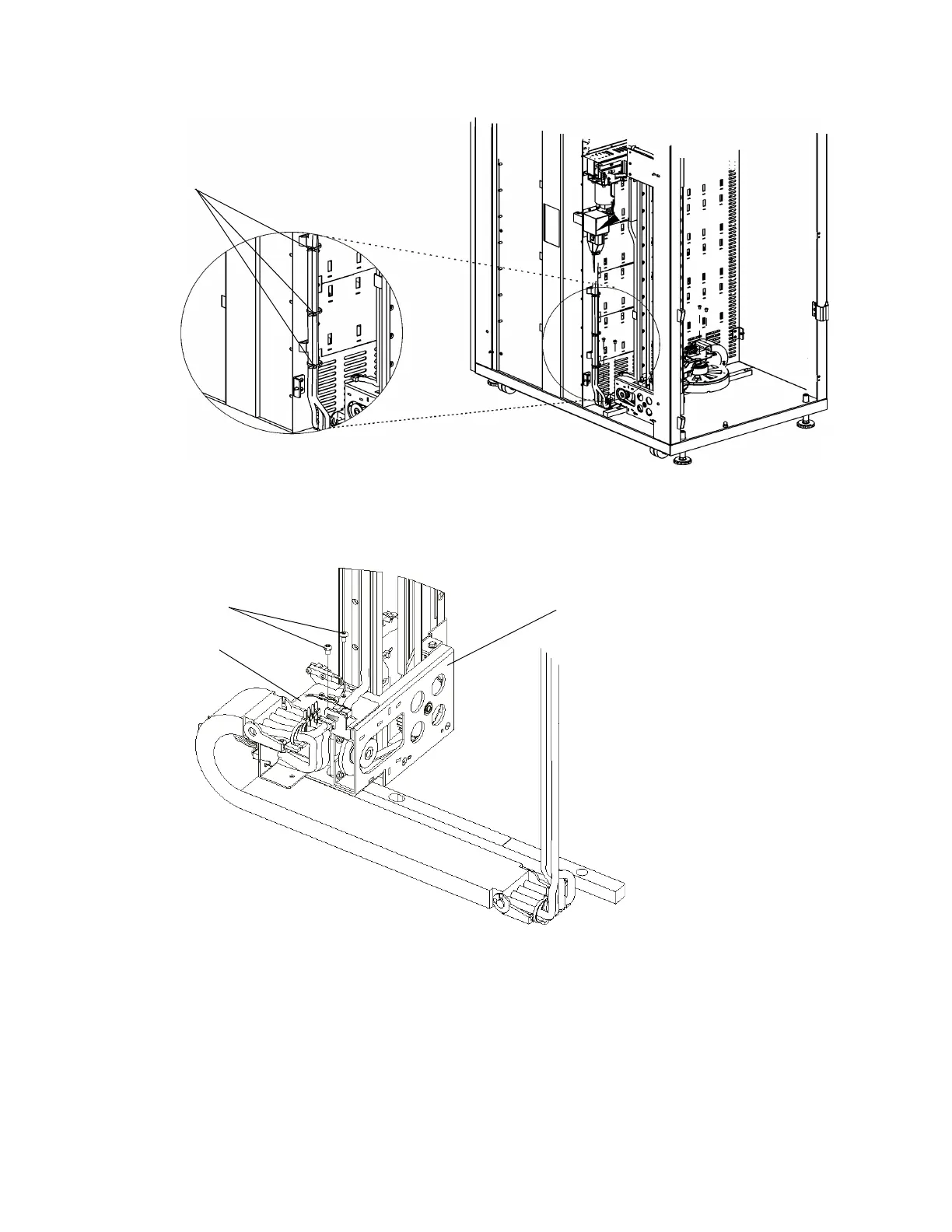

4 Connect the X-axis chain connector (W8) to the control module bulkhead using Velcro straps.

5 Use a 3 mm hex wrench to attach the X-axis chain assembly (W8) to the Y-axis drive mount assembly

using two 3 mm screws.

Velcro straps

Y-axis drive

mount assembly

3 mm screws

X-axis chain

assembly
