4 Route the W1 and W2 cables from the new expansion module through the opening in the left bulkhead
of the control module or last expansion module in the existing configuration.
5 Connect the W1 ribbon cable to the J2 connection on the LBX board on the control module or last
expansion module in the existing configuration.
This connects the J1 connection on the LBX board in the new expansion module to the J2 connection
on the LBX board in the control module or last expansion module in the existing configuration.
Note
The LBX board has three versions and the terminator has two versions. For
more information, see LBX Board
on page 345 and LBX Terminator on
page 349. Make certain you have the correct version LBX based on the
library configuration you are installing.

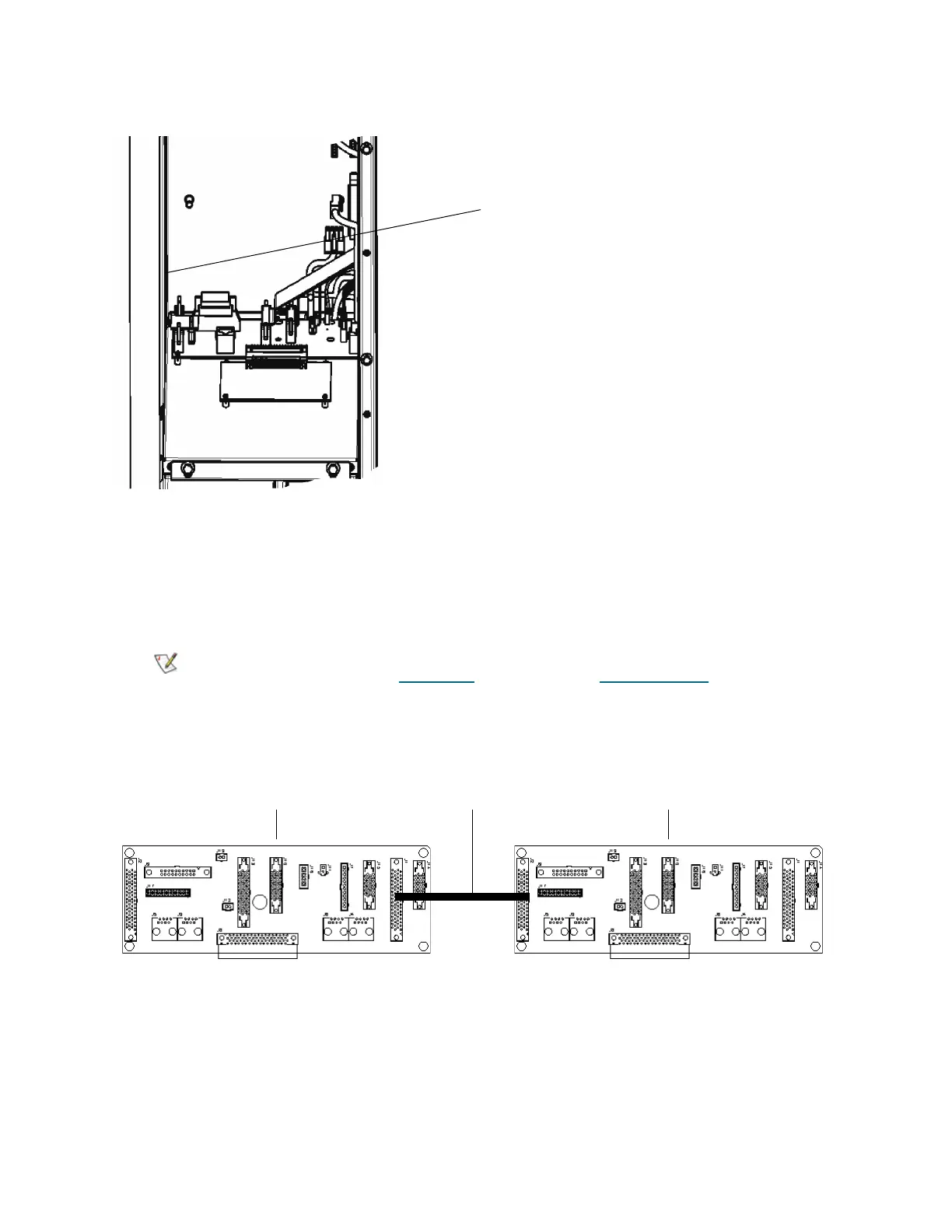

route the W1 and W2 cables
through opening in the left
bulkhead
LBX board on
expansion module
LBX board on
control module orW1 cable
J2J1J2
J17
J1
expansion module(large ribbon cable)
