RADWIN2000+SeriesUserManual Release4.2.40 12‐12

ConfiguringGHSSwithanInternalGPSUnit

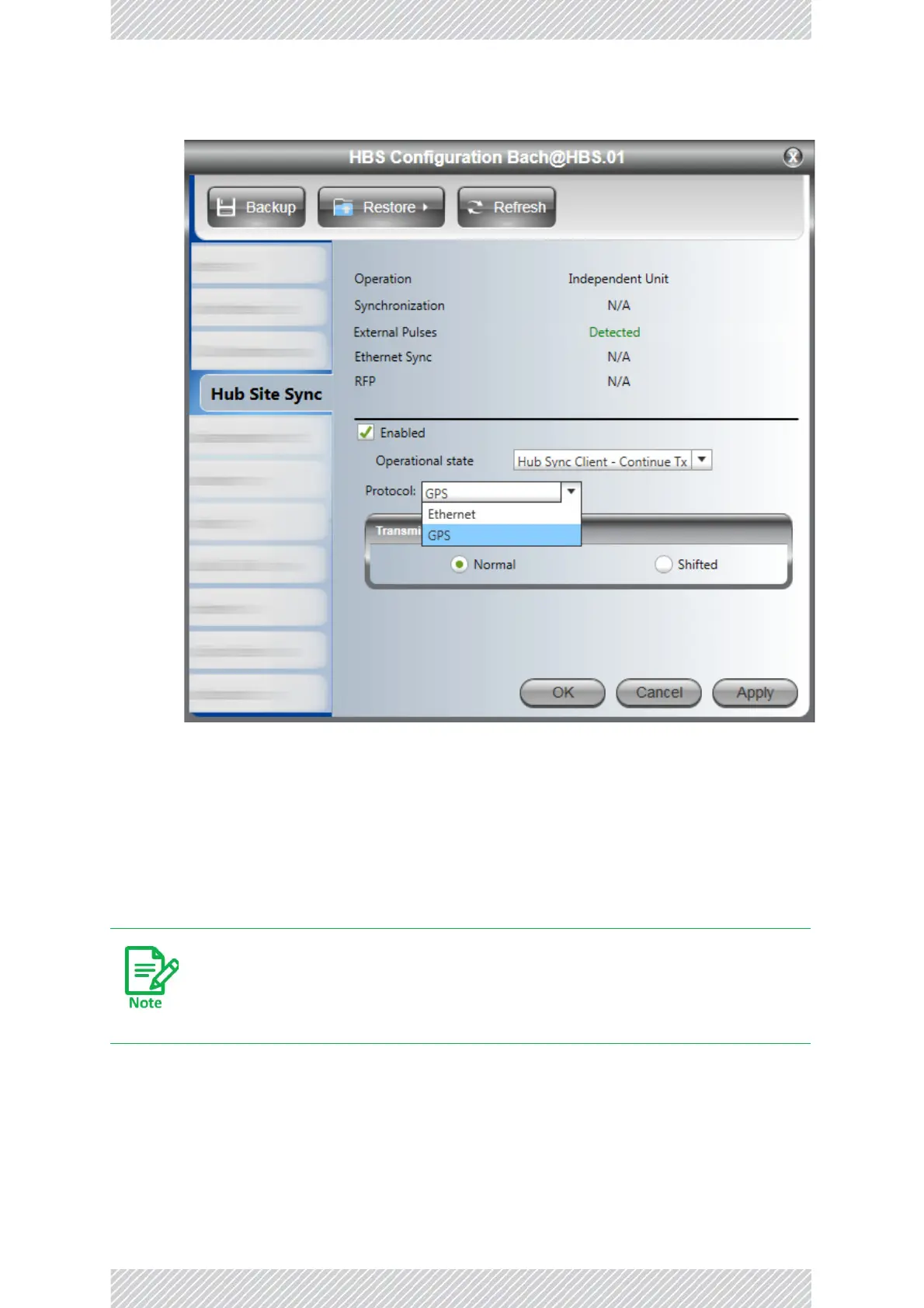

5. ChooseGPSfromtheProtocolpull‐downmenu:

6. Ifyoursitedoesnotwarranttheneedforashiftinthetransmissionphase(see

page 12‐9foradescriptionoftransmissionphase),selecttheNormalradiobutton,

andclickOKorApply,thenclosetheHubSiteSyncdialogbox.

7. Ifyo

ursitedoeswarranttheneedforashiftinthetransmissionphase(seepage 12‐

9foradescriptionoftransmissionphase),andtheselectedRT‐A(HBS)istheRT‐

A(HBS)whosetransmissionphasemustbeshifted,selecttheShiftedradiobutton,

andclickOKorApply,thenclosetheHubSiteSyncdialogbox.

IftheTransmissionRatioisnot*exactly*50%,youwillnotbeabletochangethe

TransmissionPhase,andawarninginstructingyoutoadjustitto50%willappear

(ForinstructionsonhowtoadjusttheTransmissionRatio,seeTransmissionRatio

onpage 8‐27).
