2.11 Supplementary conditions and NC VAR selector
Basic logic functions: PLC Basic program powerline (P3 pl)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
91
Basic display/Basic menu
After the NC VAR selector has been selected (started), the basic display with all input
options (upper menu bar) appears on the screen. All other displayed windows are placed
within the general window.

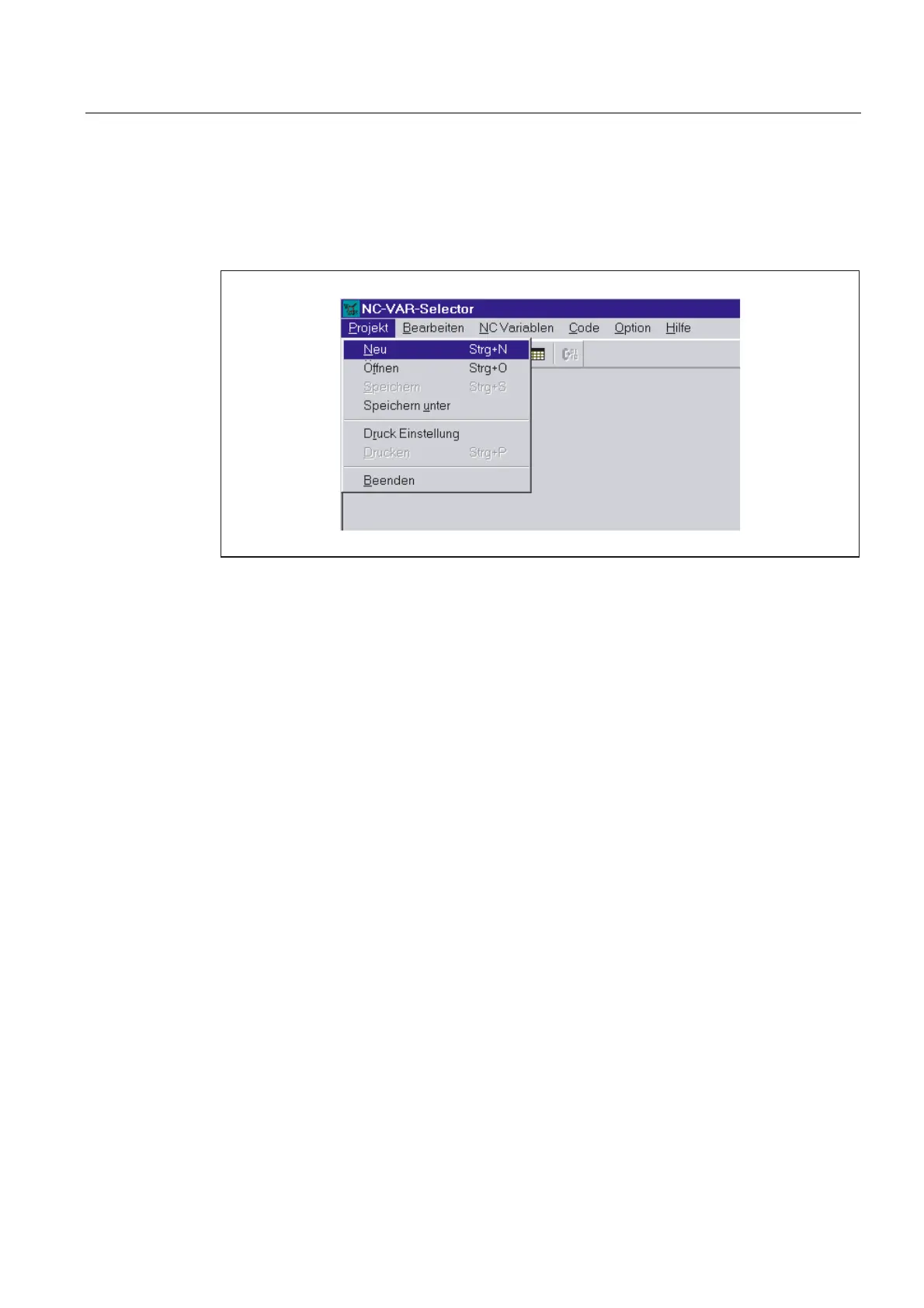

Figure 2-21 Basic display with basic menu
Project menu item
All operator actions associated with the project file (file of selected variables) are performed
under this menu item.
Terminating the application
The application can be terminated by selecting the "End" option under the "Project" menu
item.
Creating a new project
A new project (new file for selected variables) can be set up under the "Project" menu item.
A window is displayed for the selected variables when "NEW" is selected. The file selection
for the NC variable list is then displayed after a prompt (applies only if the NC variable list is
not already open).
