Detailed description
2.1 Axes
Basic logic functions: Axes, c
oordinate systems, frames (K2)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
17
2.1.2
Machine axes
Meaning
Machine axes are the axes that actually
exist on a machine tool
.
;
&
<
=
%

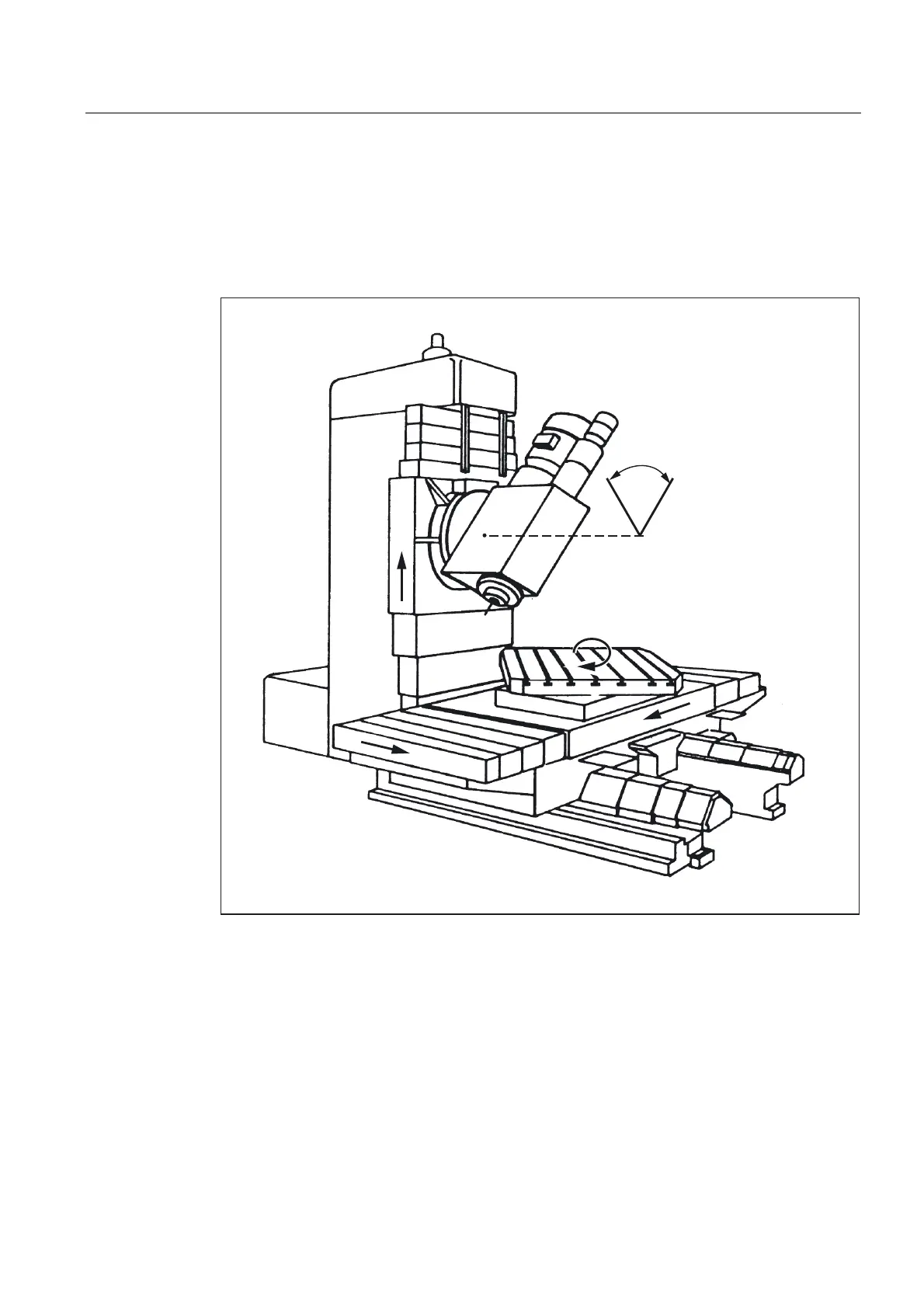

Figure 2-3
Machine axes X, Y, Z
, B, S on a Cartesian machine
800
802
Table of Contents
Function Manual - Basic Functions
1
Preface
3
1 Various NC/PLC interface signals and functions (A2)
7
Table of contents
9
1 Brief description
11
2 Detailed description
13
2.1 NC/PLC interface signals
13
2.1.1 General
13
2.1.2 Ready signals to PLC
15
2.1.3 Alarm signals to PLC
16
2.1.4 SINUMERIK 840Di-specific interface signals
16
2.1.5 Signals to/from panel front
17
2.1.6 Signals to channel
19
2.1.7 Signals to axis/spindle
19
2.1.8 Signals from axis/spindle
29
2.1.9 Signals to axis/spindle (digital drives)
30
2.1.10 Signals from axis/spindle (digital drives)
32
2.2 Functions
35
2.2.1 Screen settings
35
2.2.2 Settings for involute interpolation
36
2.2.3 Activate DEFAULT memory
39
2.2.4 Read /write PLC variable
40
2.2.5 Access protection via password and keyswitch
43
2.2.5.1 Access protection via password and keyswitch
43
2.2.5.2 Password
45
2.2.5.3 Keyswitch settings (DB10, DBX56.4 to 7)
46
2.2.5.4 Parameterizable protection levels
47
3 Supplementary conditions
49
4 Examples
51
5 Data lists
53
5.1 Machine data
53
5.1.1 Drive-specific machine data
53
5.1.2 Memory specific machine data
53
5.1.3 NC-specific machine data
56
5.1.4 Channel specific machine data
56
5.1.5 Axis/spindle specific machine data
56
5.2 System variables
57
5.3 Signals
57
5.3.1 Signals to NC
57
5.3.2 Signals from NC
57
5.3.3 Signals to operator panel front
58
5.3.4 Signals from operator panel front
58
5.3.5 Signals to channel
59
5.3.6 Signals from channel
59
5.3.7 Signals to axis/spindle
59
5.3.8 Signals from axis/spindle
60
2 Axis monitoring, protection zones (A3)
67
Table of contents
69
1 Brief Description
71
1.1 Axis monitoring functions
71
1.2 Protection zones
71
2 Detailed description
73
2.1 Axis monitoring
73
2.1.1 Contour monitoring
73
2.1.1.1 Contour error
73
2.1.1.2 Following Error Monitoring
74
2.1.2 Positioning , zero speed and clamping monitoring
76
2.1.2.1 Correlation between positioning, zero-speed and clamping monitoring
76
2.1.2.2 Positioning monitoring
76
2.1.2.3 Zero speed monitoring
78
2.1.2.4 Exact stop and standstill tolerance dependent on the parameter set
79
2.1.2.5 Clamping monitoring
79
2.1.3 Speed -setpoint monitoring
87
2.1.4 Actual velocity monitoring
88
2.1.5 Measuring-system monitoring (systems with SIMODRIVE 611D)
89
2.1.5.1 Encoder-limit-frequency monitoring
89
2.1.5.2 Zero mark monitoring
90
2.1.5.3 Zero-mark monitoring for incremental encoders
91
2.1.5.4 Zero-mark monitoring for absolute encoders
92
2.1.5.5 Customized error reactions
94
2.1.5.6 Monitoring of hardware faults
96
2.1.6 Measuring-system monitoring (systems with PROFIBUS drives)
96
2.1.7 Limit switches-monitoring
97
2.1.7.1 Hardware limit switches
97
2.1.7.2 Software limit switch
98
2.1.8 Monitoring of the working area limitation
100
2.1.8.1 General
100
2.1.8.2 Working area limitation in BKS
103
2.1.8.3 Working area limitation in WKS/ENS
105
2.2 Protection zones
108
2.2.1 General
108
2.2.2 Types of protection zone
109
2.2.3 Definition via part program instruction
112
2.2.4 Definition via system variable
115
2.2.5 Activation and deactivation of protection zones
117
2.2.6 Protection-zone violation and temporary enabling of individual protection zones
121
2.2.7 Restrictions in protection zones
127
3 Supplementary conditions
129
3.1 Axis monitoring functions
129
4 Examples
131
4.1 Axis monitoring
131
4.1.1 Working area limitation in WKS/ENS
131
4.2 Protection zones
134
4.2.1 Definition and activation of protection zones
134
5 Data lists
145
5.1 Machine data
145
5.1.1 NC-specific machine data
145
5.1.2 Channel specific machine data
145
5.1.3 Axis /spindle specific machine data
146
5.2 Setting data
147
5.2.1 Axis/spindle specific setting data
147
5.3 Signals
148
5.3.1 Signals to channel
148
5.3.2 Signals from channel
148
5.3.3 Signals to axis/spindle
149
3 Continuous path Mode, Exact Stop, LookAhead (B1)
153
Table of contents
155
1 Brief Description
157
2 Detailed description
161
2.1 General
161
2.1.1 Parameterization of the RESET response
161
2.1.2 Block change and positioning axes
161
2.1.3 Block change delay
161
2.2 Exact stop
162
2.3 Continuous -path mode
167
2.3.1 General
167
2.3.2 Velocity reduction according to overload factor
169
2.3.3 Rounding according to path criterion
171
2.3.4 Rounding with maximum possible dynamic response on each axis
179
2.3.5 Smoothing the path velocity
181
2.3.6 Dynamic response adaptation
185
2.3.7 Technology G group
193
2.4 LookAhead
196
2.5 NC block compressor COMPON, COMPCURV, -CAD
202
2.6 Combine short spline blocks
205
3 Supplementary conditions
207
3.1 Rounding and repositioning (REPOS)
207
3.2 Smoothing the path velocity
209
4 Examples
211
4.1 Example of jerk limitation on the path
211
5 Data lists
213
5.1 Machine data
213
5.1.1 General machine data
213
5.1.2 Channel specific machine data
213
5.1.3 Axis/spindle specific machine data
214
5.2 Setting data
215
5.2.1 Channel specific setting data
215
5.3 Signals
215
5.3.1 Signals from channel
215
5.3.2 Signals to axis/spindle
215
Index
217
