Detailed description
2.3 Starting up hardware configuration of PLC CPUs
Basic logic functions: PLC basic
program solution line (P3 sl)
16
Function Manual, 11/2006, 6FC5397-0BP10-2BA0

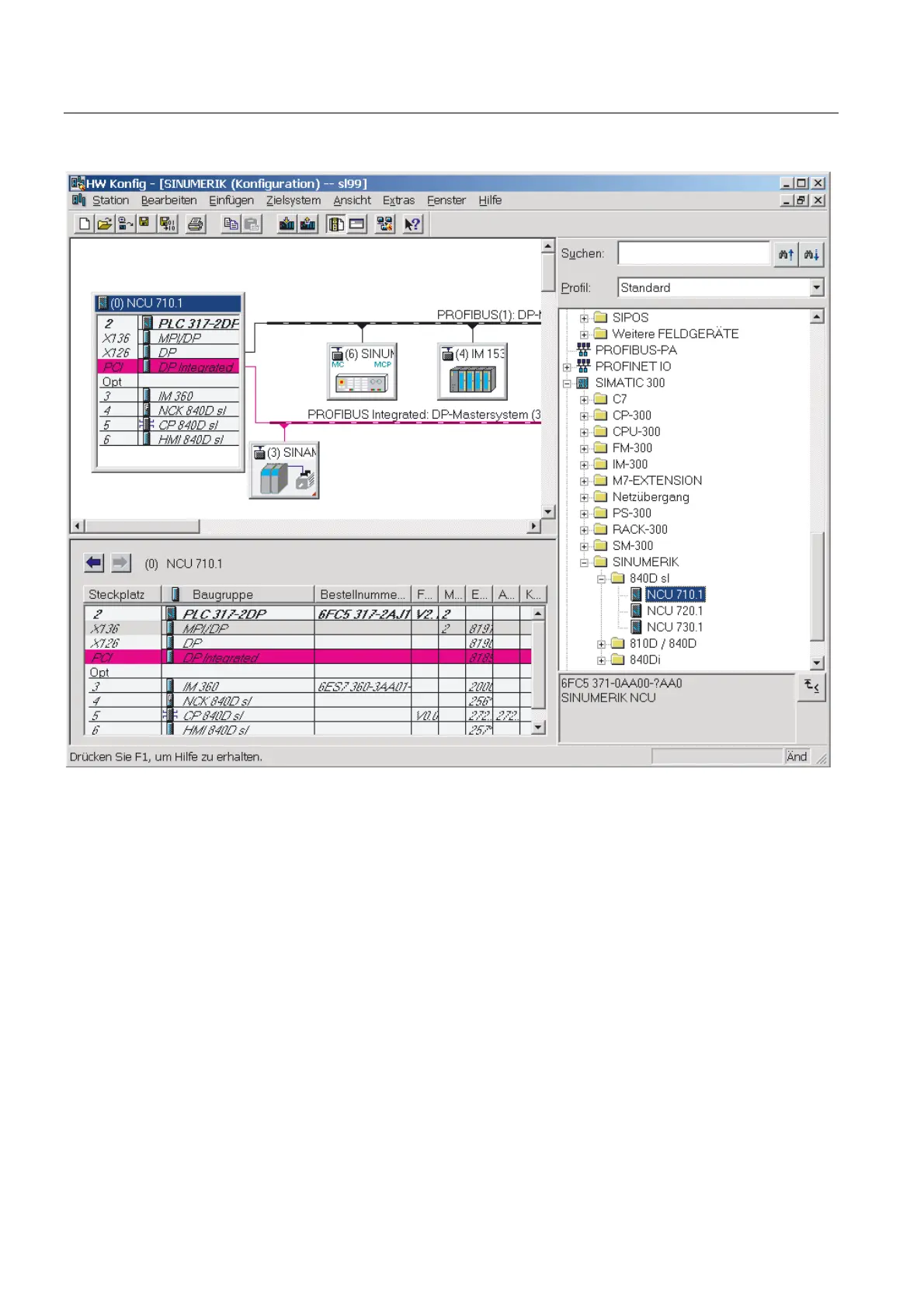

Figure 2-1
Hardware configurati
on on the
SINUMERIK 840D sl and
SINAMICS Propert
ies dialog box
1289
1291
