2.5 Linking PLC CPUs to 840D
Basic logic functions: PLC basic program solution line (P3 sl)
28 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
Data exchange with the control panel
Data exchange with the operator panel (HMI, OP) usually takes place via the internal
software-based C bus. Alternatively, external HMI or OP systems can also be connected on
Ethernet or the MPI bus. In the event of connection to the Ethernet bus, the integrated CP
provides the link to the PLC.
On the SINUMERIK 840D, data exchange with the machine control panel (MCP) and
handheld unit (HHU) is determined by the interface setup of the MCP/HHU. Possible
connection paths include: MPI, Profibus, Ethernet.
Programming devices should preferably be connected directly to the PLC on the Ethernet
bus via the internal CP or via the MPI (Multi-Point-Interface).
&EXV
6XEVWFRPP
ZRUNVEXV

1&.
ಱ&3
'
VOರ
&
3/&
6
6
6
&
(7
&5LVF
230&3
(63*
9',
,QWHUIDFH
6,180(5,.&RQWURO8QLW1&8
352),%86
LQWHUQDOEXVಯ&EXVUDFNರ 6SURWRFRO
5HDOWLPHV\VWHP
'ULYH
8QLWV
03,352),%86
(WKHUQHW7&3,3
,QWHUQDOYLUWXDO352),%86
'3'LUHFW
$FFHVV
([WHUQDO
'ULYH
8QLWV
(WKHUQHW3RUW
(WKHUQHW
6WDUWXSSRUW

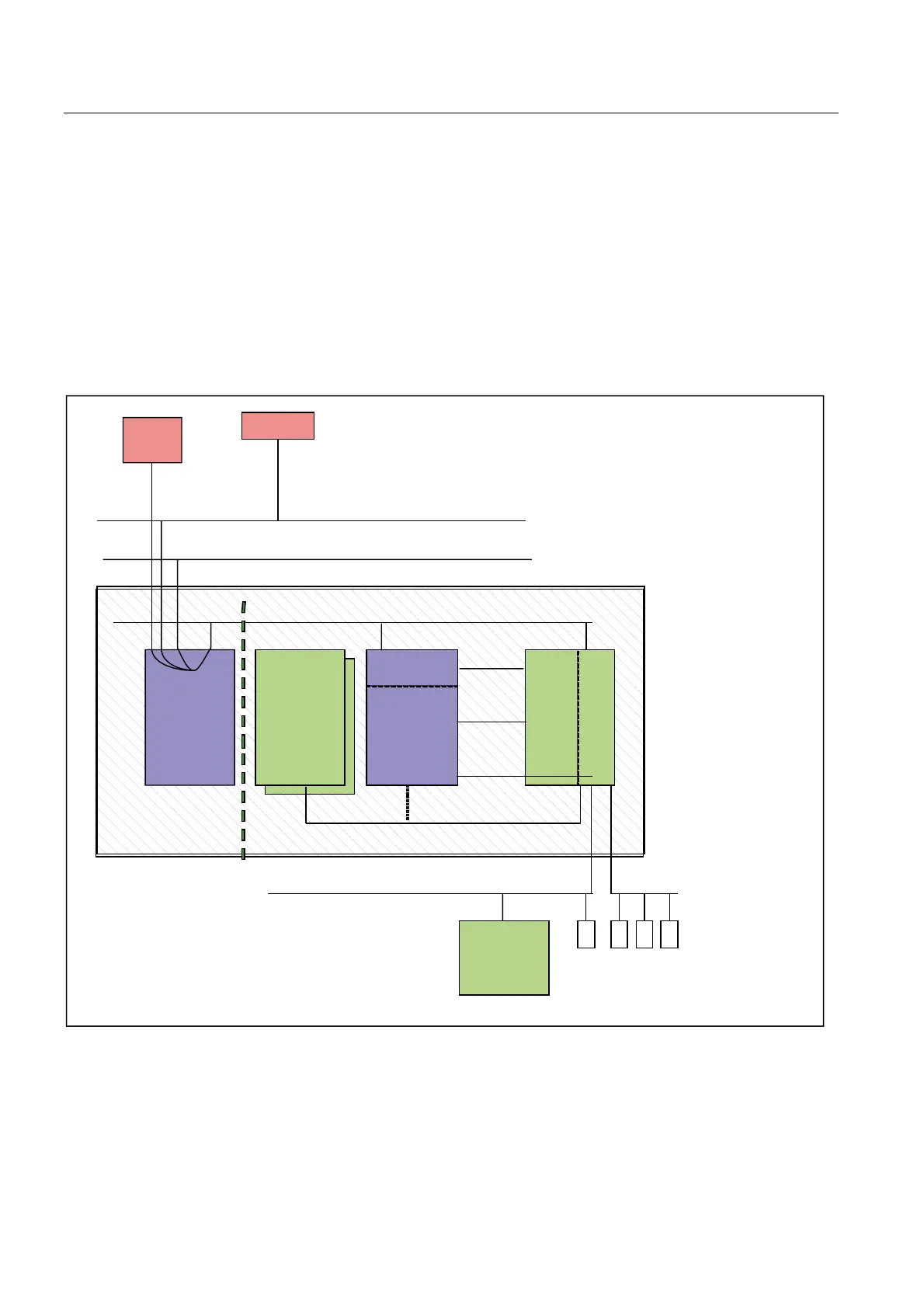

Figure 2-3 NCK-PLC coupling with SINUMERIK 840D (integrated PLC)
