Detailed description
2.7 Structure and functions of the basic program
Basic logic functions: PLC basic program solution line (P3 sl)
64 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
'%
8VHUPDFKLQH
GDWDW\SH,17
1RRI8',QW
1RRI8'+H[
1RRI8'5HDO
8VHUPDFKLQH
GDWDW\SH%<7(
8VHUPDFKLQH
GDWDW\SH5($/

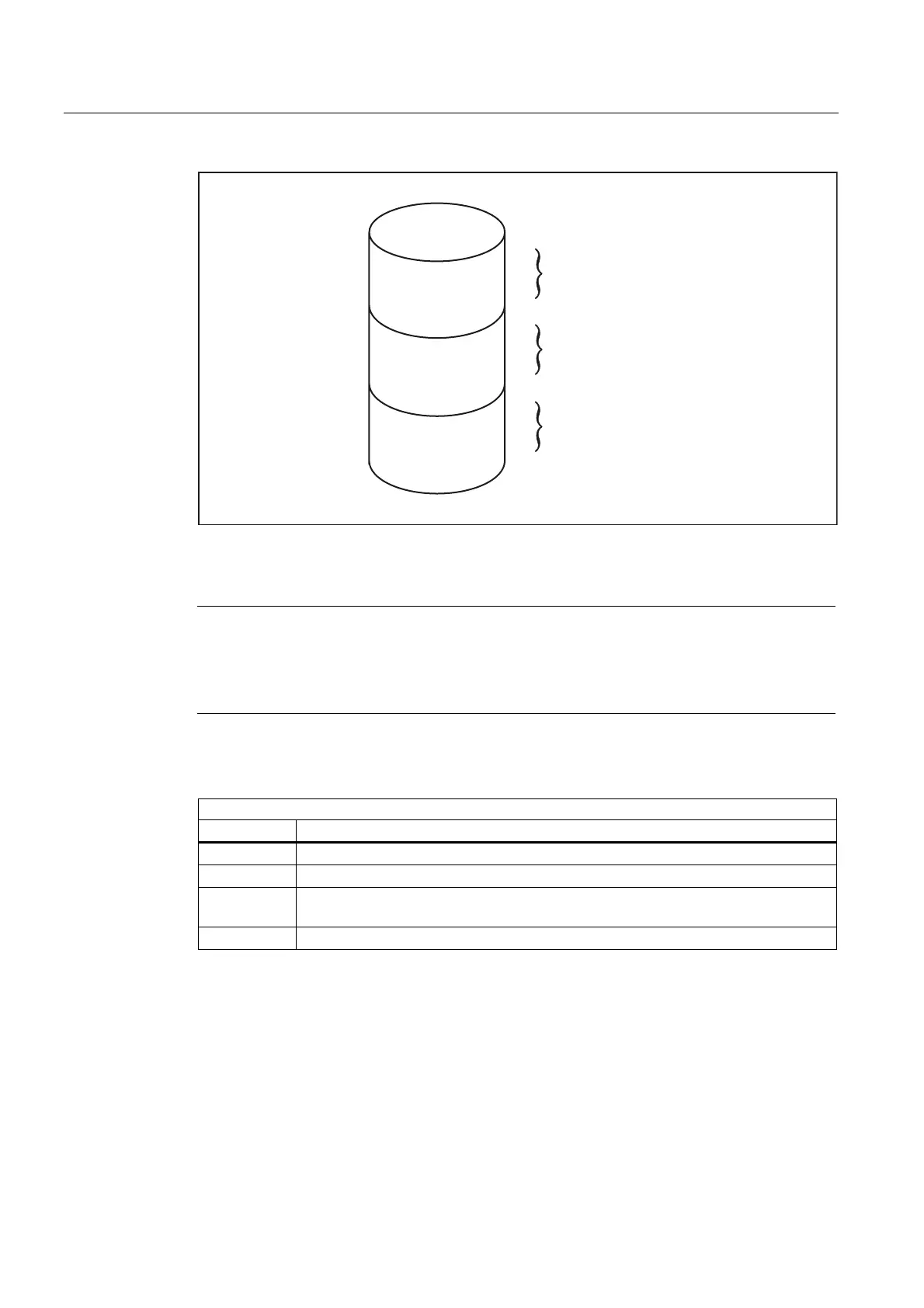

Figure 2-15 DB 20
Note
If the number of PLC machine data used is increased later, then DB20 must be deleted
beforehand. To prevent such extensions in use having any effect on the existing user
program, the data in DB20 should be accessed in symbolic form wherever possible, e.g., by
means of a structure definition in the UDT.
Interrupts
400120 Delete DB 20 in PLC and restart
Explanation DB length is not the same as the required DB length
Response Interrupt display and PLC Stop
To correct or
avoid errors
Delete DB 20 followed by RESET
Continuation After cold restart
