Detailed description

2.12 Block descriptions

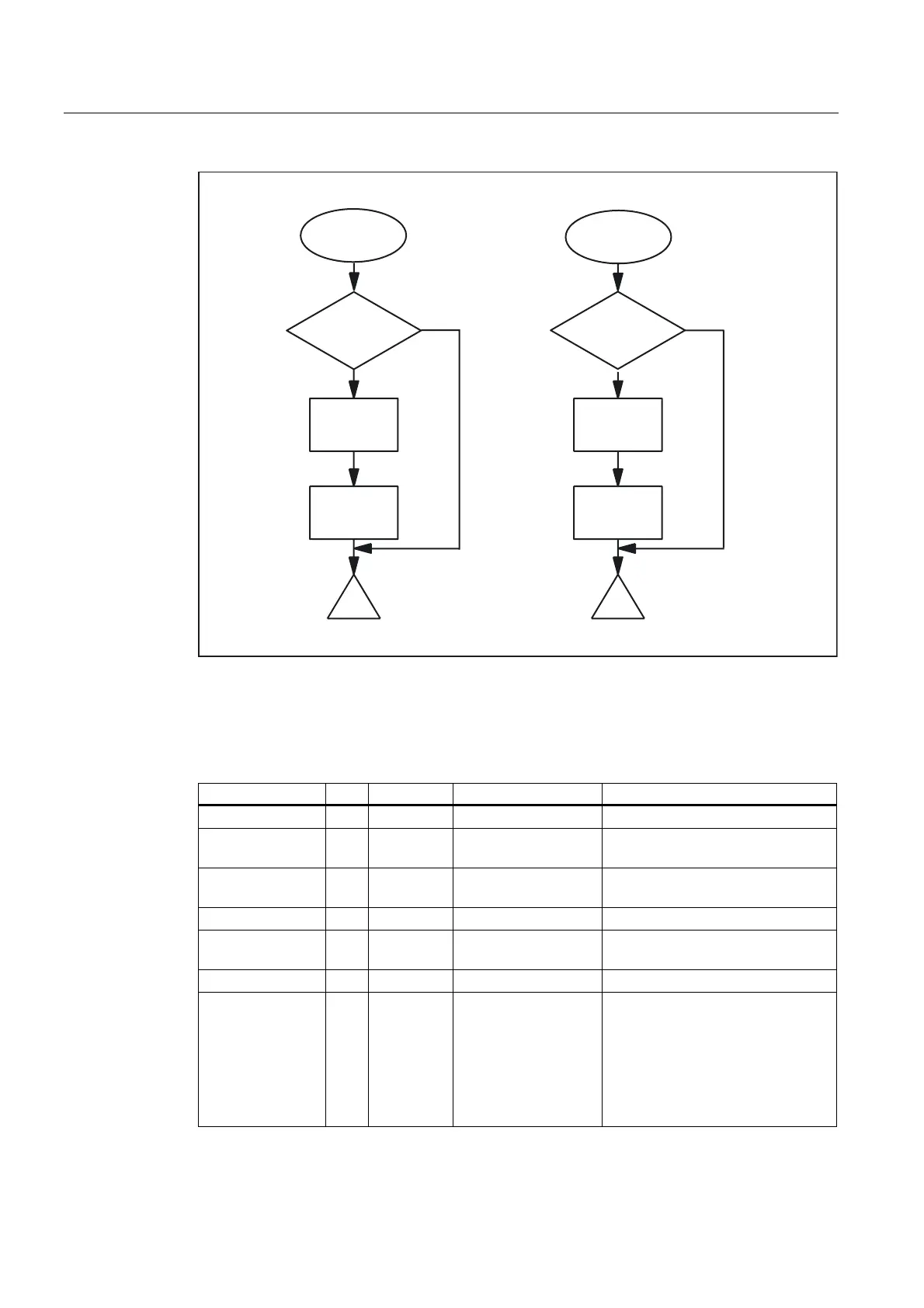

Basic logic functions: PLC basic program solution line (P3 sl)

230 Function Manual, 11/2006, 6FC5397-0BP10-2BA0

6HPDSKRUH 

6HPDSKRUH 

6HPDSKRUH "

6HPDSKRUH "

:ULWHLQ

1&.

7UDQVIHU

GDWDIURPWR

3/&

5HDGGDWD

IURP3/&

5HDGLQ

1&.

Variable value ranges

The following signals are relevant:

Signal Type Type Value range Remark

Enable I BOOL = FC 21 active

Funct I BYTE 3 ,4 3: Read data

4: Write data

S7Var I ANY S7 data area, except

local data

Source/destination data storage

area

IVAR1 I INT 0..1023 Position offset

IVAR2 I INT -1 .. 1023 Semaphore byte

Transfer without semaphore: -1

Error A BOOL

ErrCode A INT 20: Alignment error

21: Illegal position offset

22: Illegal semaphore byte

23: No new data to be read

24: Cannot write data

25: Local data parameterized for

S7Var
