Detailed description
2.4 Referencing with incremental measurement systems
Basic logic functions: Reference Point Approach (R1)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
23
Features of phase 3
• Feed override active.
• Feed stop (channelspecific and axisspecific) is active.
• NC STOP and NC START are active.
Special feature of phase 3
If the parameterized distance from the encoder zero mark to the reference point, i.e. the sum
of reference point distance and reference point offset (MD34080 + MD34090) is smaller than
the required breaking distance for stopping from the reference point positioning
velocity(MD34070), the machine axis initially stops "behind" the reference point and then
travels back to it.
5HIHUHQFHSRLQWDSSURDFK
YHORFLW\
RIUHIHUHQFH
SRLQWFDP
'(/$<
RIUHIHUHQFH
SRLQWDSSURDFK
9HORFLW\
5HIHUHQFHSRLQWFUHHSYHORFLW\
=HUR0DUN
UHIHUHQFHSRLQWYDOXH
'LVWDQFH
0'0$B5()3B6(7B326>RU@
([DPSOH
0'0$B5()3B029(B',670'0$B5()3B6(7B326B&255
0'0$B5()3B9(/2B6($5&+B0$5.(5
0'0$B5()3B9(/2B6($5&+B&$0

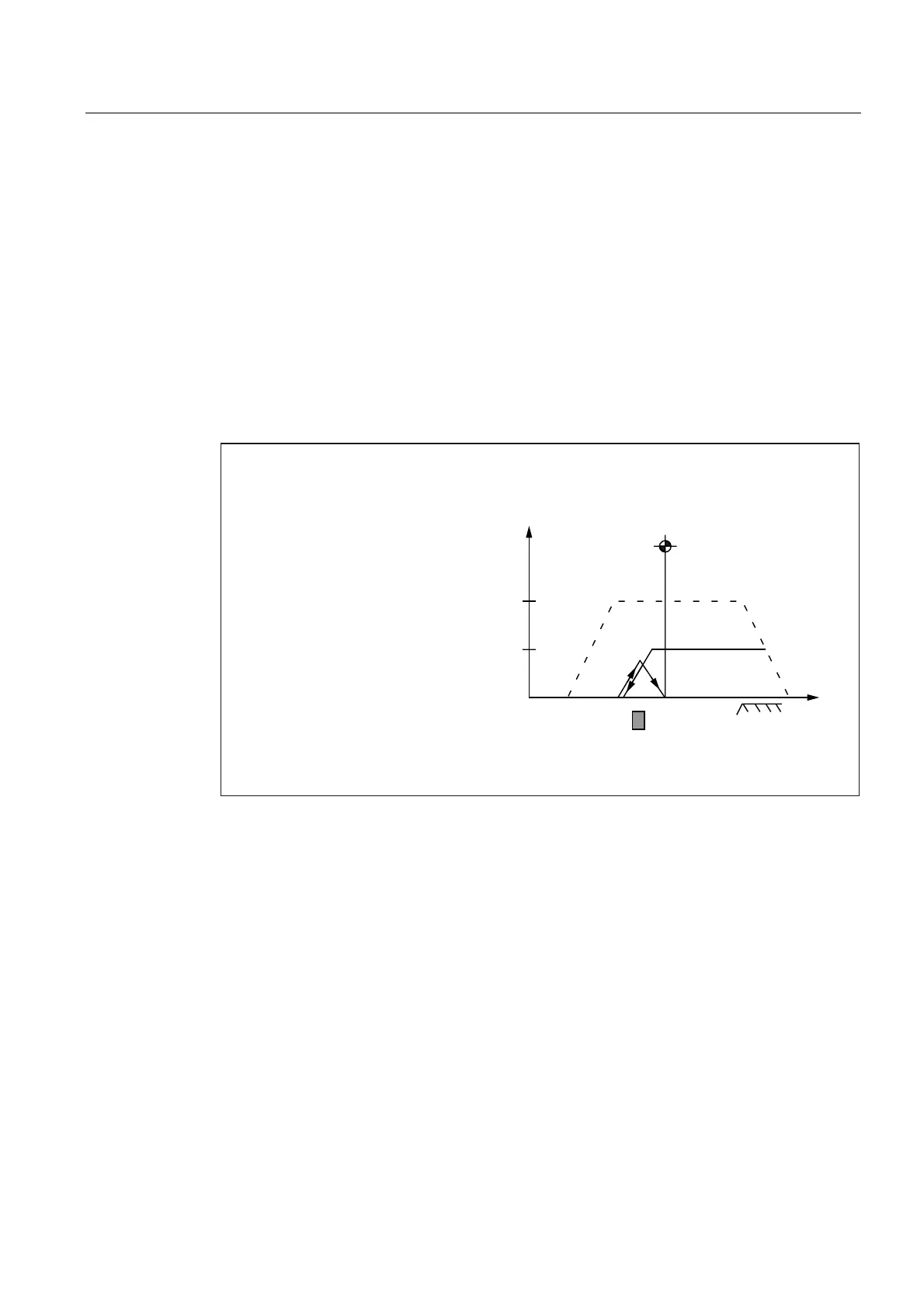

Figure 2-10 Reference point distance plus reference point offset smaller than braking distance
