Detailed description
2.3 Continuous -path mode
Basic logic functions: Continuouspath Mode, Exact Stop, LookAhead (B1)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
23
$',6
1
1
1
1
$',6
$',6
$',6
YE UHPDLQLQJSDWK
1RFRUQHUURXQGLQJ
YESDWK1
YESDWK1
%HJLQQLQJRI
EORFN1
YESDWK1

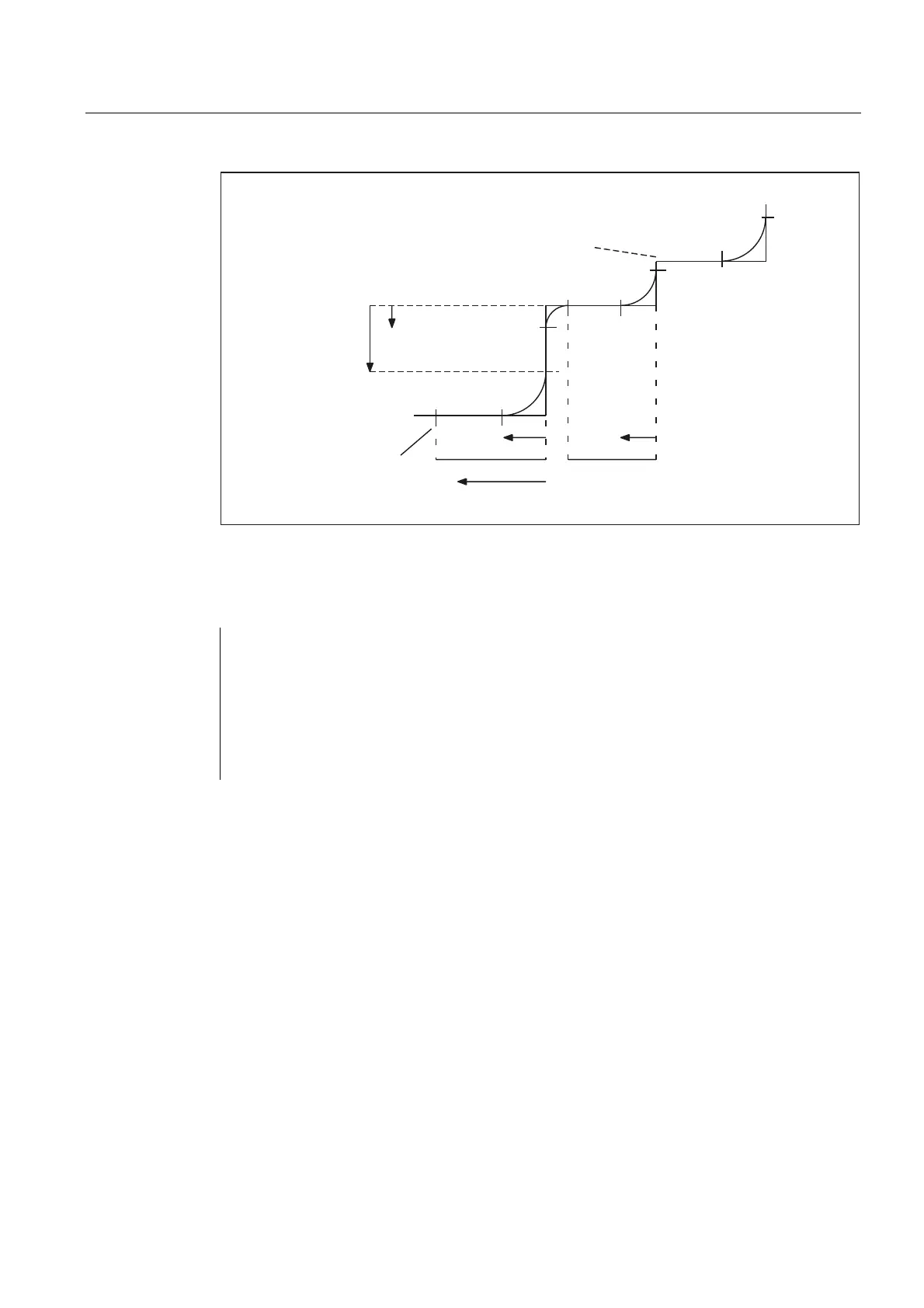

Figure 2-5 Path with limitation of ADIS
Programming example
N1 G641Y50 F10 ADIS = 0.5
N2 X50
N3 X50.7
N4 Y50.7
N5 Y51.4
N6 Y51.0
N7 X52.1
In blocks with short distances (distance < 4*ADIS and < 4 * ADISPOS respectively), the
rounding distance is reduced so that a traversable part of the original block is retained. The
remaining length depends on the axis path and is approximately 60% of the distance still to
be traversed in the block.
ADIS or ADISPOS is therefore reduced to the remaining 40% of the distance to be traversed.
This algorithm prevents a rounding block being inserted for a very small change in contour.
In this case, switchover to continuouspath mode G64 is automatic until rounding blocks can
be inserted again.
