Detailed Description
2.1 Various interface signals and functions (A2)
Basic logic functions: NC/PLC interface signals (Z1)
62 Function Manual, 11/2006, 6FC5397-0BP10-2BA0

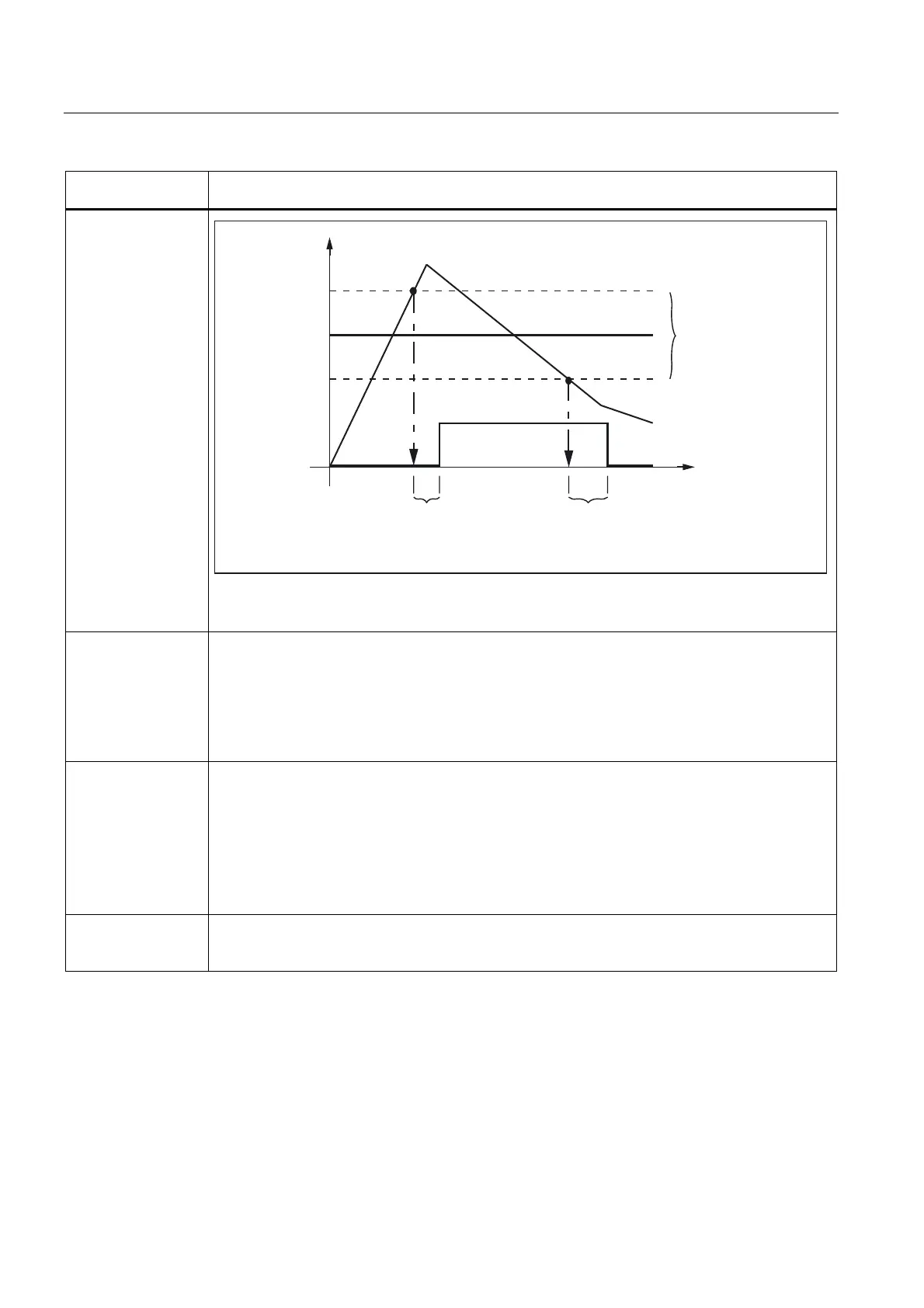

DB31, ...
DBX94.7
Variable signaling function
0'0'B352*B6,*1$/B2))B'(/$<
'URSRXWGHOD\WLPH
0'0'B352*B6,*1$/B21B'(/$<
3XOOLQGHOD\WLPH
W
6LJQDO7KUHVKROGYDOXHH[FHHGHG
0'
0'B352*B6,*1$/
B+<67(5(6,6
7ROHUDQFHEDQG
0'
0'B352*B
6,*1$/B
7+5(6+2/'
7KUHVKROG
Application
example(s)
With the variable signal function the machine tool manufacturer can monitor one additional
threshold value for specific applications for each axis/spindle and evaluate the result in the PLC
user program.
Example:
The interface signal:
DB31, ... DBX94.7 (variable signaling function)
should be set to a 1 if the motor torque exceeds 50 % of the rated torque.
Corresponding to .... MD1620 $MD_PROG_SIGNAL_FLAGS (bits variable signal function)
MD1621 $MD_PROG_SIGNAL_NR (signal number variable signal function)
MD1622 $MD_PROG_SIGNAL_ADDRESS (address variable signal function)
MD1623 $MD_PROG_SIGNAL_THRESHOLD (threshold variable signal function)
MD1624 $MD_PROG_SIGNAL_HYSTERESIS (hysteresis variable signal function)
MD1625 $MD_PROG_SIGNAL_ON_DELAY (on delay variable signal function)
MD1626 $MD_PROG_SIGNAL_OFF_DELAY (off delay variable signal function)
Additional references /IAD/ SINUMERIK 840D Installation and Startup Guide; Chapter: SIMODRIVE 611D
or
/IAC/ SINUMERIK 810D Installation and Start-up Guide
