Detailed Description
2.11 EMERGENCY STOP (N2)
Basic logic functions: NC/PLC interface signals (Z1)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
109
DB10
DBX56.2
Acknowledge EMERGENCY STOP
Edge evaluation: no Signal(s) updated: cyclic
Signal state 1 or
edge change
0 → 1
The EMERGENCY STOP state is only reset if the interface signal:
DB10 DBX56.2 (acknowledge EMERGENCY STOP)
is set followed by the interface signal:
DB11, ... DBX0.7 (mode group reset).
It must be noted that IS "Acknowledge EMERGENCY STOP" and IS "Reset" must be set (together)
for a long enough period so that the interface signal:
DB10 DBX106.1 (EMERGENCY STOP active)
was reset.
Resetting the EMERGENCY STOP state has the following effects:
• the controller enable is switched in
• Followup mode is canceled for all axes and position control mode resumed
• DB31, ... DBX61.5 set (position controller active)
• DB11, ... DBX6.3 set (mode group ready)
• DB10 DBX106.1 reset (EMERGENCY STOP active)
• Alarm 3000 is canceled
• Part program processing is interrupted for all channels

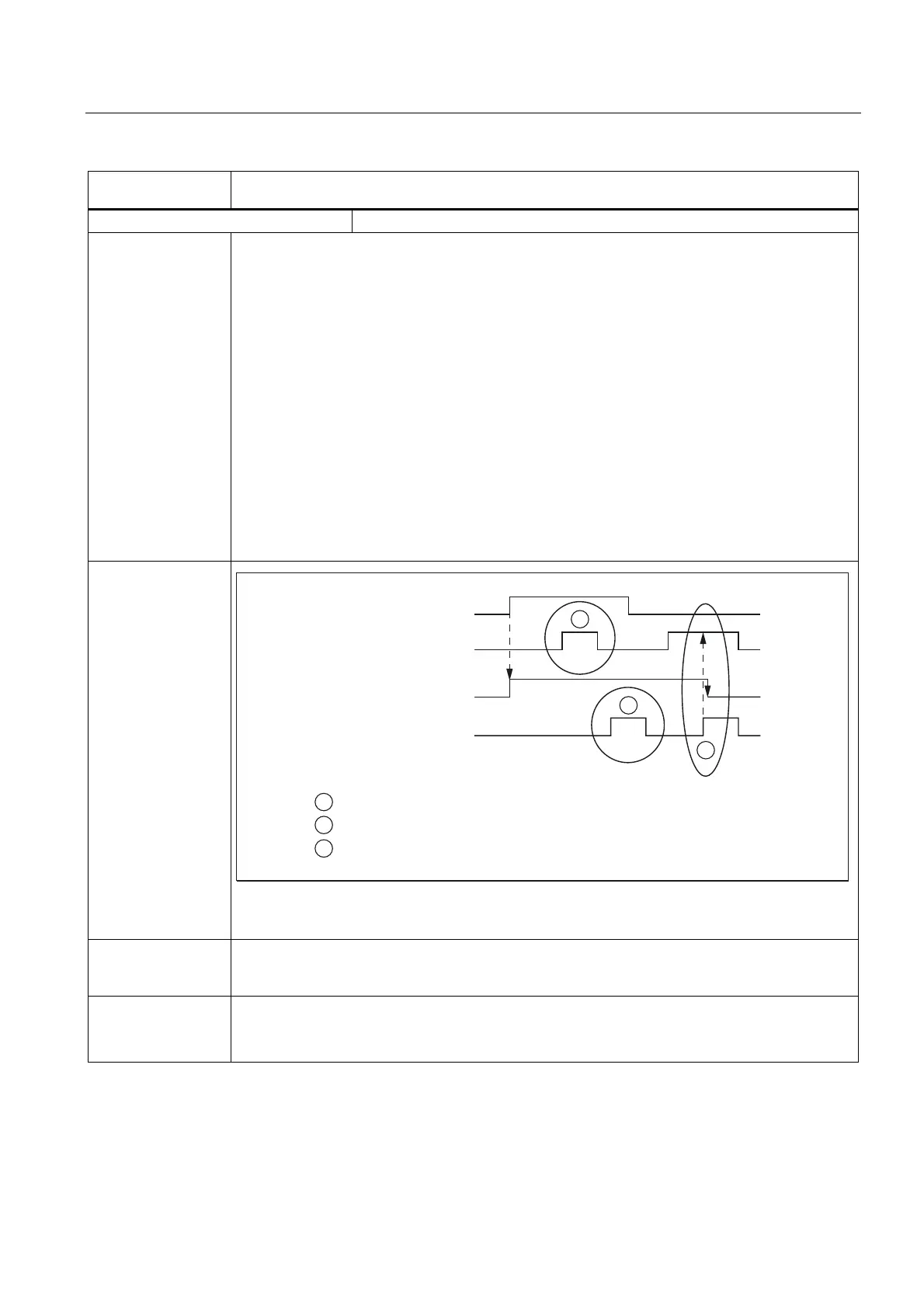

,6DNQRZOHGJH(0(5*(1&<6723
,6(0(5*(1&<6723DFWLYH"
,65(6(7
,65HVHWKDVQRHIIHFW
,6$FNQRZOHGJH(0(5*(1&<6723DQG5(6(7UHVHW(0(5*(1&<6723DFWLYH
,6$FNQRZOHGJH(0(5*(1&<6723KDVQRHIIHFW
,6(0(5*(1&<6723
Special cases,
errors, ......
The EMERGENCY STOP state cannot be reset using the interface signal:
DB21, ... DBX7.7 (reset).
Corresponding to .... DB10 DBX56.1 (EMERGENCY STOP)
DB10 DBX106.1 (acknowledge EMERGENCY STOP)
DB11 DBX0.7 (mode group reset)
