Detailed description
2.4 Program test
Basic logic functions: Mode group, channel, program operation, reset response (K1)
36 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
Functionality
When testing or breaking in new programs, it is useful to be able to disable or skip certain
part program blocks during program execution.
%100
N120 M30
N80 ...
N30 ...
Main program/subroutine
N10 ...
N20 ...
/N40 ...
/N50 ...
N60 ...
N70 ...
N90 ...
N100 ...
N110 ...
Block being
processed
Skip blocks
N40 and N50 during
processing

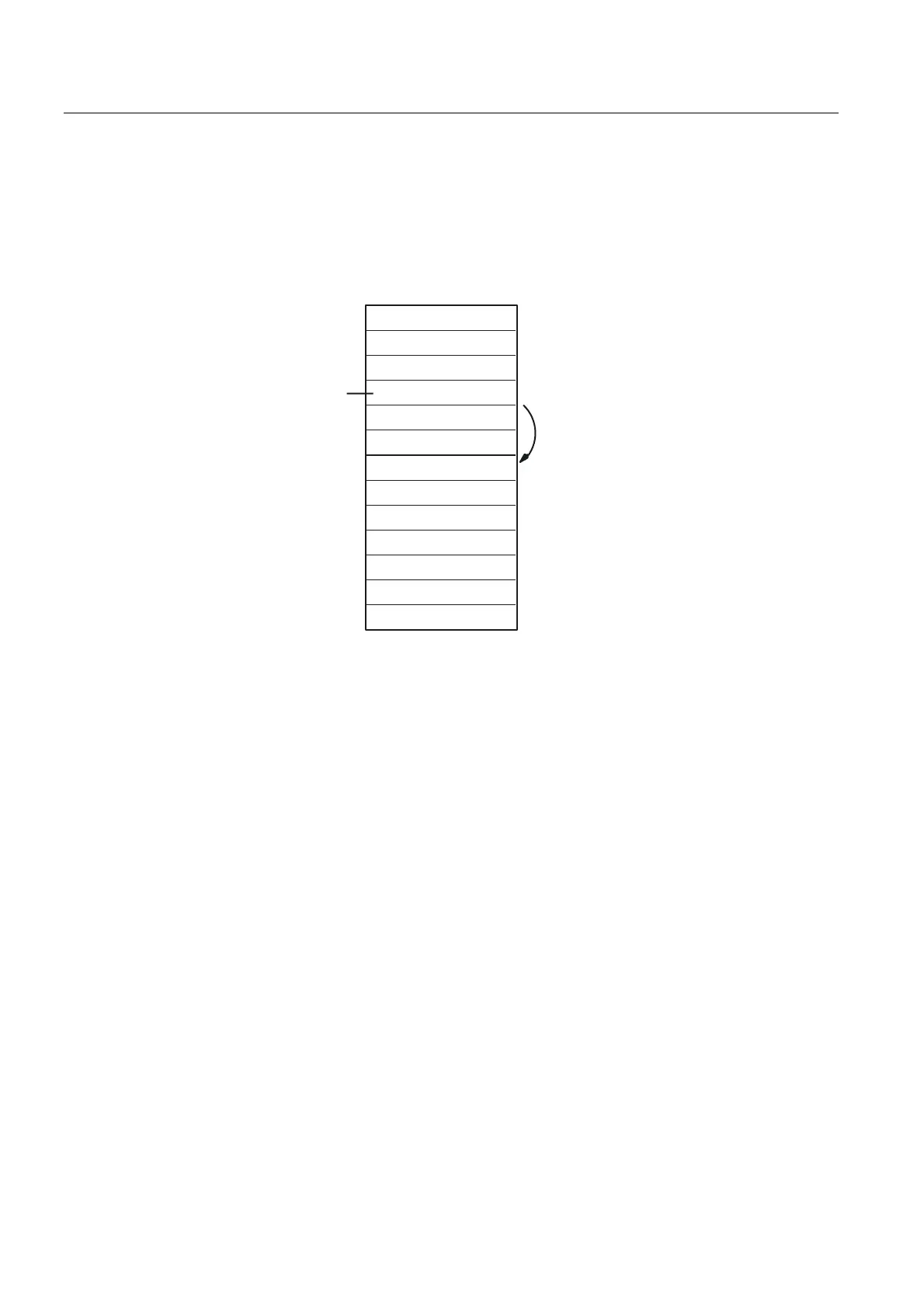

Figure 2-1 Skipping part program blocks
Selection
The skip function is selected via the operator interface in the "Program control" menu.
This selection sets interface signal:
DB21, ...DBX26.0 (Skip block selected).
This does not activate the function. In addition, a slash "/" must be placed before the blocks
to be skipped.
Activation
This function is activated via interface signal:
DB21, ... DBX2.0 (activate skip block)
The "Skip part programs" function remains active during block searches.
Display
Activated "Skip block" function is indicated by a reversal in the relevant field on the operator
interface.
