2.6 Block search Type 5 SERUPRO
Basic logic functions: Mode group, channel, program operation, reset response (K1)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
67
6WDUWSDUWSURJUDP
1
1 1
6WRSSDUWSURJUDP
6HOHFW501
5HDGRXW$68%
5HSRVLWLRQ
IURP5(326LVWHUPLQDWHG
7KHUHPDLQLQJEORFNVWDUWV
5HSRV3DWK0RGH$FN
5(32602'(('*($&.1
W
5(32602'(('*(
5(3263$7+02'(
&RPPDQGLVVWDUWHGZLWK$683
7KHUHPDLQLQJEORFN
LVILQLVKHG

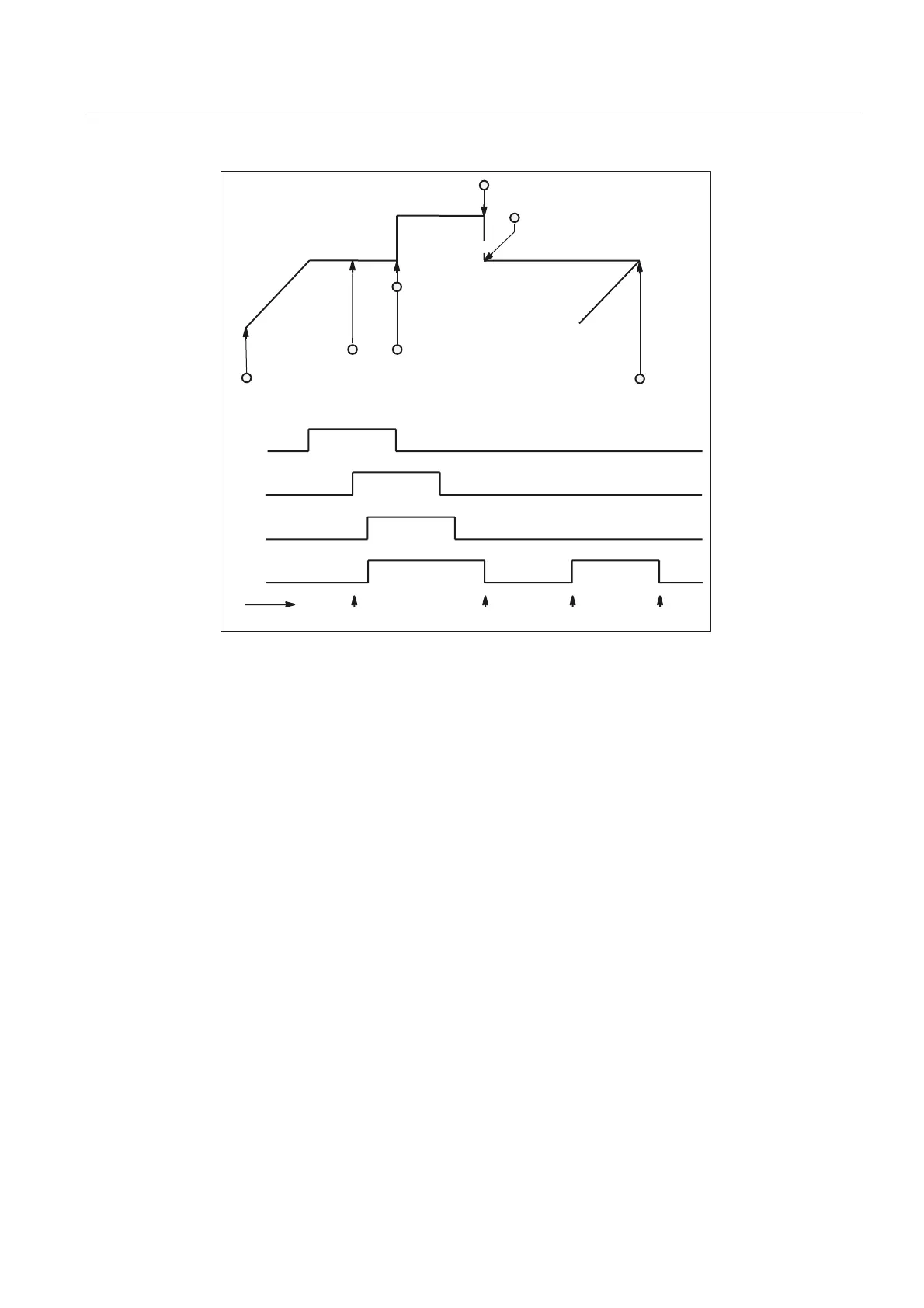

Figure 2-6 REPOS sequence in part program with timed acknowledgement signals from NCK
NCK sets acknowledgement again
Phase with REPOSPATHMODE still active (residual block of the program stopped at → Time
(2) is not yet completely executed).
As soon as the REPOS repositioning motion of the ASUB is executed, the NCK sets the
"Repos Path Mode Ackn" again (→ Time (5)). If no REPOSPATHMODE has been
preselected via a VDI signal, the programmed REPOS mode is displayed.
"Repos Path Mode Ackn" is canceled when the residual block is activated (→ Time (6)).
The part program block N30 following the block at → Time (2) is resumed.
The interface signal:
DB31, ... DBX70.2 (Repos Delay Ackn) is defined in the same way.
DB 31, ... DBX70.1 (Repos offset valid) = 1, if:
DB21, ... DBX319.1-319.3 (Repos Path Mode Ackn0 to 2) = 4 (RMN).
