2.3 Coordinate systems
Basic logic functions: Axes, coordinate systems, frames (K2)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
41

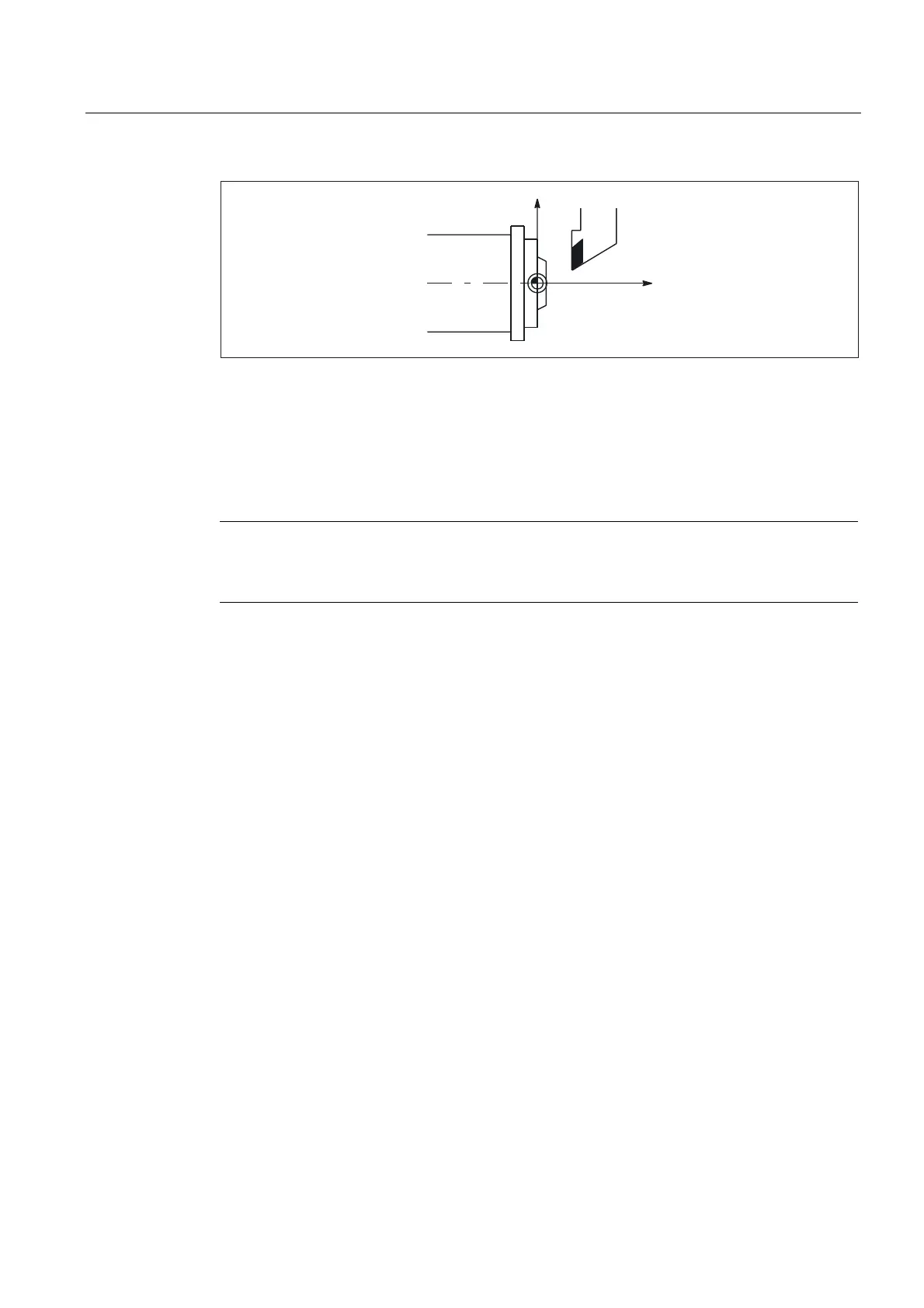

Figure 2-14 MCS with machine axes X, Z (turning machine)
Axial preset offset
The "Preset" function can be used to redefine the control zero in the machine coordinate
system. The preset values act on machine axes. Axes do not move when "Preset" is active.
Note
After Preset, the reference points are invalid!
If possible do not use this function.
