System
PAD Values
4-32 Strata CIX Programming Vol.1 12/09

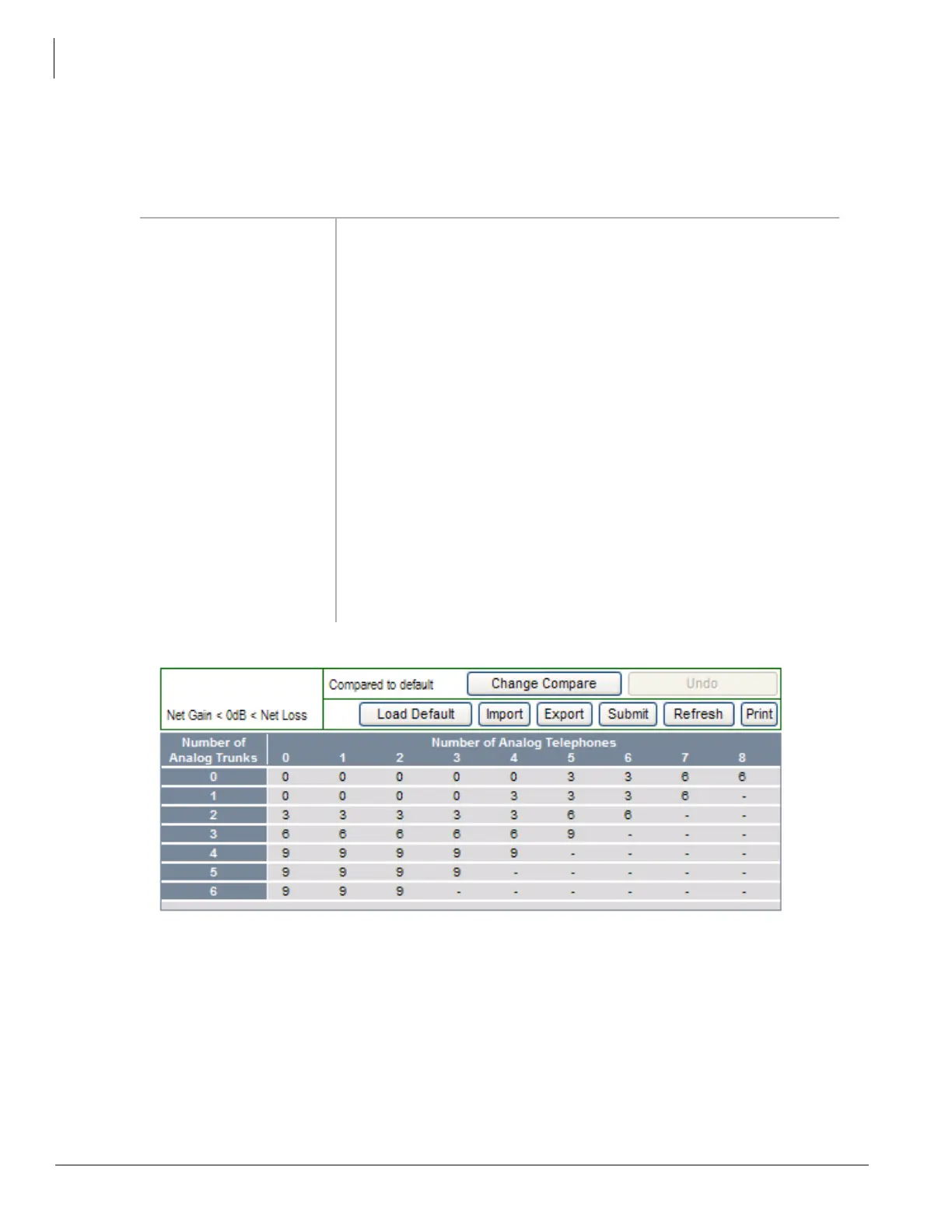

114 PAD Conference Assignment
This program enables you to assign PAD values for combinations of analog trunks and telephones in
conference.
F
IELD DESCRIPTION
01 PAD Conference
Trunks
Enter the number of analog trunks.
Possible values:0~6 (default = 0)
02 PAD Conference
Telephones
Enter the number of analog telephones.
Possible values:0~8 (default = 0)
03 PAD Conference
Value
Enter the desired PAD Value for the combination of analog trunks and
telephones specified in 01 PAD Conference Trunks and 02 PAD
Conference Telephones above. The value shown shows the net effect.
Note To pad is to insert loss; therefore, “negative loss” equals net
gain.
Possible values:1 = 6 dB Net Gain
2 = 3dB Net Gain
3 = 0dB
4 = 3dB Net Loss
5 = 6dB Net Loss
6 = 9dB Net Loss
7 = 12dB Net Los
8 = 15dB Net Loss
(default = no value).
