LCR Overview
9-12 Strata CIX Programming Vol.1 12/09
LCR Overview
LCR Analysis Process
The flowchart below represents the process by which the Strata CIX analyzes dialed digits and makes LCR
decisions. The graphic is divided into four areas each described below. DR and call connection are
described elsewhere in this document and are shown here only for their roles in the LCR process.

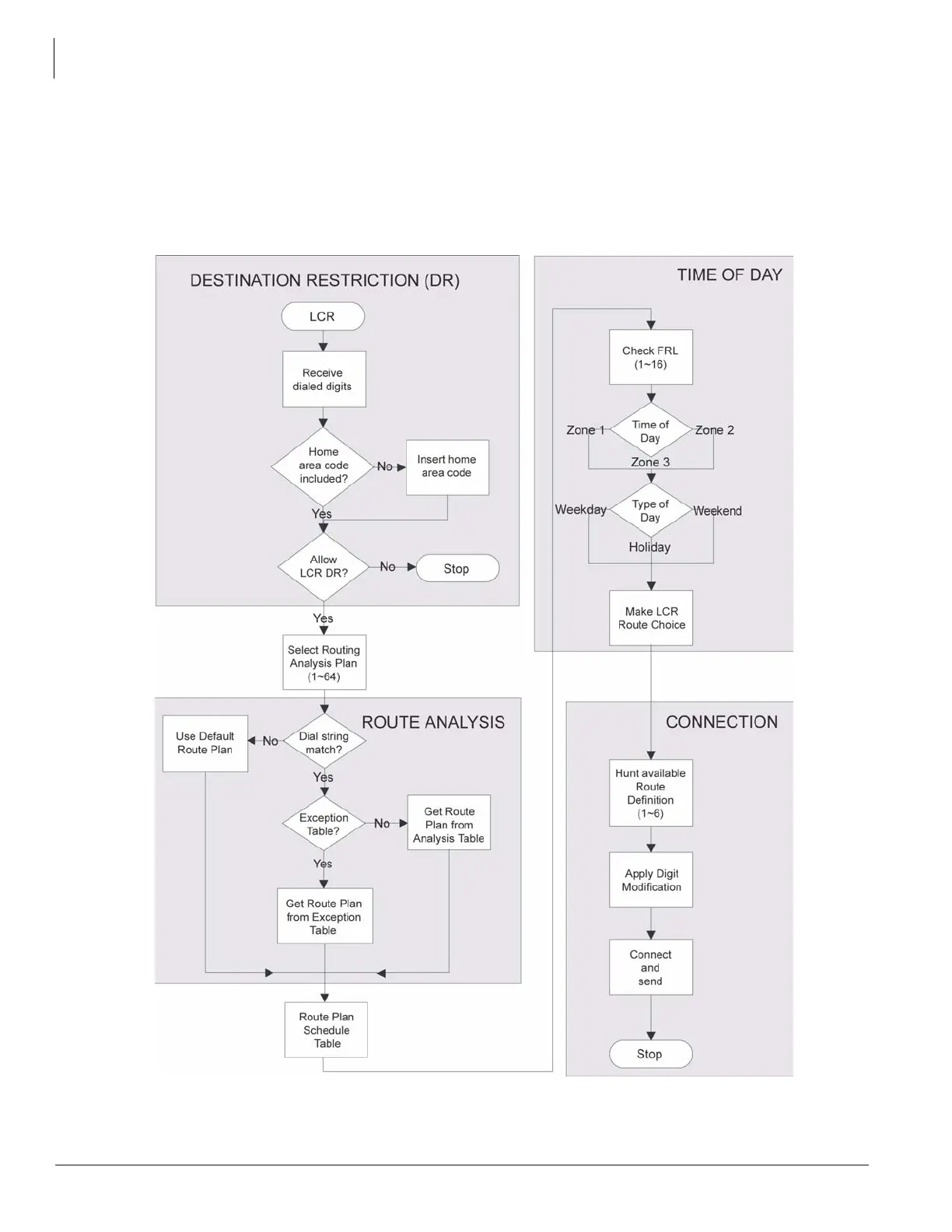

Figure 1 LCR Analysis Process Flow
