System
Miscellaneous System Commands
4-40 Strata CIX Programming Vol.1 12/09

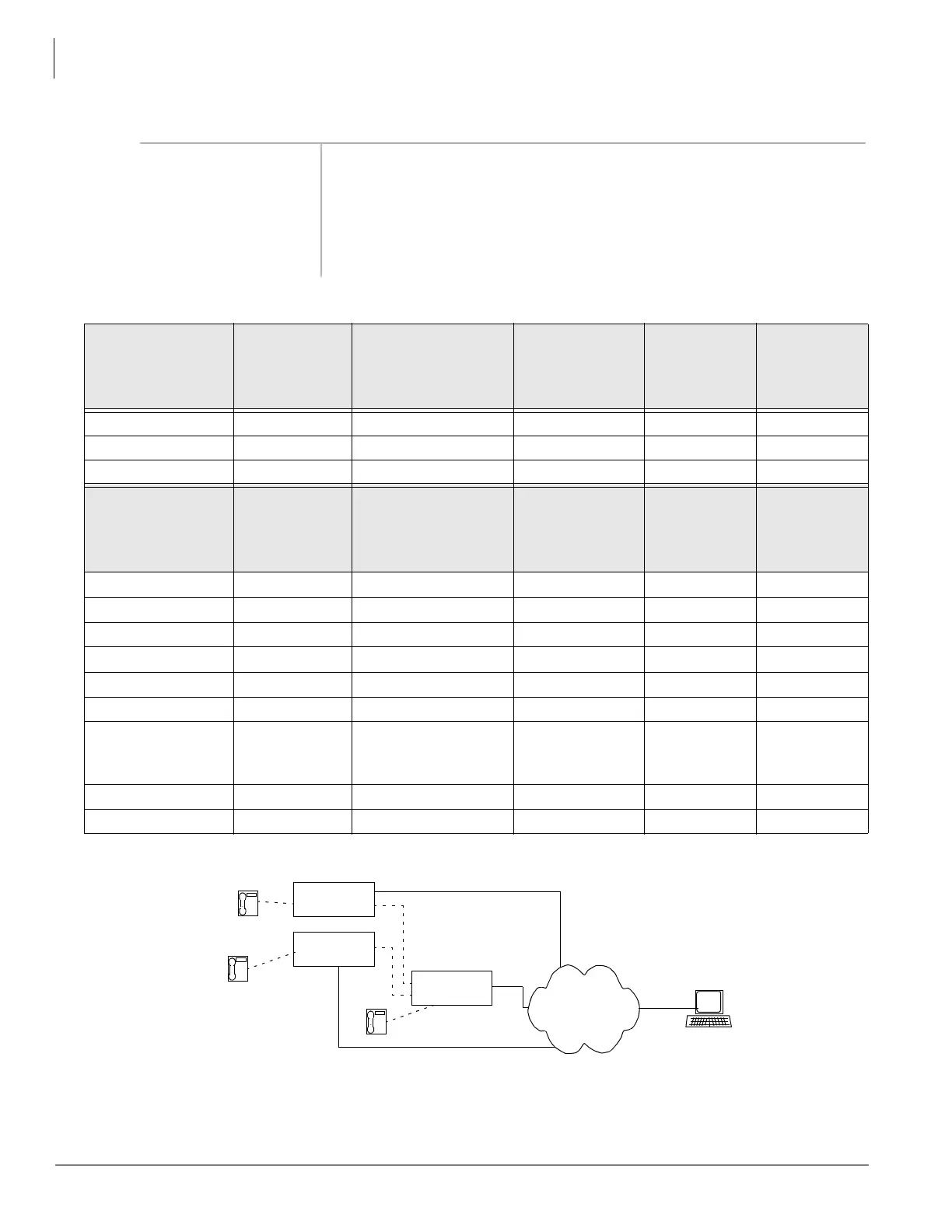

Table 4-4 I/O Device Information
Figure 4-1 SMDR LAN Connection in a Strata Net
08 Write Retry No. Set the maximum number of Write Retries.
Possible values: 0 ~ 10 (default = 1)
09 Caller Name Set To
CSTA
The Caller Name can be sent to the CSTA application.
Possible values:Yes - Net Phone (Set the Caller Name to CSTA) or
NO - Other CTI device (Do not send Caller Name) (Default)
Program 803
SMDR SMDI CTI
Port Assignments
Feature Flex
SMDI LAN
CIX Proprietary
MAS
SMDI LAN
CIX Proprietary
ES/IES32
BLF
Attendant
Console
DSS Buttons
(DSS
Console,
DKT, & ADM
Logical Device No. 208 CTI #8 300 SMDI #0 300 SMDI #0 400 BLF 500 DSS
Device Connection LAN LAN LAN LAN LAN
Device Port No 8 10 10 11 12
Program 801
LAN Device
Assignments
Feature Flex
SMDI LAN
CIX Proprietary
MAS
SMDI LAN
CIX Proprietary
ES/IES32
BLF
Attendant
Console
DSS Buttons
(DSS
Console,
DKT, & ADM
LAN Port No 8 10 10 11 12
Protocol TCP TCP TCP TCP UPD
PC Operation Type Server Client Client Server Server
Data Flow Asynchronous Asynchronous Asynchronous Asynchronous Asynchronous
Server Port No. 1117 0 0 6000 3000
Client Port No. 0 1000 5000 0 0
Client IP 0
IP address of MAS
192.168.254.252
IP address of
ES / IES32
192.168.254.252
0 0 0 0 0 0 0 0
Retry No. 1 1 1 1 1
Write Retry Counter 1 1 1 1 1
F
IELD DESCRIPTION
CIX/CTX
SMDR
CIX/CTX
CIX/CTX
Strata Net
LAN
Call Accounting
or
WAN
