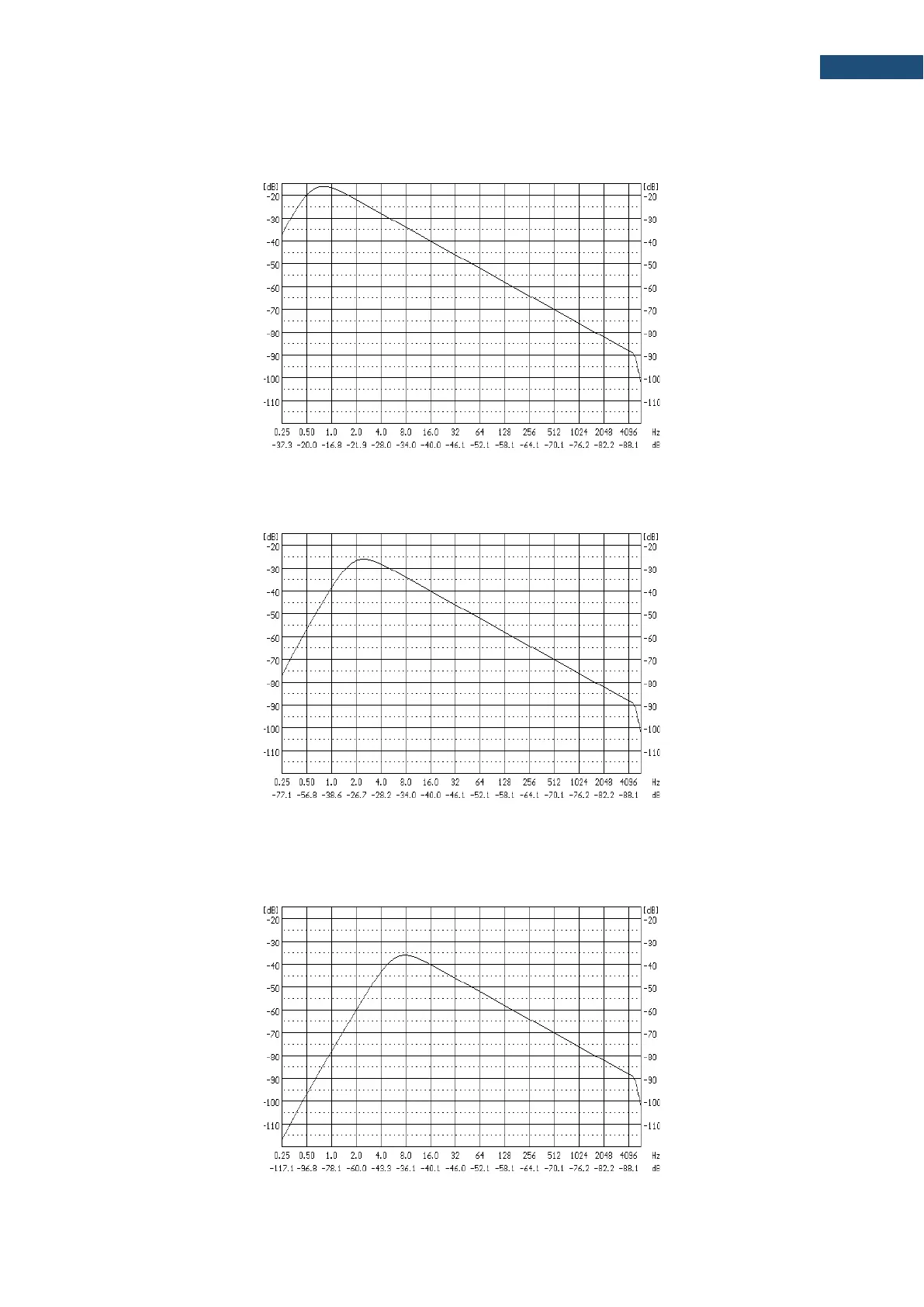

C.4.2.2 Digital filters implemented in vibration modes for velocity measurements
“Vel1” filter is used for velocity measurements (vibration signal) in the frequency range 1 Hz - 20 kHz.
“Vel1” filter characteristics
“Vel3” filter is used for velocity measurements (vibration signal) in the frequency range 3.5 Hz - 20 kHz.
“Vel3” filter characteristics
“Vel10” filter is used for velocity measurements (vibration signal) in the frequency range 10 Hz - 20 kHz.
“Vel10” filter characteristics
