SVAN 979 User Manual - Appendixes

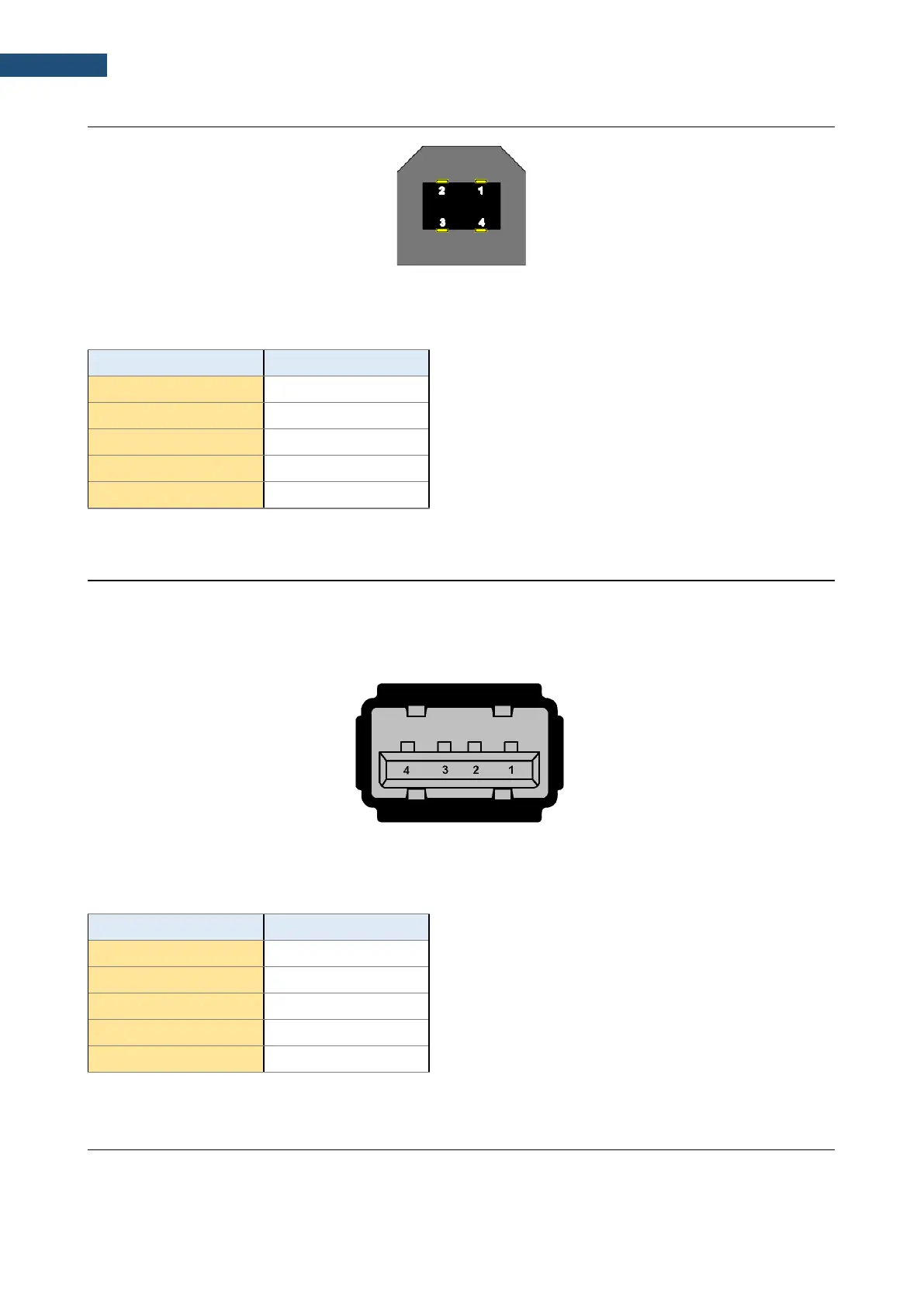

USB Device port
USB socket (external view)
Table C.5.4. Pin-out of the USB-Device connector
Serial USB Host port
SVAN 979 Serial Port provides data transfer using RS232 data format but in TTL logic standard
Supported USB disks up to 32 GB.
Serial Port socket (external view)
Table C.5.5. Pin-out of the Serial Port (USB-Host connector)
RS 232 interface (optional)
The RS 232 interface option for SVAN 979 is provided by means of the SV 55 interface. It conforms to the EIA
Standard RS 232C. It enables the user to program remotely all instrument functions and the transmissions to
and from the meter with the speed from 1200 bit/s to 115200 bit/s.
