4.4. GENERAL INFORMATION ABOUT THE GENERATE
MODE
The GENERATE mode is the mode of operation where the T703/T703U is
actively producing calibration gas, either zero or some specified concentration of
ozone. In the GENERATE mode the Zero Air Pump (if enabled) and
Photometer Pump are turned on.

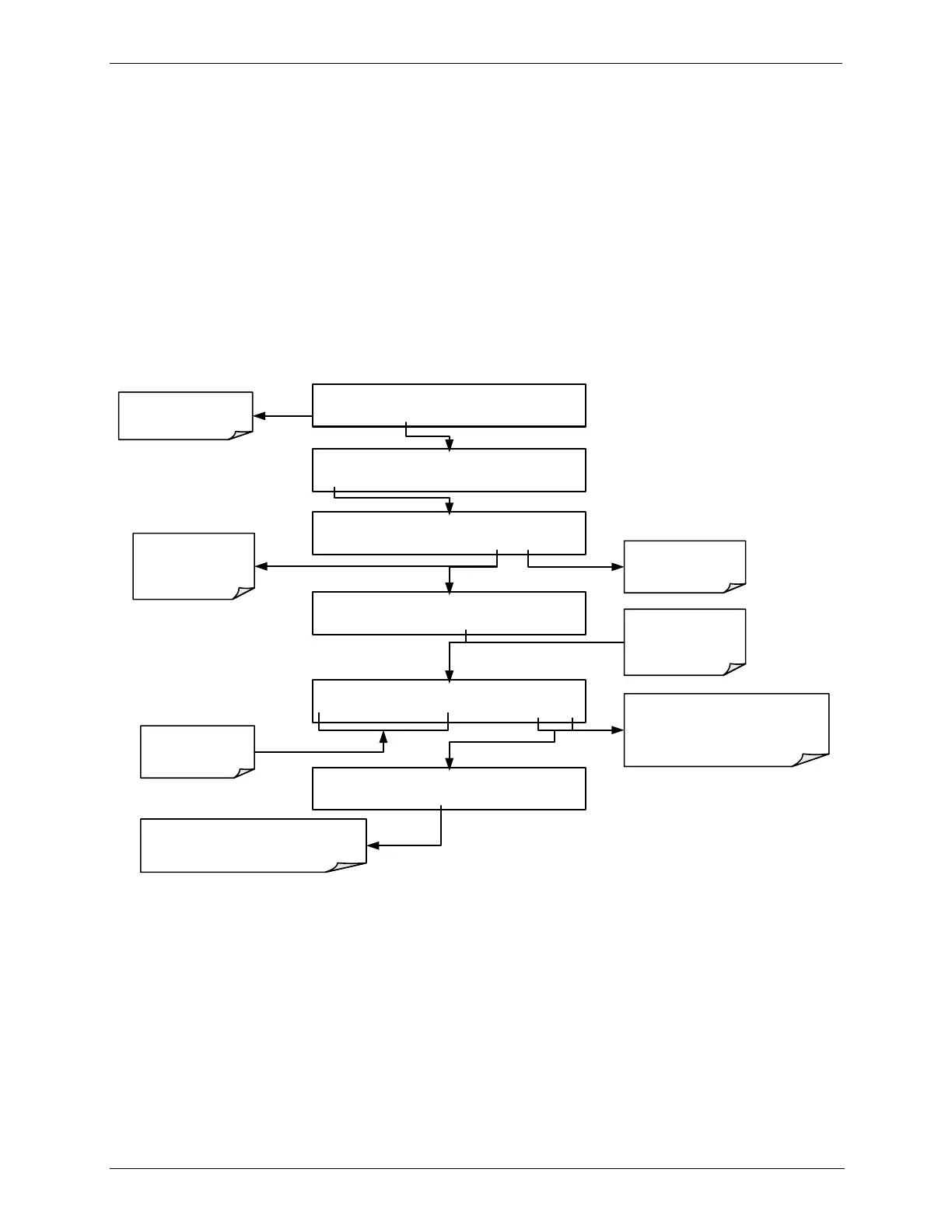

GENERATE > AUTO: BASIC GENERATION OF CALIBRATION 4.4.1.
GAS
This is the simplest procedure for generating calibration gas mixtures. To
generate calibration gas, press
EXIT discards the new gas type &
target concentration
ENTR accepts the new gas type &
target concentration
GENERATE GENERATE:0.0 PPB O3
0 0 0 .0 PPB O3 ENTR EXIT
Make sure that the
calibrator is in
STANDBY mode
STANDBY SYSTEM RESET
AUTO
STANDBY GENERATE:ZERO
ZERO ENTR SETUP
STANDBY ACT CAL=30 PPB O3
TEST GEN STBY SEQ MSG CLR SETUP
GENERATE GENERATE:0.0 PPB O3
0 0 0 .0 PPB O3 ENTR EXIT
Toggle these
buttons to set the
target
concentration.
Toggle to to scroll
through the
available units of
measure
The calibrator will stay in generate
mode until the STBY button is
pressed.
STANDBY ACT =STANDBY
<TST TST> GEN STBY SEQ SETUP
Press ENTR now to
generate ZERO air.
Toggle to switch to
O
3
generation
The calibrator will now enter GENERATE mode.
4.5. AUTOMATIC CALIBRATION SEQUENCES
The T703/T703U calibrator can be set up to perform automatic calibration
sequences of multiple steps. These sequences can perform all of the calibration
operations available for manual operation and can be set up to be triggered by
using the front panel touch screen buttons, the internal timer, the external digital
control inputs, the RS-232 interface, the Ethernet interface or even as sub-
processes in another sequence.
To Next Page
