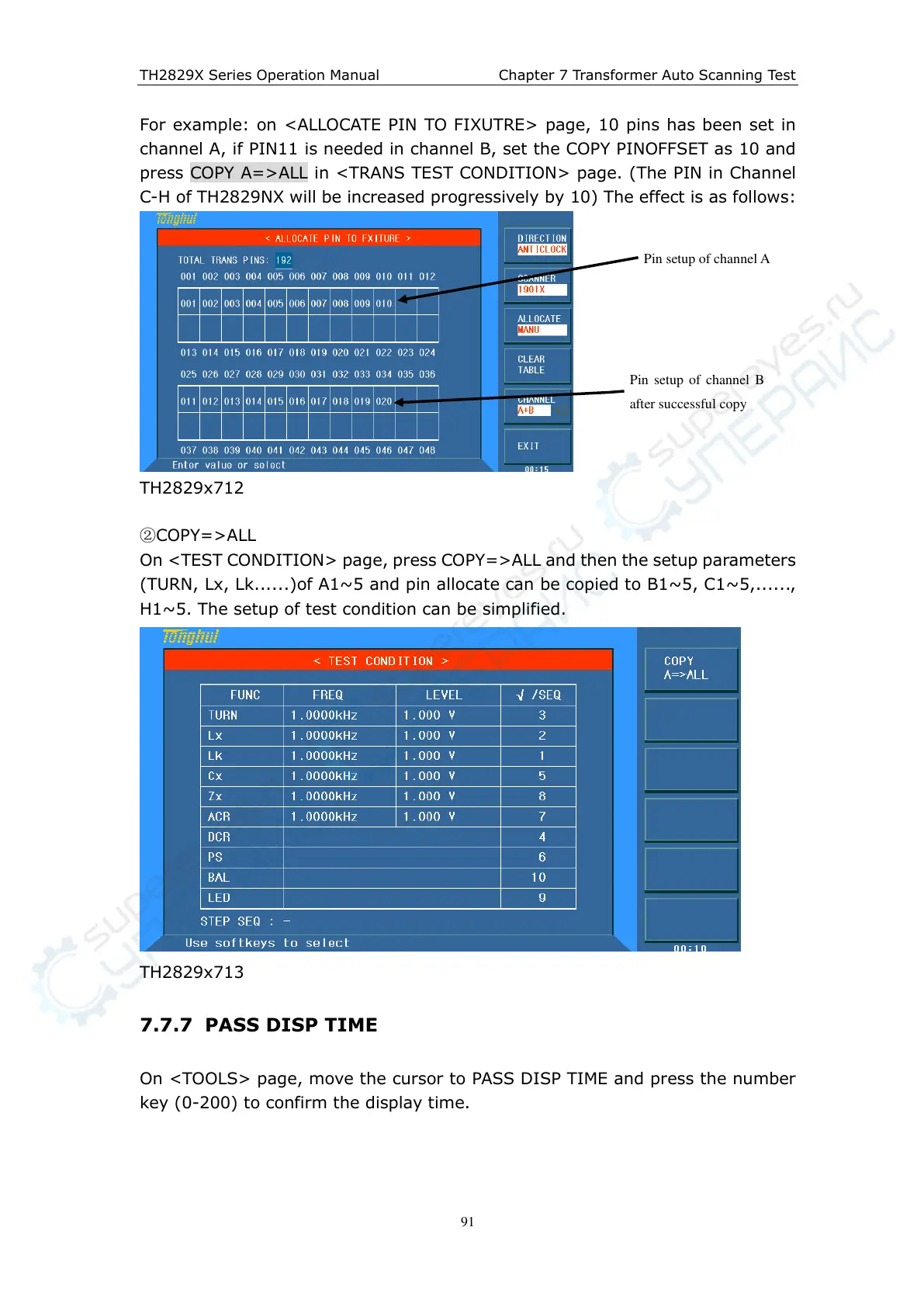

TH2829X Series Operation Manual Chapter 7 Transformer Auto Scanning Test
For example: on <ALLOCATE PIN TO FIXUTRE> page, 10 pins has been set in
channel A, if PIN11 is needed in channel B, set the COPY PINOFFSET as 10 and
press COPY A=>ALL in <TRANS TEST CONDITION> page. (The PIN in Channel
C-H of TH2829NX will be increased progressively by 10) The effect is as follows:
TH2829x712
②COPY=>ALL
On <TEST CONDITION> page, press COPY=>ALL and then the setup parameters
(TURN, Lx, Lk......)of A1~5 and pin allocate can be copied to B1~5, C1~5,......,
H1~5. The setup of test condition can be simplified.
TH2829x713
7.7.7 PASS DISP TIME
On <TOOLS> page, move the cursor to PASS DISP TIME and press the number
key (0-200) to confirm the display time.
Pin setup of channel B
after successful copy
