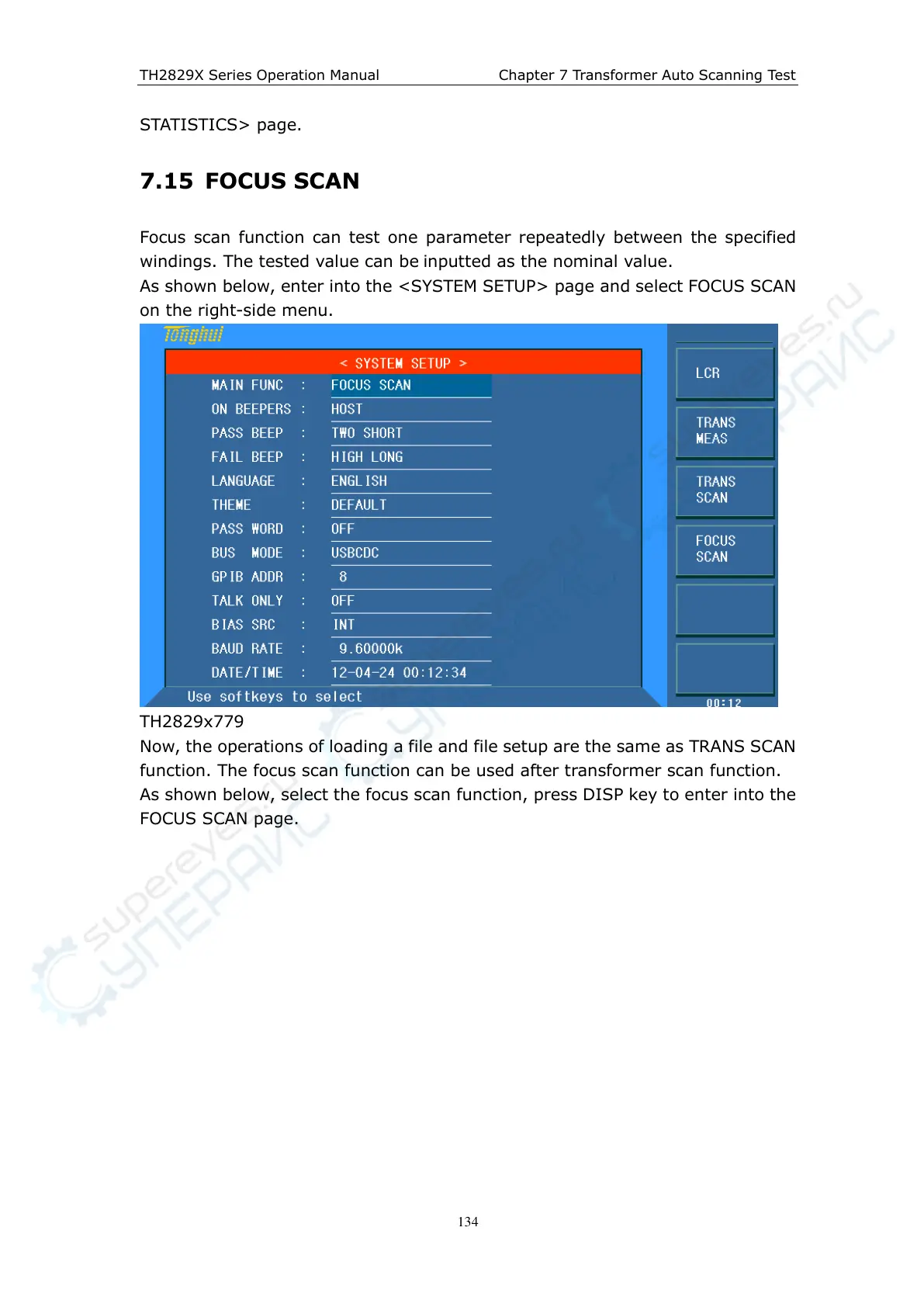

TH2829X Series Operation Manual Chapter 7 Transformer Auto Scanning Test
STATISTICS> page.
7.15 FOCUS SCAN
Focus scan function can test one parameter repeatedly between the specified
windings. The tested value can be inputted as the nominal value.
As shown below, enter into the <SYSTEM SETUP> page and select FOCUS SCAN
on the right-side menu.
TH2829x779
Now, the operations of loading a file and file setup are the same as TRANS SCAN
function. The focus scan function can be used after transformer scan function.
As shown below, select the focus scan function, press DISP key to enter into the
FOCUS SCAN page.
