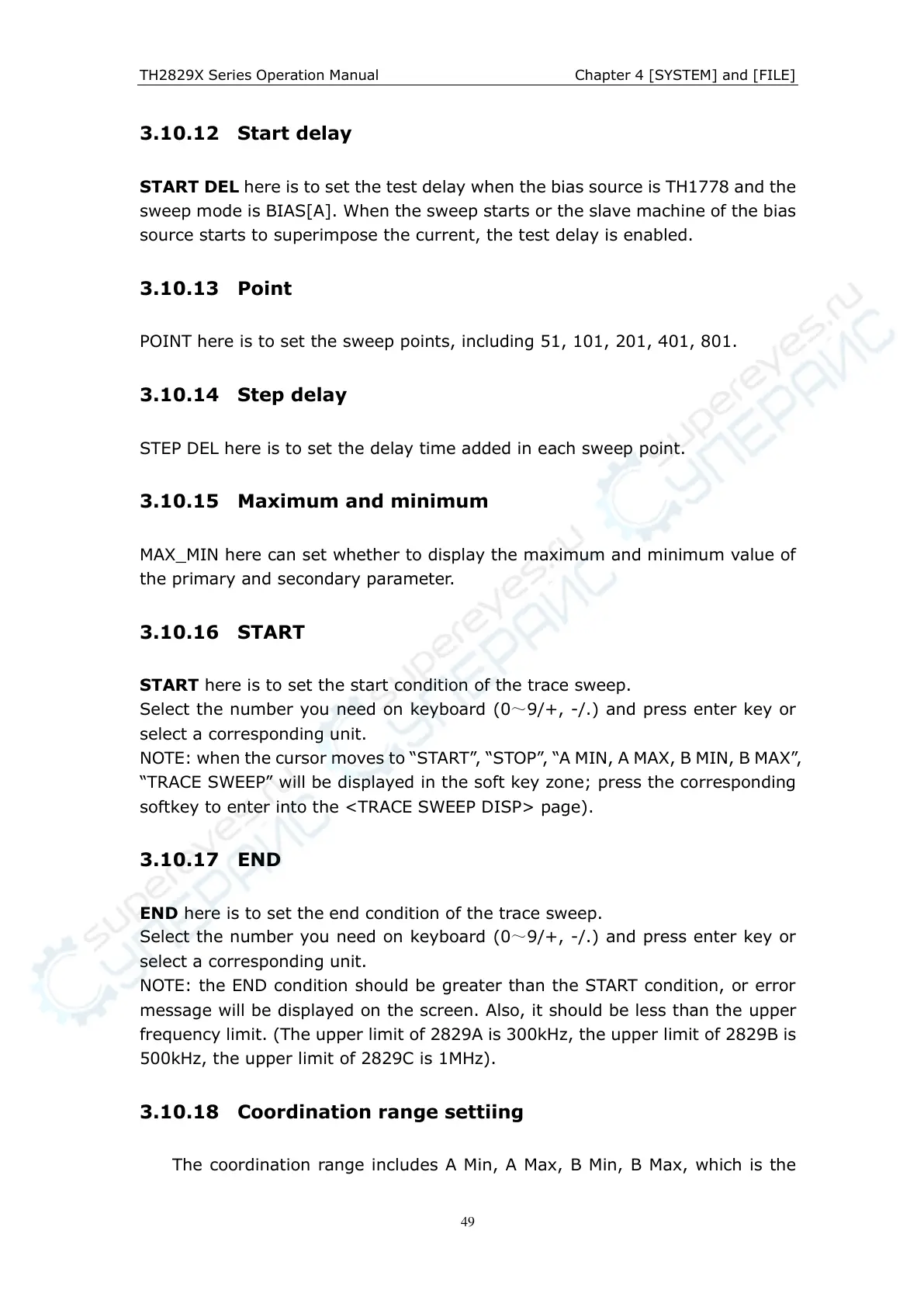

TH2829X Series Operation Manual Chapter 4 [SYSTEM] and [FILE]
49
3.10.12 Start delay
START DEL here is to set the test delay when the bias source is TH1778 and the
sweep mode is BIAS[A]. When the sweep starts or the slave machine of the bias
source starts to superimpose the current, the test delay is enabled.
3.10.13 Point
POINT here is to set the sweep points, including 51, 101, 201, 401, 801.
3.10.14 Step delay
STEP DEL here is to set the delay time added in each sweep point.
3.10.15 Maximum and minimum
MAX_MIN here can set whether to display the maximum and minimum value of
the primary and secondary parameter.
3.10.16 START
START here is to set the start condition of the trace sweep.
Select the number you need on keyboard (0～9/+, -/.) and press enter key or
select a corresponding unit.
NOTE: when the cursor moves to “START”, “STOP”, “A MIN, A MAX, B MIN, B MAX”,
“TRACE SWEEP” will be displayed in the soft key zone; press the corresponding
softkey to enter into the <TRACE SWEEP DISP> page).
3.10.17 END
END here is to set the end condition of the trace sweep.
Select the number you need on keyboard (0～9/+, -/.) and press enter key or
select a corresponding unit.
NOTE: the END condition should be greater than the START condition, or error
message will be displayed on the screen. Also, it should be less than the upper
frequency limit. (The upper limit of 2829A is 300kHz, the upper limit of 2829B is
500kHz, the upper limit of 2829C is 1MHz).
3.10.18 Coordination range settiing
The coordination range includes A Min, A Max, B Min, B Max, which is the
