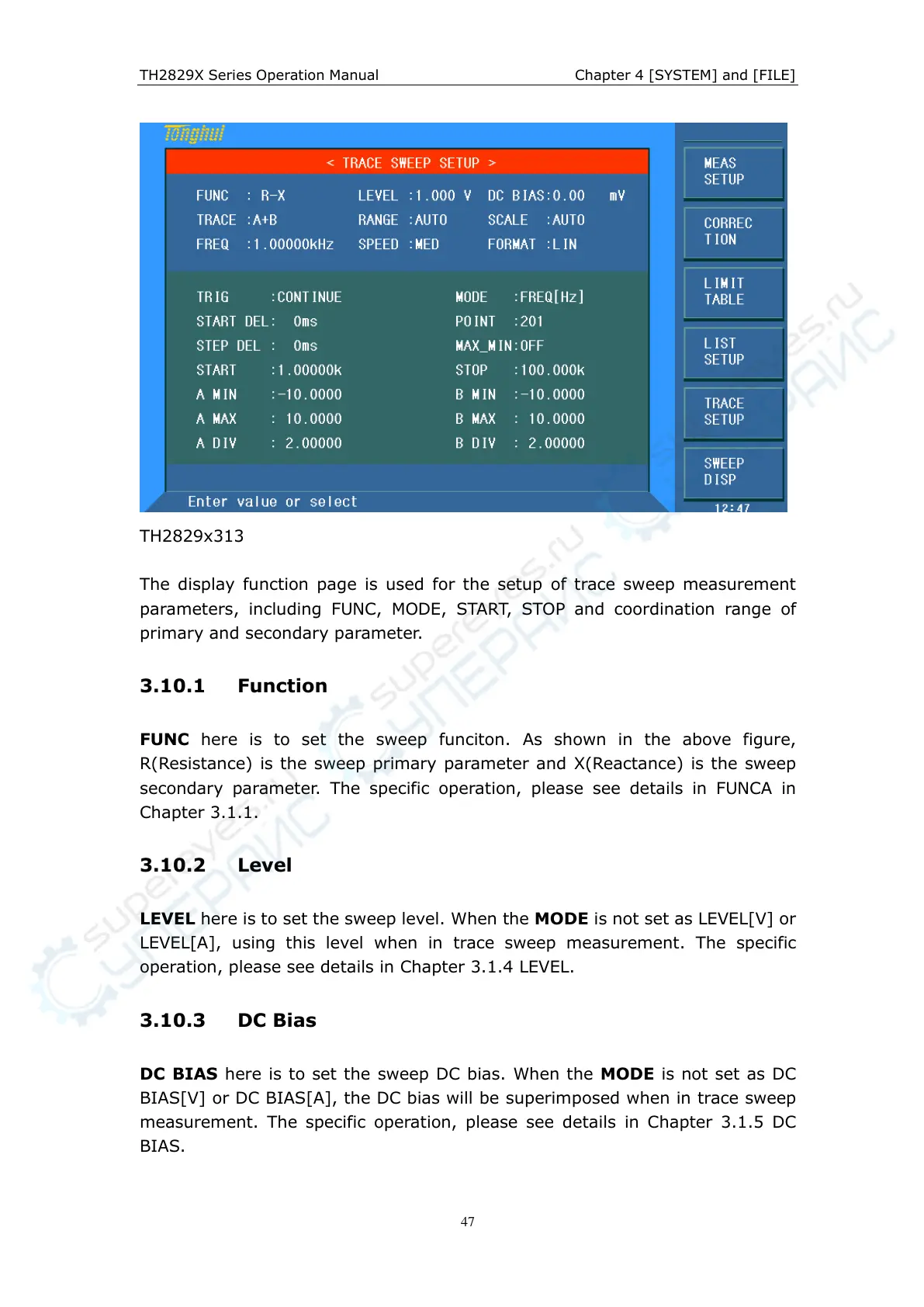

TH2829x313
The display function page is used for the setup of trace sweep measurement
parameters, including FUNC, MODE, START, STOP and coordination range of
primary and secondary parameter.
3.10.1 Function
FUNC here is to set the sweep funciton. As shown in the above figure,
R(Resistance) is the sweep primary parameter and X(Reactance) is the sweep
secondary parameter. The specific operation, please see details in FUNCA in
Chapter 3.1.1.
3.10.2 Level
LEVEL here is to set the sweep level. When the MODE is not set as LEVEL[V] or
LEVEL[A], using this level when in trace sweep measurement. The specific
operation, please see details in Chapter 3.1.4 LEVEL.
3.10.3 DC Bias
DC BIAS here is to set the sweep DC bias. When the MODE is not set as DC
BIAS[V] or DC BIAS[A], the DC bias will be superimposed when in trace sweep
measurement. The specific operation, please see details in Chapter 3.1.5 DC
BIAS.
