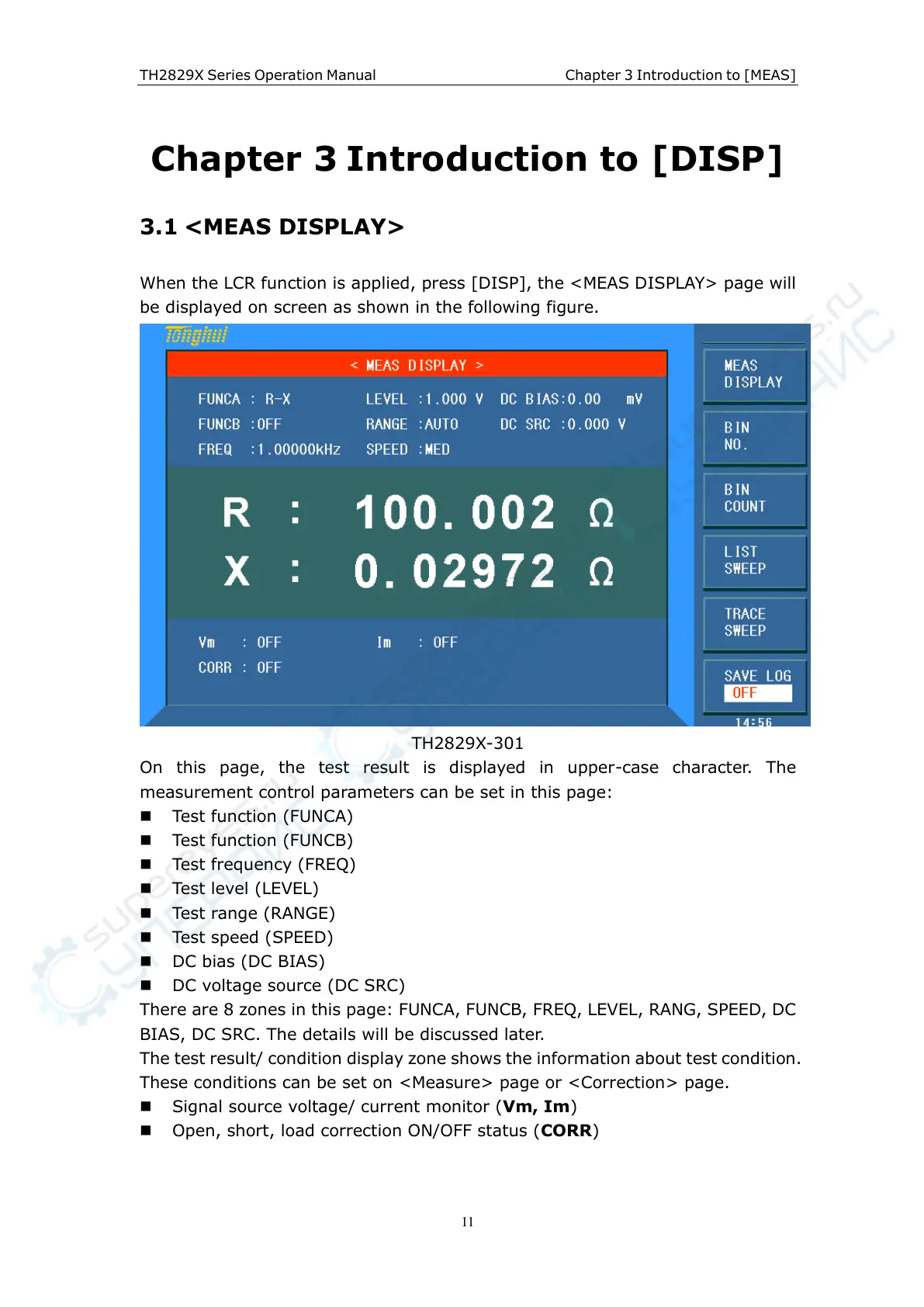

TH2829X Series Operation Manual Chapter 3 Introduction to [MEAS]
Chapter 3 Introduction to [DISP]
3.1 <MEAS DISPLAY>
When the LCR function is applied, press [DISP], the <MEAS DISPLAY> page will
be displayed on screen as shown in the following figure.
TH2829X-301
On this page, the test result is displayed in upper-case character. The
measurement control parameters can be set in this page:
Test function (FUNCA)
Test function (FUNCB)
Test frequency (FREQ)
Test level (LEVEL)
Test range (RANGE)
Test speed (SPEED)
DC bias (DC BIAS)
DC voltage source (DC SRC)
There are 8 zones in this page: FUNCA, FUNCB, FREQ, LEVEL, RANG, SPEED, DC
BIAS, DC SRC. The details will be discussed later.
The test result/ condition display zone shows the information about test condition.
These conditions can be set on <Measure> page or <Correction> page.
Signal source voltage/ current monitor (Vm, Im)
Open, short, load correction ON/OFF status (CORR)
