TH2829X Series Operation Manual Chapter 7 Transformer Auto Scanning Test
82
使用后，请用罩子盖上，防止灰尘进入.
为保证测试准确性，请及时清洁测试簧片；
TH1801B TRANSFORMER TEST FIXTURE
15
变压器测试前，请务必整脚；
※
※
※
测
试
夹
具
对
应
脚
位
敬告：
!
1
5
TONGHUI
ELECTRONICS
20
1
7 6 5 4
START
10
NG
RESET
GOOD
11
2 3

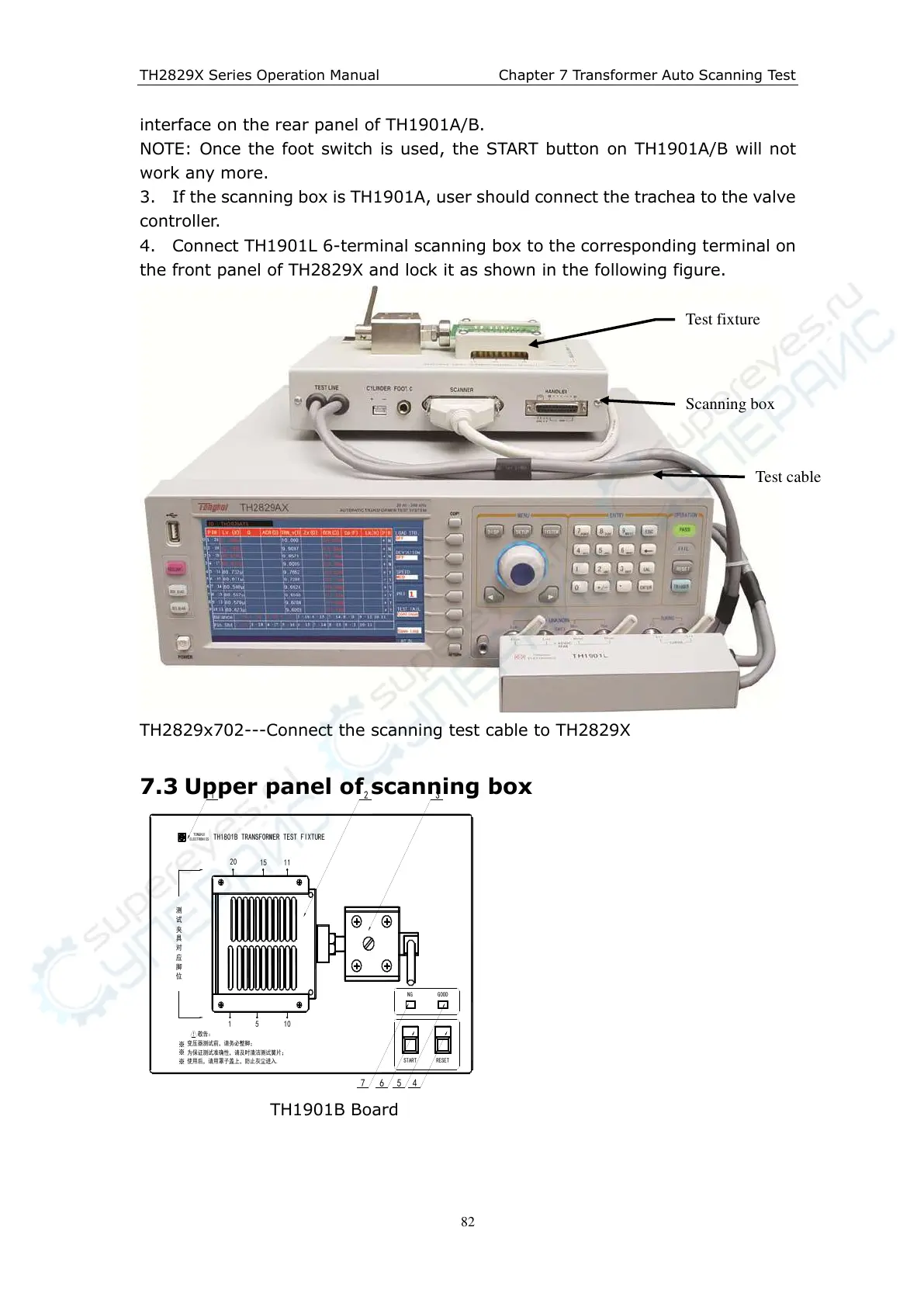

interface on the rear panel of TH1901A/B.
NOTE: Once the foot switch is used, the START button on TH1901A/B will not
work any more.
3. If the scanning box is TH1901A, user should connect the trachea to the valve
controller.
4. Connect TH1901L 6-terminal scanning box to the corresponding terminal on
the front panel of TH2829X and lock it as shown in the following figure.
TH2829x702---Connect the scanning test cable to TH2829X
7.3 Upper panel of scanning box
TH1901B Board
Test fixture
Scanning box
Test cable
