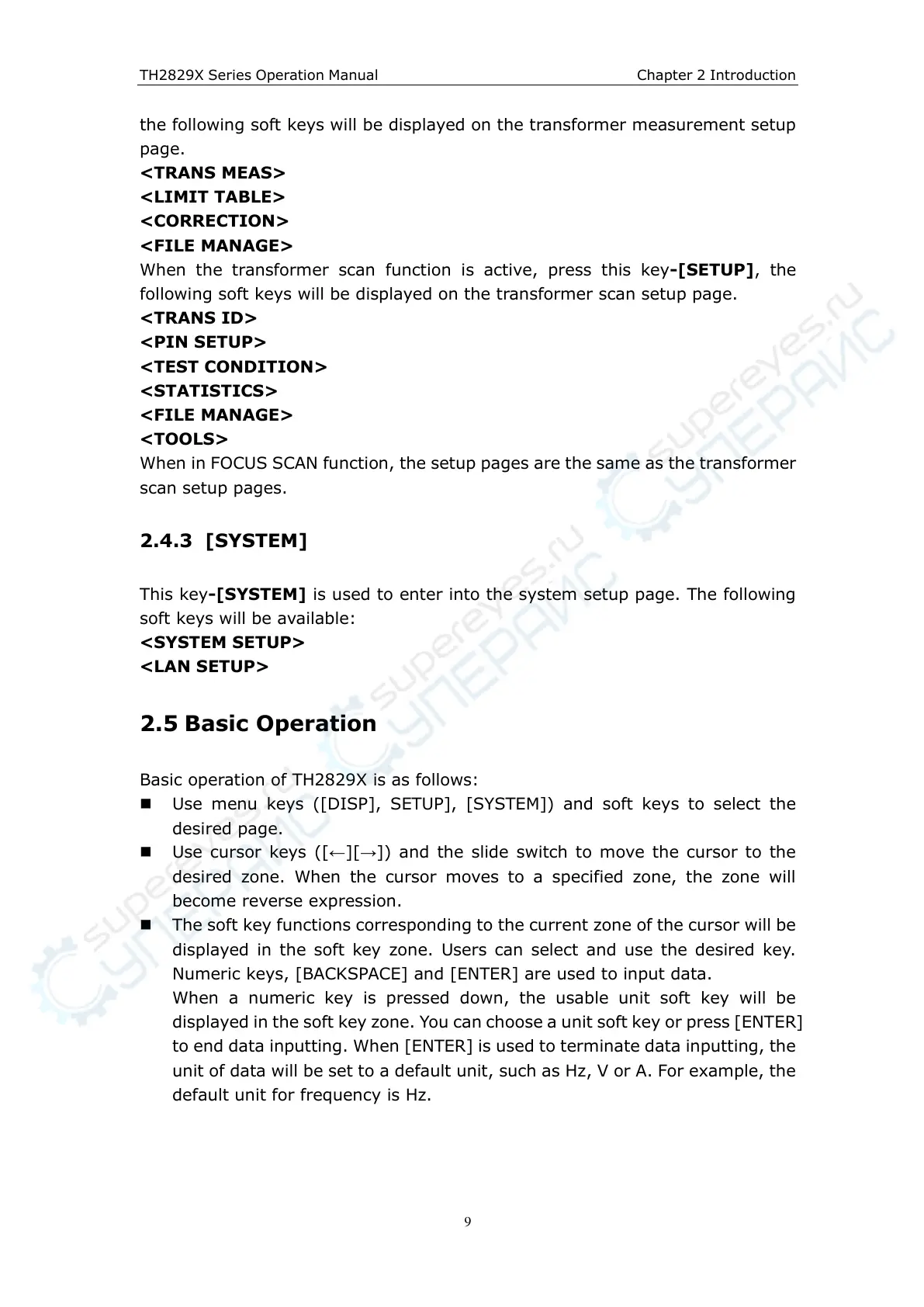

TH2829X Series Operation Manual Chapter 2 Introduction
the following soft keys will be displayed on the transformer measurement setup
page.
<TRANS MEAS>
<LIMIT TABLE>
<CORRECTION>
<FILE MANAGE>
When the transformer scan function is active, press this key-[SETUP], the
following soft keys will be displayed on the transformer scan setup page.
<TRANS ID>
<PIN SETUP>
<TEST CONDITION>
<STATISTICS>
<FILE MANAGE>
<TOOLS>
When in FOCUS SCAN function, the setup pages are the same as the transformer
scan setup pages.
2.4.3 [SYSTEM]
This key-[SYSTEM] is used to enter into the system setup page. The following
soft keys will be available:
<SYSTEM SETUP>
<LAN SETUP>
2.5 Basic Operation
Basic operation of TH2829X is as follows:
Use menu keys ([DISP], SETUP], [SYSTEM]) and soft keys to select the
desired page.
Use cursor keys ([←][→]) and the slide switch to move the cursor to the
desired zone. When the cursor moves to a specified zone, the zone will
become reverse expression.
The soft key functions corresponding to the current zone of the cursor will be
displayed in the soft key zone. Users can select and use the desired key.
Numeric keys, [BACKSPACE] and [ENTER] are used to input data.
When a numeric key is pressed down, the usable unit soft key will be
displayed in the soft key zone. You can choose a unit soft key or press [ENTER]
to end data inputting. When [ENTER] is used to terminate data inputting, the
unit of data will be set to a default unit, such as Hz, V or A. For example, the
default unit for frequency is Hz.
