7.18 Self-check function of scanner relay
7.18.1 Operation steps for scan self-check

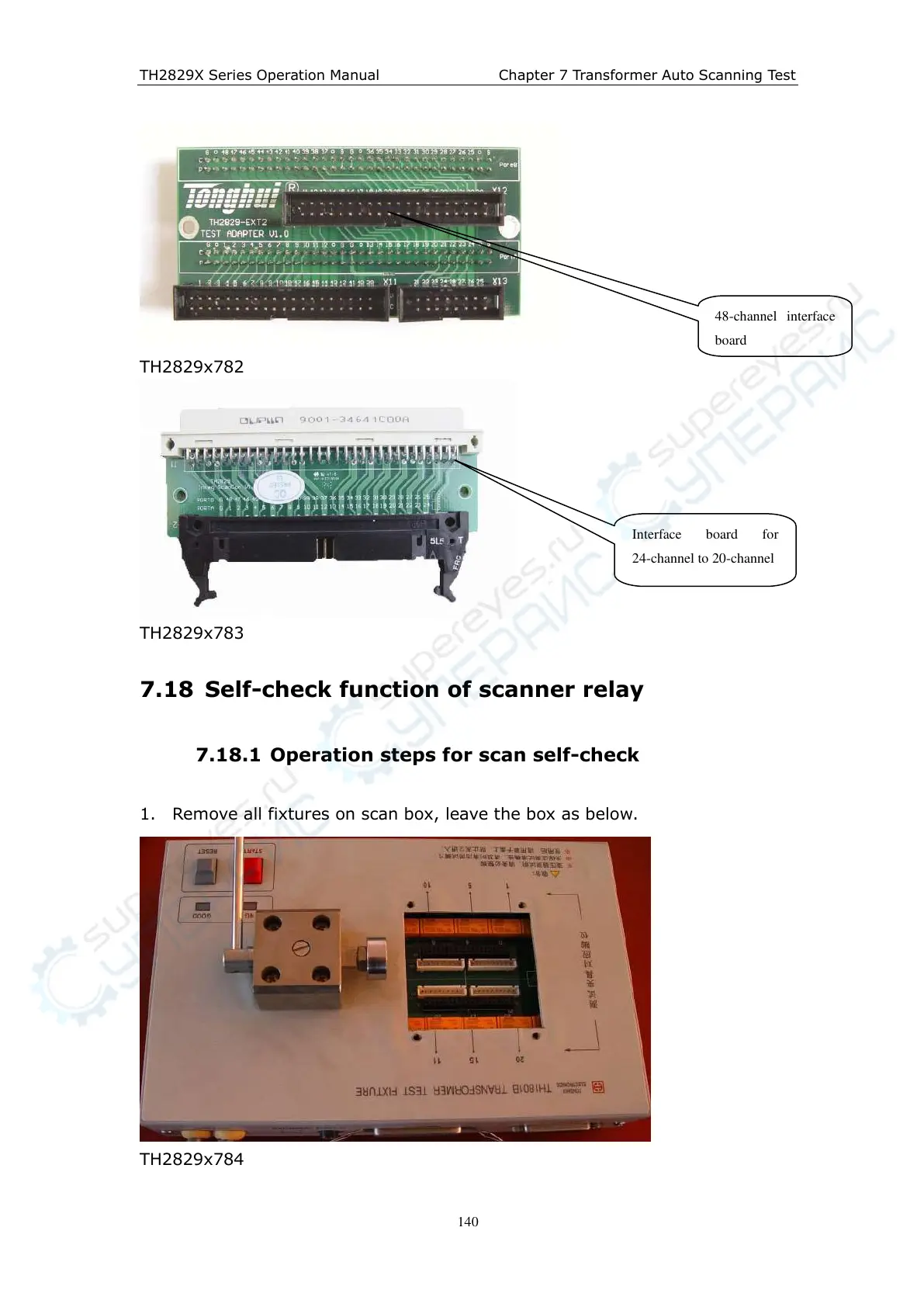

1. Remove all fixtures on scan box, leave the box as below.
TH2829x784
Interface board for
24-channel to 20-channel
48-channel interface
board
