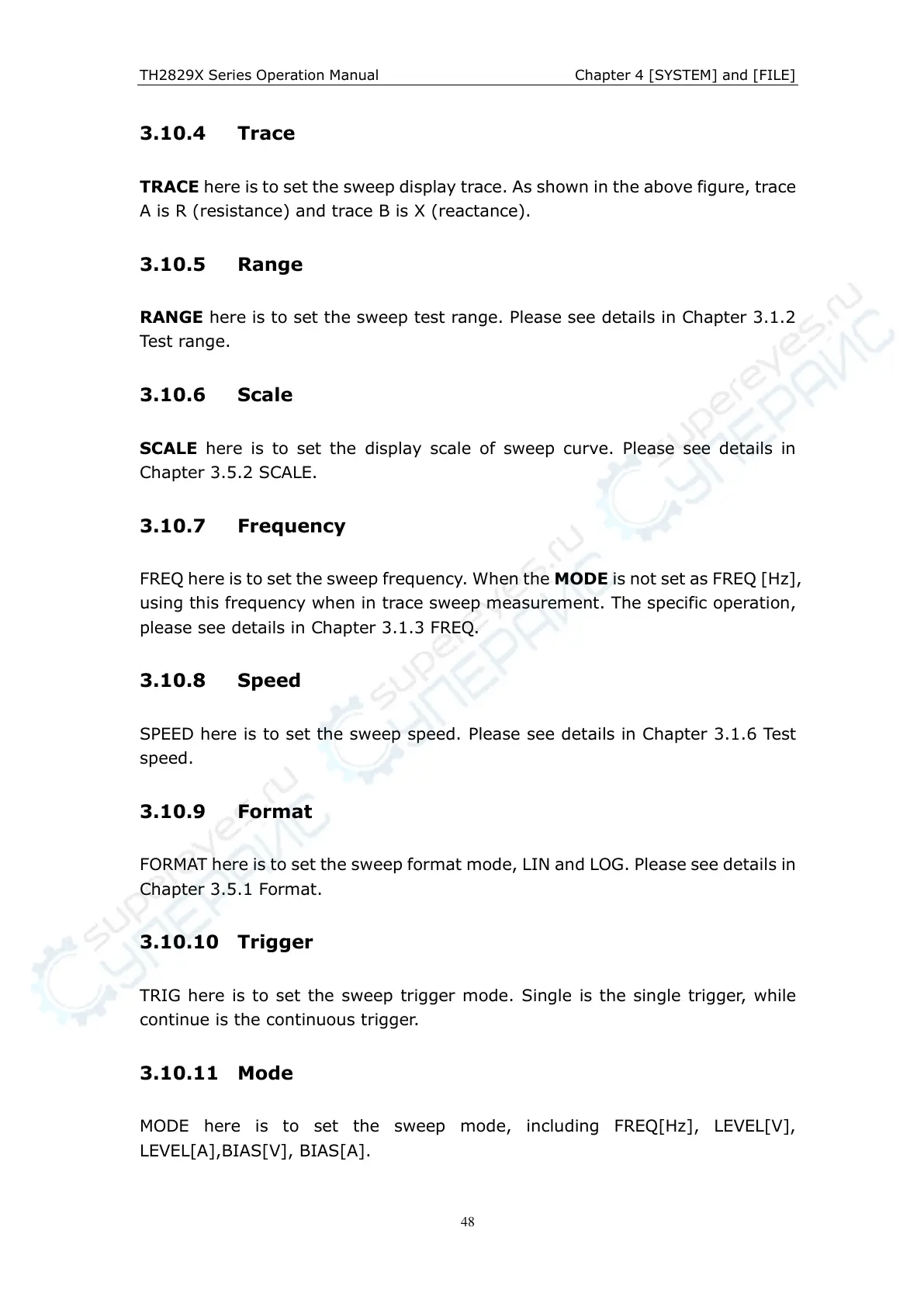

TH2829X Series Operation Manual Chapter 4 [SYSTEM] and [FILE]
48
3.10.4 Trace
TRACE here is to set the sweep display trace. As shown in the above figure, trace
A is R (resistance) and trace B is X (reactance).
3.10.5 Range
RANGE here is to set the sweep test range. Please see details in Chapter 3.1.2
Test range.
3.10.6 Scale
SCALE here is to set the display scale of sweep curve. Please see details in
Chapter 3.5.2 SCALE.
3.10.7 Frequency
FREQ here is to set the sweep frequency. When the MODE is not set as FREQ [Hz],
using this frequency when in trace sweep measurement. The specific operation,
please see details in Chapter 3.1.3 FREQ.
3.10.8 Speed
SPEED here is to set the sweep speed. Please see details in Chapter 3.1.6 Test
speed.
3.10.9 Format
FORMAT here is to set the sweep format mode, LIN and LOG. Please see details in
Chapter 3.5.1 Format.
3.10.10 Trigger
TRIG here is to set the sweep trigger mode. Single is the single trigger, while
continue is the continuous trigger.
3.10.11 Mode
MODE here is to set the sweep mode, including FREQ[Hz], LEVEL[V],
LEVEL[A],BIAS[V], BIAS[A].
