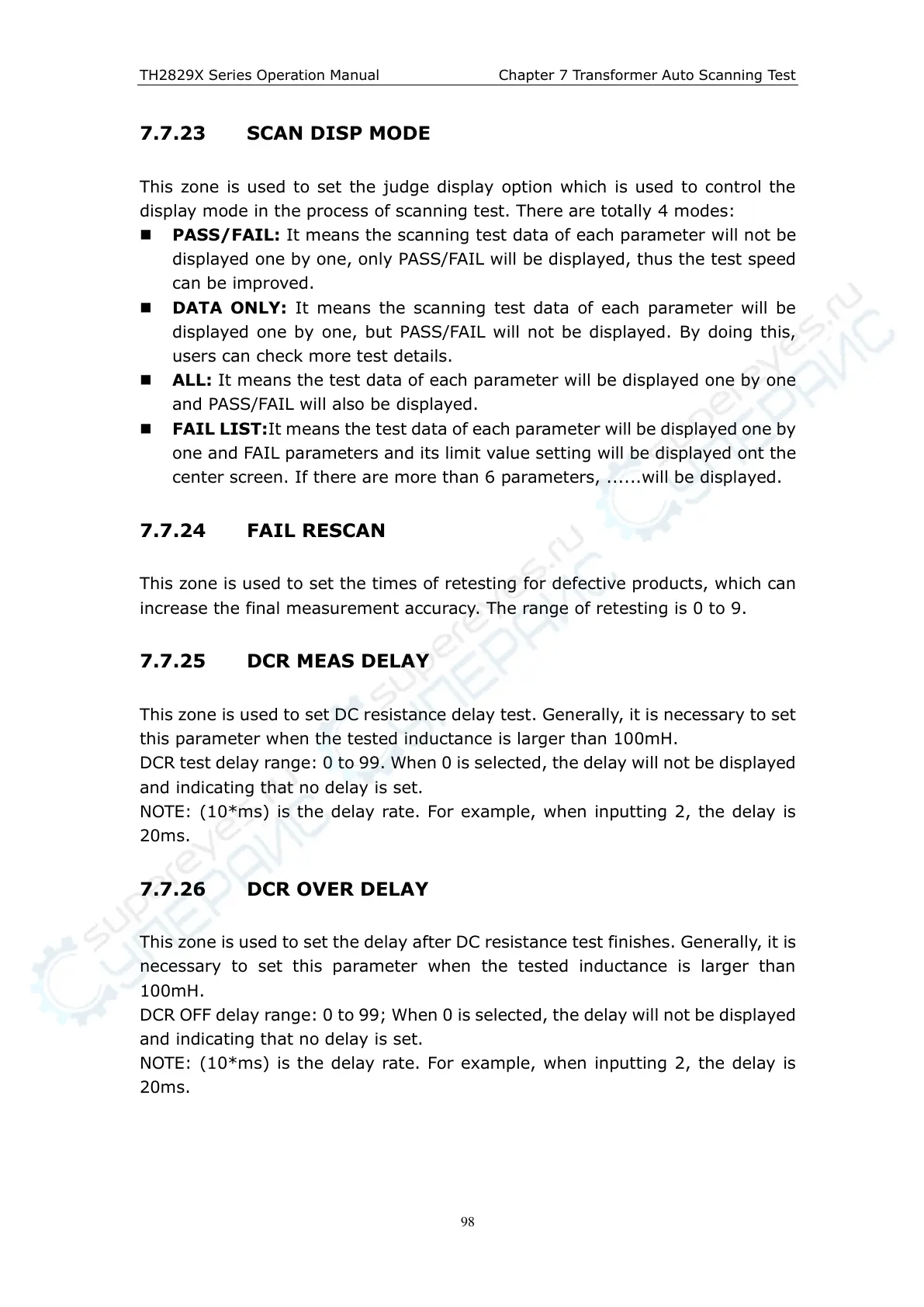

7.7.23 SCAN DISP MODE
This zone is used to set the judge display option which is used to control the
display mode in the process of scanning test. There are totally 4 modes:
 PASS/FAIL: It means the scanning test data of each parameter will not be
displayed one by one, only PASS/FAIL will be displayed, thus the test speed
can be improved.
 DATA ONLY: It means the scanning test data of each parameter will be
displayed one by one, but PASS/FAIL will not be displayed. By doing this,
users can check more test details.
 ALL: It means the test data of each parameter will be displayed one by one
and PASS/FAIL will also be displayed.
 FAIL LIST:It means the test data of each parameter will be displayed one by
one and FAIL parameters and its limit value setting will be displayed ont the
center screen. If there are more than 6 parameters, ......will be displayed.
7.7.24 FAIL RESCAN
This zone is used to set the times of retesting for defective products, which can
increase the final measurement accuracy. The range of retesting is 0 to 9.
7.7.25 DCR MEAS DELAY
This zone is used to set DC resistance delay test. Generally, it is necessary to set
this parameter when the tested inductance is larger than 100mH.
DCR test delay range: 0 to 99. When 0 is selected, the delay will not be displayed
and indicating that no delay is set.
NOTE: (10*ms) is the delay rate. For example, when inputting 2, the delay is
20ms.
7.7.26 DCR OVER DELAY
This zone is used to set the delay after DC resistance test finishes. Generally, it is
necessary to set this parameter when the tested inductance is larger than
100mH.
DCR OFF delay range: 0 to 99; When 0 is selected, the delay will not be displayed
and indicating that no delay is set.
NOTE: (10*ms) is the delay rate. For example, when inputting 2, the delay is
20ms.
