TH2829X Series Operation Manual Chapter 6 Transformer Single-machine Test
78

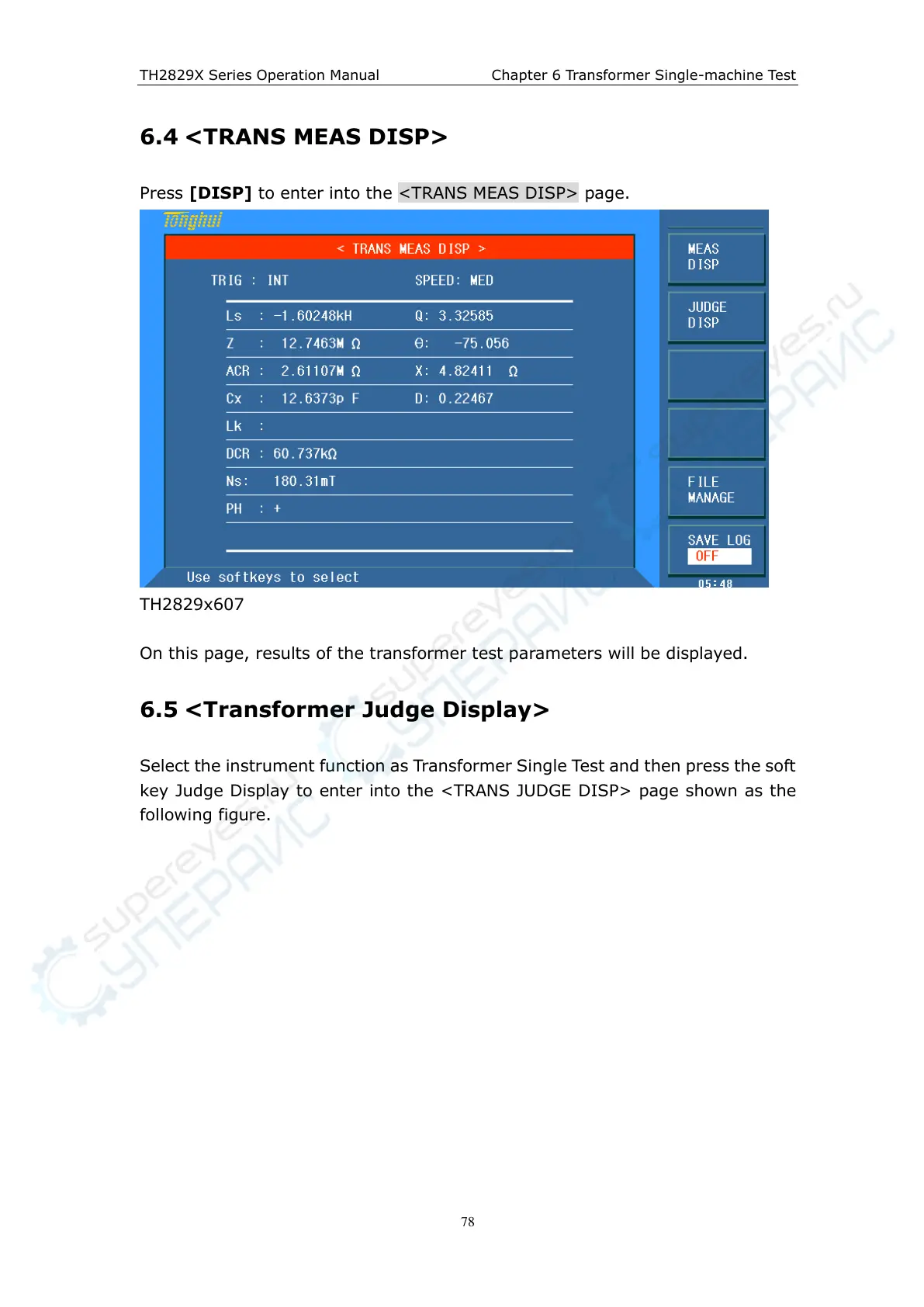

6.4 <TRANS MEAS DISP>
Press [DISP] to enter into the <TRANS MEAS DISP> page.
TH2829x607
On this page, results of the transformer test parameters will be displayed.
6.5 <Transformer Judge Display>
Select the instrument function as Transformer Single Test and then press the soft
key Judge Display to enter into the <TRANS JUDGE DISP> page shown as the
following figure.
