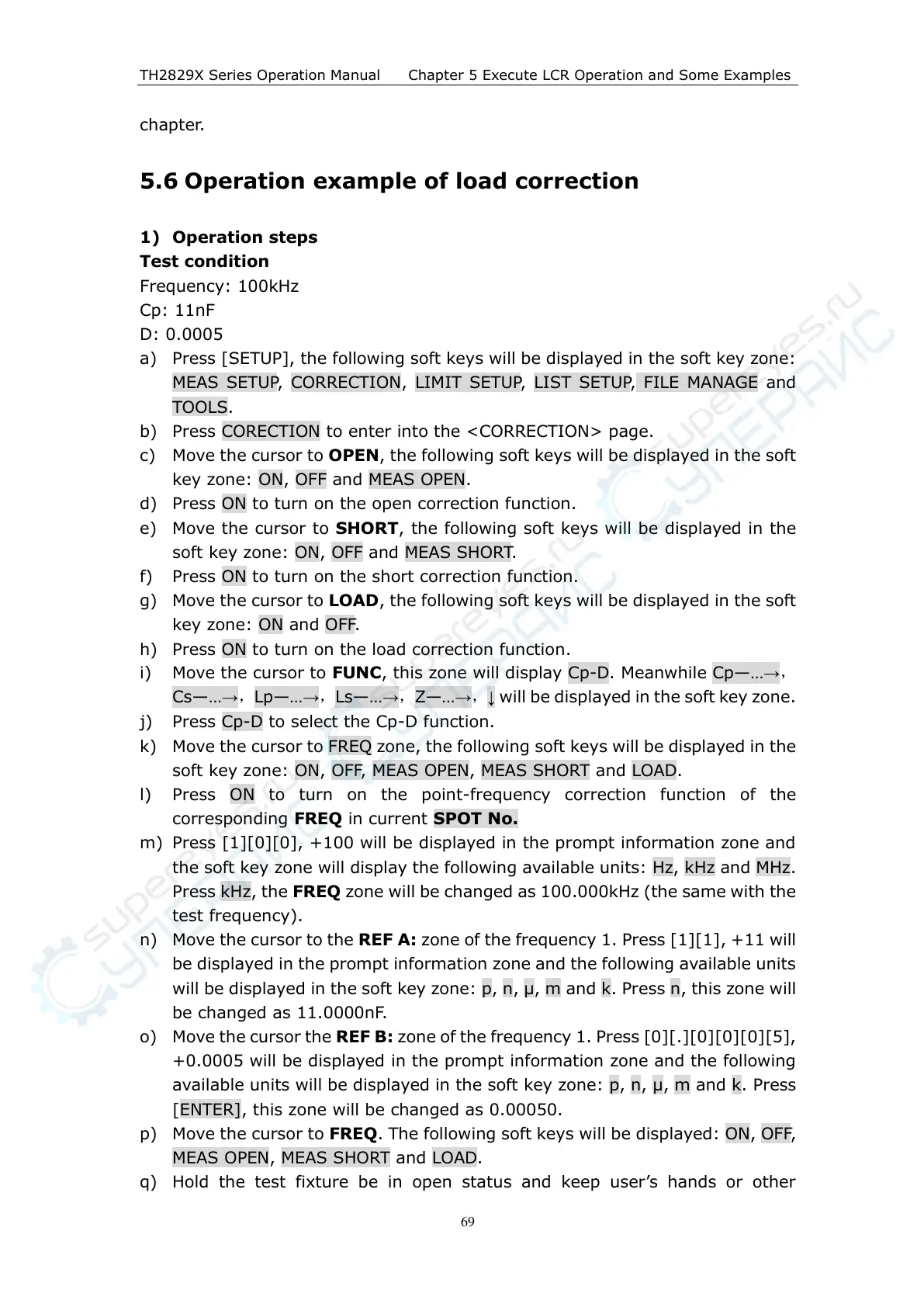

TH2829X Series Operation Manual Chapter 5 Execute LCR Operation and Some Examples
chapter.
5.6 Operation example of load correction
1) Operation steps
Test condition
Frequency: 100kHz
Cp: 11nF
D: 0.0005
a) Press [SETUP], the following soft keys will be displayed in the soft key zone:
MEAS SETUP, CORRECTION, LIMIT SETUP, LIST SETUP, FILE MANAGE and
TOOLS.
b) Press CORECTION to enter into the <CORRECTION> page.
c) Move the cursor to OPEN, the following soft keys will be displayed in the soft
key zone: ON, OFF and MEAS OPEN.
d) Press ON to turn on the open correction function.
e) Move the cursor to SHORT, the following soft keys will be displayed in the
soft key zone: ON, OFF and MEAS SHORT.
f) Press ON to turn on the short correction function.
g) Move the cursor to LOAD, the following soft keys will be displayed in the soft
key zone: ON and OFF.
h) Press ON to turn on the load correction function.
i) Move the cursor to FUNC, this zone will display Cp-D. Meanwhile C p —…→，
Cs—…→，Lp —…→，Ls—…→，Z—…→，↓ will be displayed in the soft key zone.
j) Press Cp-D to select the Cp-D function.
k) Move the cursor to FREQ zone, the following soft keys will be displayed in the
soft key zone: ON , OFF, MEAS OPEN, MEAS SHORT and LOAD.
l) Press ON to turn on the point-frequency correction function of the
corresponding FREQ in current SPOT No.
m) Press [1][0][0], +100 will be displayed in the prompt information zone and
the soft key zone will display the following available units: Hz, kHz and MHz.
Press kHz, the FREQ zone will be changed as 100.000kHz (the same with the
test frequency).
n) Move the cursor to the REF A: zone of the frequency 1. Press [1][1], +11 will
be displayed in the prompt information zone and the following available units
will be displayed in the soft key zone: p, n, μ, m and k. Press n, this zone will
be changed as 11.0000nF.
o) Move the cursor the REF B: zone of the frequency 1. Press [0][.][0][0][0][5],
+0.0005 will be displayed in the prompt information zone and the following
available units will be displayed in the soft key zone: p, n, μ, m and k. Press
[ENTER], this zone will be changed as 0.00050.
p) Move the cursor to FREQ. The following soft keys will be displayed: ON, OFF,
MEAS OPEN, MEAS SHORT and LOAD.
q) Hold the test fixture be in open status and keep user’s hands or other
