TH2829X Series Operation Manual Chapter 7 Transformer Auto Scanning Test
118

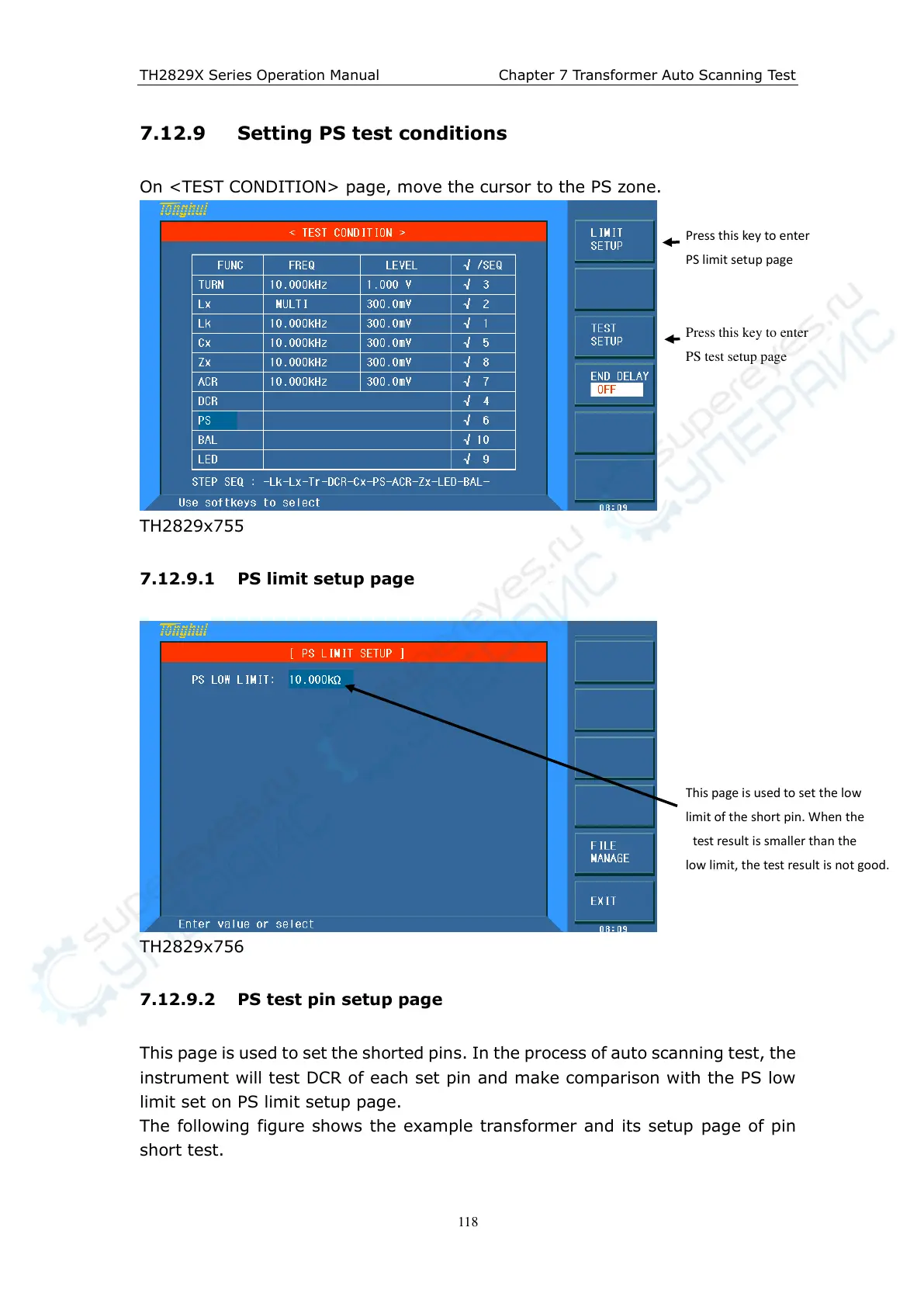

7.12.9 Setting PS test conditions
On <TEST CONDITION> page, move the cursor to the PS zone.
TH2829x755
7.12.9.1 PS limit setup page
TH2829x756
7.12.9.2 PS test pin setup page
This page is used to set the shorted pins. In the process of auto scanning test, the
instrument will test DCR of each set pin and make comparison with the PS low
limit set on PS limit setup page.
The following figure shows the example transformer and its setup page of pin
short test.
Press this key to enter
PS limit setup page
Press this key to enter
PS test setup page
This page is used to set the low
limit of the short pin. When the
test result is smaller than the
low limit, the test result is not good.
