TH2829X Series Operation Manual Chapter 6 Transformer Single-machine Test
76

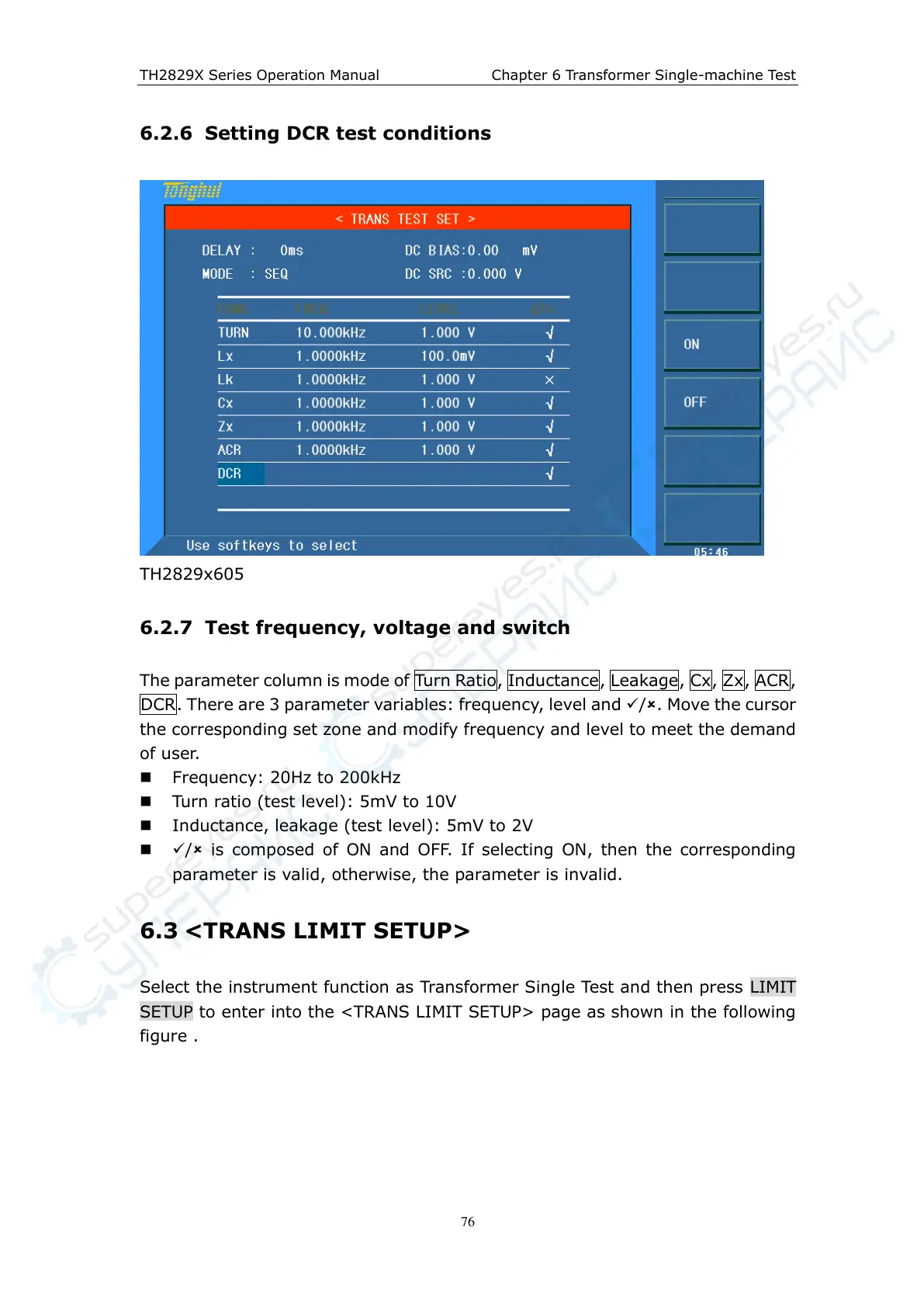

6.2.6 Setting DCR test conditions
TH2829x605
6.2.7 Test frequency, voltage and switch
The parameter column is mode of Turn Ratio, Inductance, Leakage, Cx, Zx, ACR,
DCR. There are 3 parameter variables: frequency, level and /. Move the cursor
the corresponding set zone and modify frequency and level to meet the demand
of user.
 Frequency: 20Hz to 200kHz
 Turn ratio (test level): 5mV to 10V
 Inductance, leakage (test level): 5mV to 2V
 / is composed of ON and OFF. If selecting ON, then the corresponding
parameter is valid, otherwise, the parameter is invalid.
6.3 <TRANS LIMIT SETUP>
Select the instrument function as Transformer Single Test and then press LIMIT
SETUP to enter into the <TRANS LIMIT SETUP> page as shown in the following
figure .
