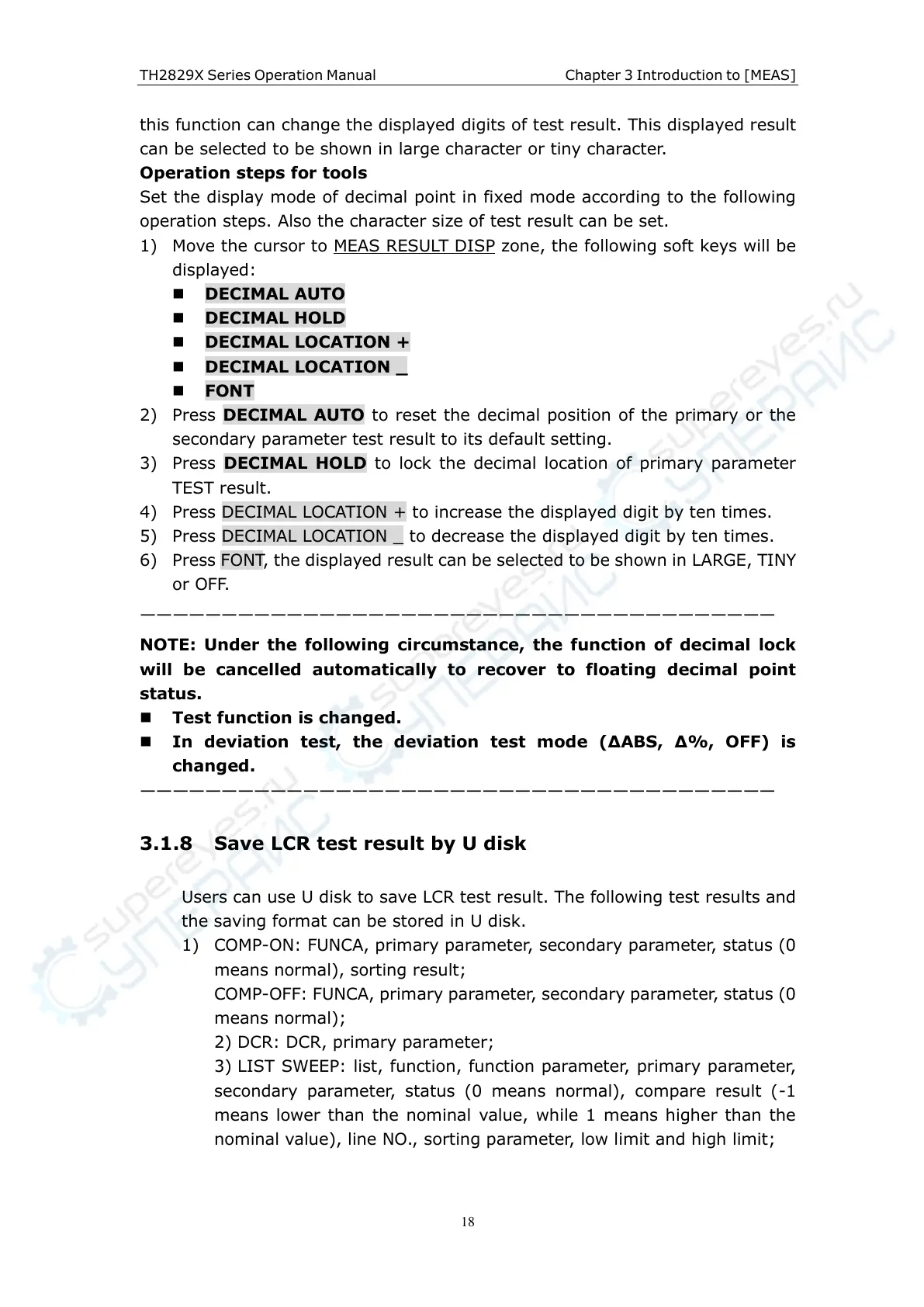

this function can change the displayed digits of test result. This displayed result
can be selected to be shown in large character or tiny character.
Operation steps for tools
Set the display mode of decimal point in fixed mode according to the following
operation steps. Also the character size of test result can be set.
1) Move the cursor to MEAS RESULT DISP zone, the following soft keys will be
displayed:
 DECIMAL AUTO
 DECIMAL HOLD
 DECIMAL LOCATION +
 DECIMAL LOCATION _
 FONT
2) Press DECIMAL AUTO to reset the decimal position of the primary or the
secondary parameter test result to its default setting.
3) Press DECIMAL HOLD to lock the decimal location of primary parameter
TEST result.
4) Press DECIMAL LOCATION + to increase the displayed digit by ten times.
5) Press DECIMAL LOCATION _ to decrease the displayed digit by ten times.
6) Press FONT, the displayed result can be selected to be shown in LARGE, TINY
or OFF.
———————————————————————————————————————
NOTE: Under the following circumstance, the function of decimal lock
will be cancelled automatically to recover to floating decimal point
status.
 Test function is changed.
 In deviation test, the deviation test mode (ΔABS, Δ%, OFF) is
changed.
———————————————————————————————————————
3.1.8 Save LCR test result by U disk
Users can use U disk to save LCR test result. The following test results and
the saving format can be stored in U disk.
1) COMP-ON: FUNCA, primary parameter, secondary parameter, status (0
means normal), sorting result;
COMP-OFF: FUNCA, primary parameter, secondary parameter, status (0
means normal);
2) DCR: DCR, primary parameter;
3) LIST SWEEP: list, function, function parameter, primary parameter,
secondary parameter, status (0 means normal), compare result (-1
means lower than the nominal value, while 1 means higher than the
nominal value), line NO., sorting parameter, low limit and high limit;
