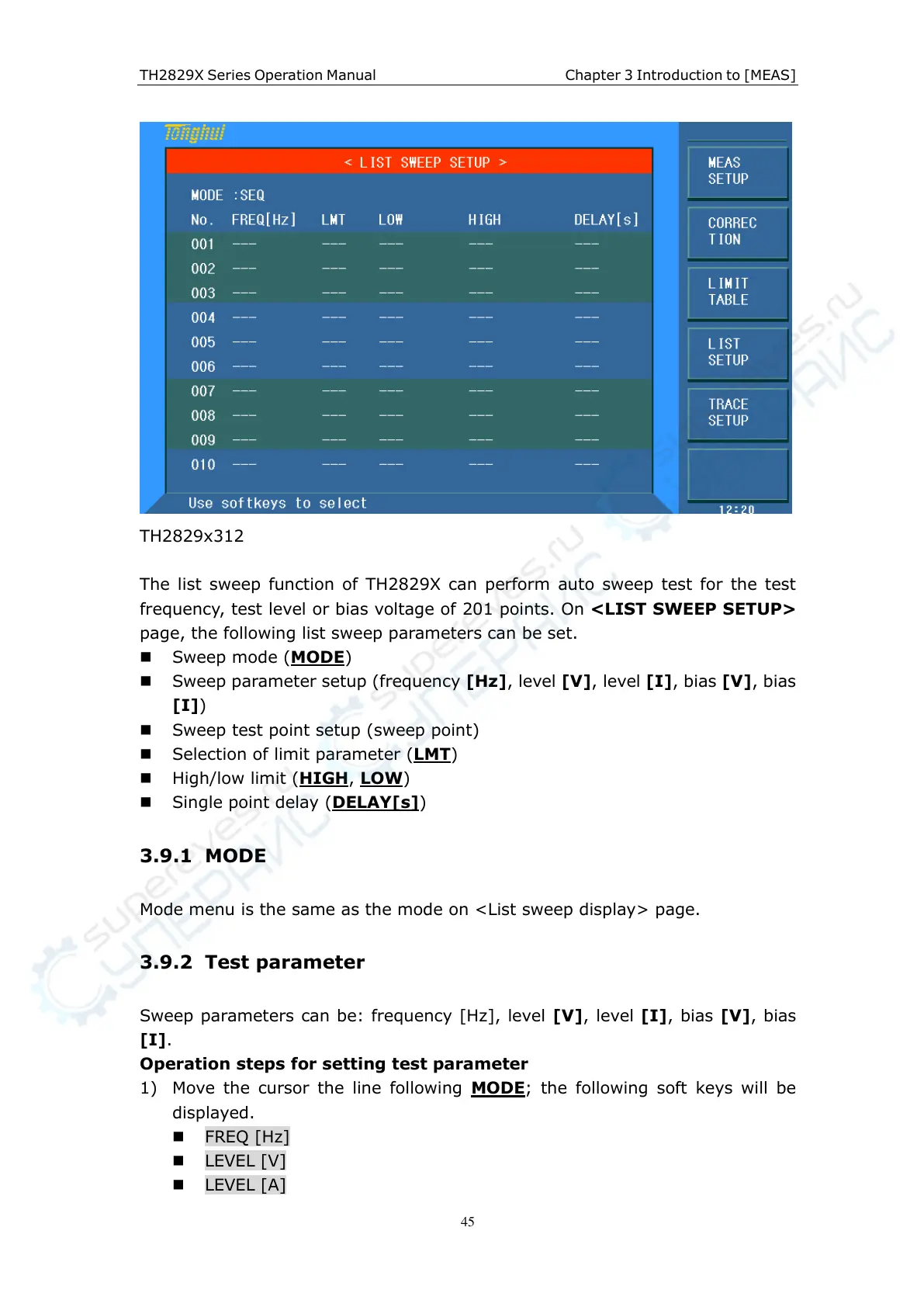

TH2829X Series Operation Manual Chapter 3 Introduction to [MEAS]
45
TH2829x312
The list sweep function of TH2829X can perform auto sweep test for the test
frequency, test level or bias voltage of 201 points. On <LIST SWEEP SETUP>
page, the following list sweep parameters can be set.
 Sweep mode (MODE)
 Sweep parameter setup (frequency [Hz], level [V], level [I], bias [V], bias
[I])
 Sweep test point setup (sweep point)
 Selection of limit parameter (LMT)
 High/low limit (HIGH, LOW)
 Single point delay (DELAY[s])
3.9.1 MODE
Mode menu is the same as the mode on <List sweep display> page.
3.9.2 Test parameter
Sweep parameters can be: frequency [Hz], level [V], level [I], bias [V], bias
[I].
Operation steps for setting test parameter
1) Move the cursor the line following MODE; the following soft keys will be
displayed.
 FREQ [Hz]
 LEVEL [V]
 LEVEL [A]
