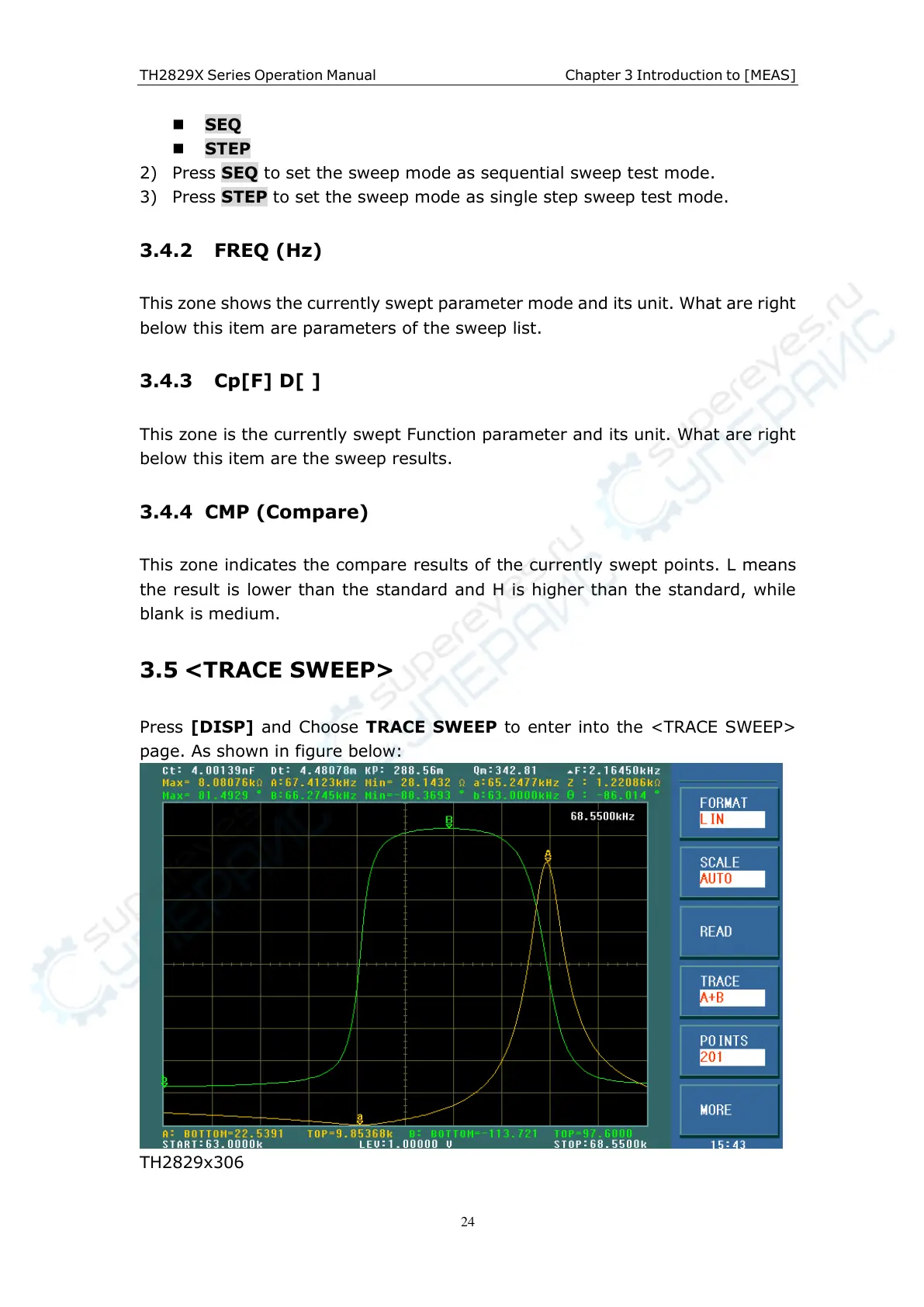

TH2829X Series Operation Manual Chapter 3 Introduction to [MEAS]
SEQ
STEP
2) Press SEQ to set the sweep mode as sequential sweep test mode.
3) Press STEP to set the sweep mode as single step sweep test mode.
3.4.2 FREQ (Hz)
This zone shows the currently swept parameter mode and its unit. What are right
below this item are parameters of the sweep list.
3.4.3 Cp[F] D[ ]
This zone is the currently swept Function parameter and its unit. What are right
below this item are the sweep results.
3.4.4 CMP (Compare)
This zone indicates the compare results of the currently swept points. L means
the result is lower than the standard and H is higher than the standard, while
blank is medium.
3.5 <TRACE SWEEP>
Press [DISP] and Choose TRACE SWEEP to enter into the <TRACE SWEEP>
page. As shown in figure below:
TH2829x306
