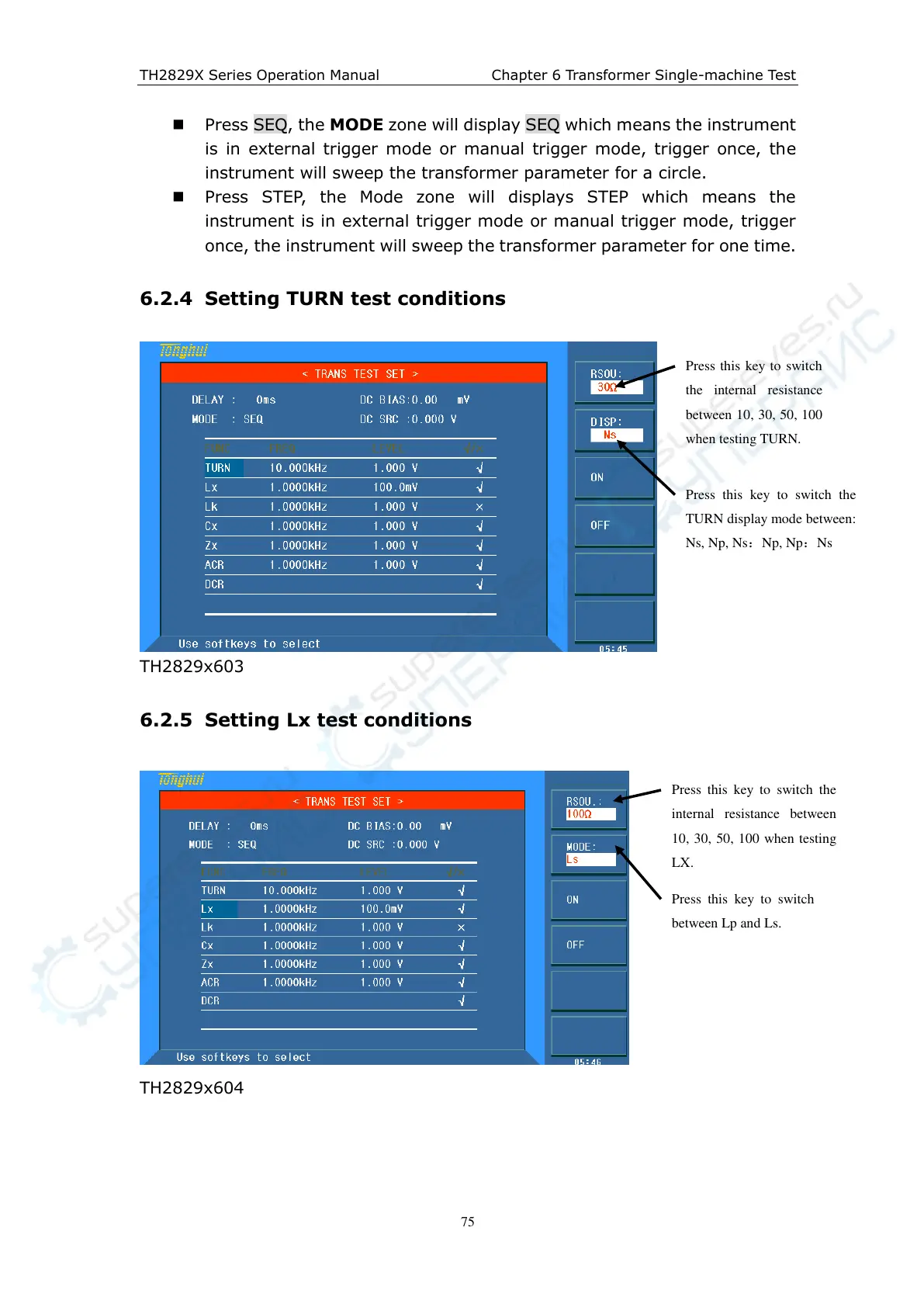

TH2829X Series Operation Manual Chapter 6 Transformer Single-machine Test
75
 Press SEQ, the MODE zone will display SEQ which means the instrument
is in external trigger mode or manual trigger mode, trigger once, the
instrument will sweep the transformer parameter for a circle.
 Press STEP, the Mode zone will displays STEP which means the
instrument is in external trigger mode or manual trigger mode, trigger
once, the instrument will sweep the transformer parameter for one time.
6.2.4 Setting TURN test conditions
TH2829x603
6.2.5 Setting Lx test conditions
TH2829x604
Press this key to switch
the internal resistance
between 10, 30, 50, 100
when testing TURN.
Press this key to switch the
TURN display mode between:
Ns, Np, Ns：Np, N p：Ns
Press this key to switch the
internal resistance between
10, 30, 50, 100 when testing
LX.
Press this key to switch
between Lp and Ls.
